Запчасти Case IH 9390 (6-054) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, FIFTH SHAFT ASSEMBLY (06) - POWER TRAIN

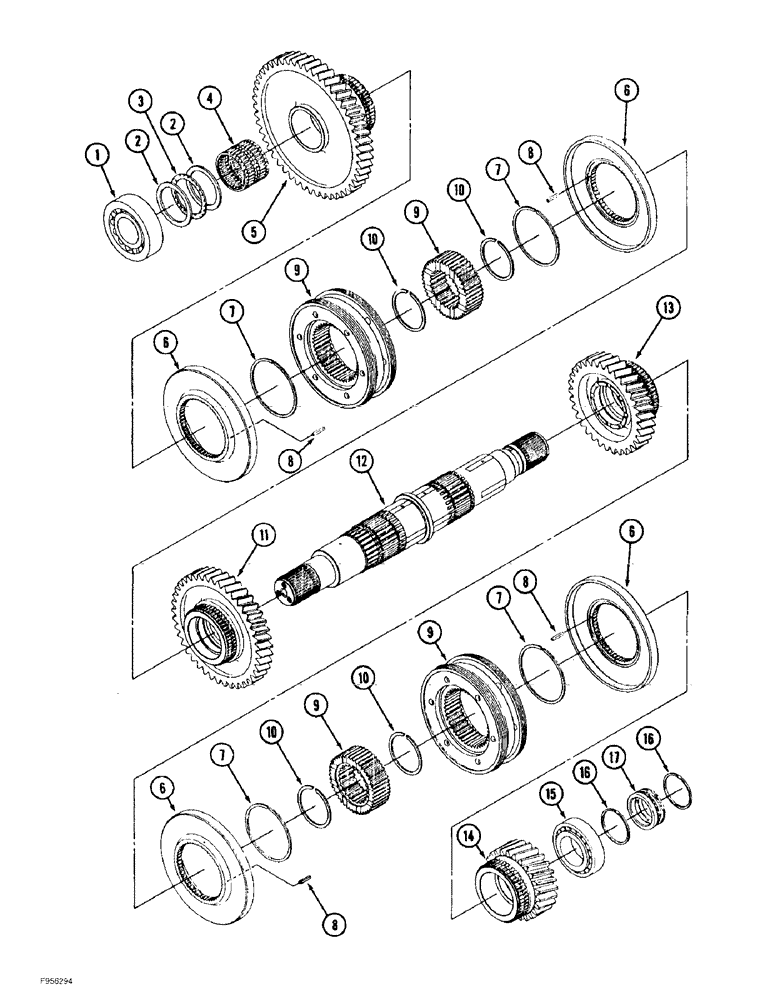

Схема запчастей Case IH 9390 - (6-054) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, FIFTH SHAFT ASSEMBLY (06) - POWER TRAIN
8
7
10
10
4
6
5
8
16
10
6
17
9
1
12
7
9
3
16
2
6
11
8
7
7
13
14
15
2
8
9
10
6
9

Артикул

Название

Примечание

Количество

90-7775T91

TRANSMISSION

ASSEMBLY - mechanical shift, parts list Figures 6-034 - 6-064, Includes: Ref. 1 - 17

1шт.

90-7990T91

SHAFT ASSY.

SHAFT ASSEMBLY - fifth, Includes: Ref. 1 - 17

1шт.

1

33-1708T1

TAPERED BEARING

BEARING - tapered roller

1шт.

2

S5230S00F

BEARING WASHER

WASHER - thrust

2шт.

3

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

BEARING - thrust, replaces S5050S00F bearing

1шт.

4

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

5

90-7902T1

PINION

GEAR - driven, A range

1шт.

6

90-7903T1

DISC

DISK - synchro, range

4шт.

7

90-7904T1

RING, SNAP

RING - retaining

4шт.

8

SM832508

PIN

- spring

16шт.

9

33-1831T1

SYNCHRONIZER

- range

2шт.

10

S5090S00F

RING, SNAP

RING - retaining

4шт.

11

90-7905T1

PINION

GEAR - driven, B range

1шт.

12

90-7906T1

SHAFT

- output

1шт.

13

90-7907T1

PINION

GEAR - driven, C range

1шт.

14

90-7908T1

PINION

GEAR - driven, D range

1шт.

15

33-1676T1

TAPERED BEARING

BEARING - tapered roller, shaft

1шт.

16

S4150S00F

RING

- sealing

2шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

17

33-1695T1

PISTON

- carrier, ring

1шт.

90-7927T92

GASKET KIT

KIT - gasket, transmission, and parts on Figures 6-034 - 6-064, prior to P.I.N. JEE0071001

1шт.

90-8401T91

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 16 and parts on Figures 6-034 - 6-064, P.I.N. JEE0071001 and after

1шт.

Выбрано товаров: 22
