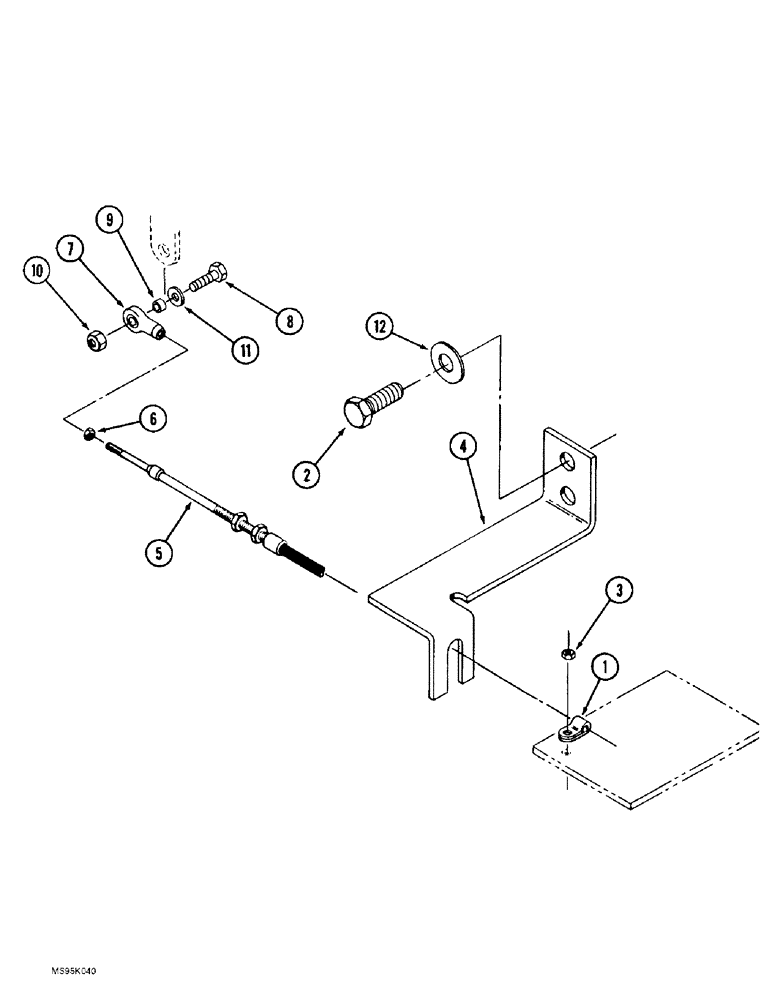

Запчасти Case IH 9380 (3-10) - ENGINE THROTTLE CONTROLS (03) - FUEL SYSTEM

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

2

414-916

BOLT,Hex, 9/16" - 18 x 1", Gr 5

- hex, 9/16 NF x 1 inch

2шт.

3

425-106

NUT,3/8"-16, Cl 5

1шт.

4

90-7643T1

SUPPORT

BRACKET - throttle cable

1шт.

5

60-6425T1

CABLE,3048mm L

- throttle

1шт.

6

225-14210

NUT,#10-32

1шт.

7

H433283

BALL JOINT

JOINT - ball

1шт.

8

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

1шт.

9

90-7749T1

SPACER

Joint

1шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

11

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch

1шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.
