Запчасти Case IH 9380 (2-20) - ENGINE MOUNTS AND ATTACHING PARTS (02) - ENGINE

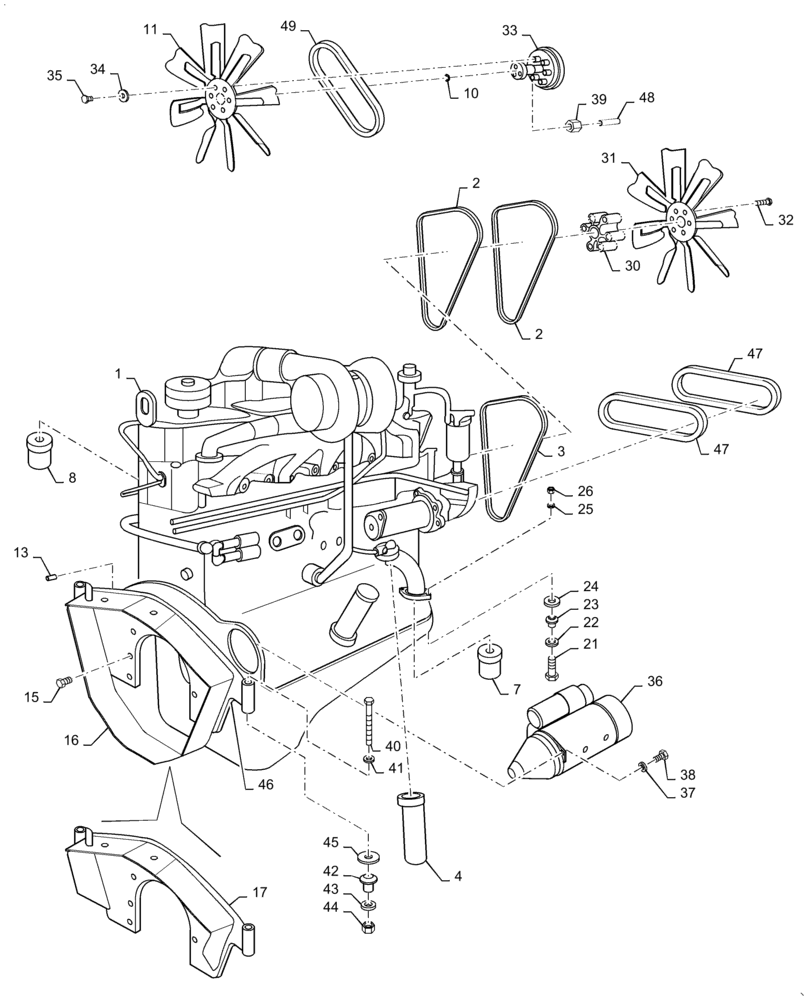

Схема запчастей Case IH 9380 - (2-20) - ENGINE MOUNTS AND ATTACHING PARTS (02) - ENGINE
34
15
35
40
49
30
24
1
36
4
26
22
41
38
43
2
31
2
42
17
45
11
47
47
3
13
37
21
33
16
32
7
39
8
10
25
44
23
46
48

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 360 horsepower, 9370, prior to P.I.N. JEE0036501, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 360 horsepower, 9370, P.I.N. JEE0036501 and after, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 400 horsepower, 9380, prior to P.I.N. JEE0036501, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 400 horsepower, 9380, P.I.N. JEE0036501 and after, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - N14-A425, 425 horsepower, 9390, see your Cummins engine dealer for service parts, Includes: Ref. 2 - 9

1шт.

2

90-8264T1

SET OF BELTS,0.88" W x 44.00" L

V-Belt, Set of 2 0.88" W x 44.00" L

1шт.

3

90-2383T1

BELT,43.60" L, 6 Ribs

V-type, Water pump 43.60" L, 6 Ribs

1шт.

90-2383t1 water pump belt is a 6 rib belt and has an effective length of 43.6". cam djo 5/30/01

1шт.

4

90-7101T1

FILTER, ENGINE OIL

FILTER - engine oil

1шт.

7

A77544

FILTER

- water conditioning, precharge, service

1шт.

8

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

9

A77424

FILLER CAP

CAP - oil fill tube, not shown

1шт.

10

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Seal clutch

1шт.

11

236987A1

FAN

- engine, used on 9390

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - dowel, 9/16 x 1-1/8 inch, serviced through Cummins

2шт.

15

428-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch, grade 8

9шт.

16

90-7553T1

SUPPORT

HOUSING - flywheel, replaced by 229656A3 mount, Ref. 17

1шт.

17

229656A3

STANCHION

MOUNT - engine, replaces 90-7553T1 housing, Ref. 16

1шт.

21

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

2шт.

22

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

23

24-231

RUBBER MOUNTING

INSULATOR - engine mount, rubber, front

2шт.

24

51-128

WASHER

- flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

25

496-81022

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch, hardened

2шт.

26

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

30

90-3569T1

SPACER

- fan

1шт.

31

90-4238T1

FAN

- engine, prior to P.I.N. JEE0036501, used on 9370 and 9380

1шт.

31

90-8164T1

FAN

- engine, P.I.N. JEE0036501 and after, used on 9370 and 9380

1шт.

32

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

6шт.

33

90-8378T1

CLUTCH

- fan, used on 9390

1шт.

Only the 9380 QT and the 9390 have the viscus fan and require this clutch. The 9380 Wheeled version does not require it.

1шт.

34

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

Used with 90-8378T1 clutch, Ref. 33 11/32" x 11/16" x 0.89", HDN

6шт.

35

825-1408

NUT,M8, Cl 8

Used with 90-8378T1 clutch, Ref. 33 M8, Cl 8

6шт.

36

107717A1

STARTING MOTOR

STARTER ASSEMBLY - Delco Remy, 12 volt, parts list Figures 4-38 and 4-40

1шт.

37

19-912

WASHER

- flat, 21/32 ID x 1-3/16 OD x 3/16 inch thick

3шт.

38

80-11032

12 PT SCREW,Flg, 5/8"-11 x 2", Gr 8

BOLT - 12 point flange, 5/8 NC x 2 inch, grade 8

3шт.

Three screws are required to install the starter (the parts book is incorrect). The parts book calls out P/N 80-11032, but production used P/N 480-11032 since late 1993. Either screw is acceptable, but P/N 480-11032 is preferred.

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Used with 90-8378T1 clutch, Ref. 33 1/2"-13, G5

6шт.

40

426-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- hex, 3/4 NC x 7-1/2 inch, grade 8

2шт.

41

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

2шт.

42

47-4172

SHOCK ABSORBER

INSULATOR - mount, rubber, rear

2шт.

43

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

2шт.

44

19-85

LOCK NUT

- hex, self-locking, 3/4 inch NC

2шт.

45

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, special

2шт.

46

229656A3

STANCHION

MOUNT - engine

1шт.

47

90-8383T1

V-BELT,3.60 mm W x 1054.00 mm L, 5 Ribs

Alternator, Used on the 9390 3.60 mm W x 1054.00 mm L, 5 Ribs

1шт.

48

90-8396T1

STUD

- fan

6шт.

49

90-8400T1

V-BELT,3.56 mm W x 1438.00 mm L, 12 Ribs

Fan, Used on the 9390 3.56 mm W x 1438.00 mm L, 12 Ribs

1шт.
