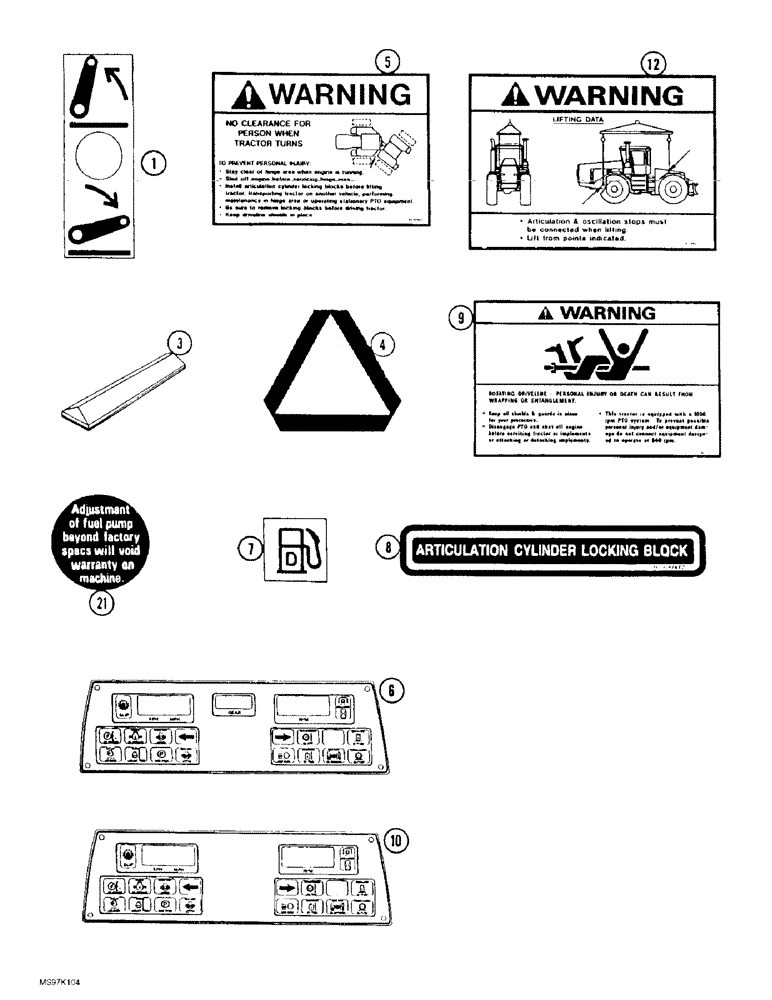

Запчасти Case IH 9380 (9-114) - DECALS (09) - CHASSIS/ATTACHMENTS

1

60-7036T1

DECAL

- three point hitch switch

2шт.

3

1968108C2

TRIM

TRIM - hood sight

1шт.

4

321-4311

DECAL

- SMV emblem, used on plastic surfaces only

1шт.

4

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - SMV emblem, used on painted surfaces only

1шт.

4

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle, replaces 26-1 decal and is replaced by 311860A1 emblem

1шт.

4

311860A1

EMBLEM

- slow moving vehicle, replaces 202013C2 emblem

1шт.

5

2-6876T3

DECAL

- Warning, no clearance for person when tractor turns

1шт.

6

60-7285T1

DECAL

- instrument cluster, Power Shift

1шт.

7

139879A1

DECAL

- diesel fuel

1шт.

8

2-6874T2

DECAL

- center hinge locking bar

1шт.

9

2-7125T2

DECAL

- Warning, rotating driveline

1шт.

10

60-7286T1

DECAL

- instrument cluster, SynchroShift

1шт.

12

2-6935T2

DECAL

- Warning, lifting data

1шт.

NEW TEMPORARY DECAL THAT COMBINES LIFTING INSTR. DECAL AND "OSCILLATION & ARTICULATION LOCK REMOVAL TAG. NEW ONE TO BE PLACED ON OUTSIDE OF CAB DOOR GLASS AND CAN BE REMOVED AFTER SHIPPING. USED ONLY IN EXPORT UNITS. PER F98841

1шт.

13

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8, Not shown

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, not shown

2шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Not shown 1/4", SAE

2шт.

21

A189007

DECAL

- warranty, fuel pump

1шт.
