Запчасти Case IH 9380 (9-106) - CAB AIR CONDITIONING, COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

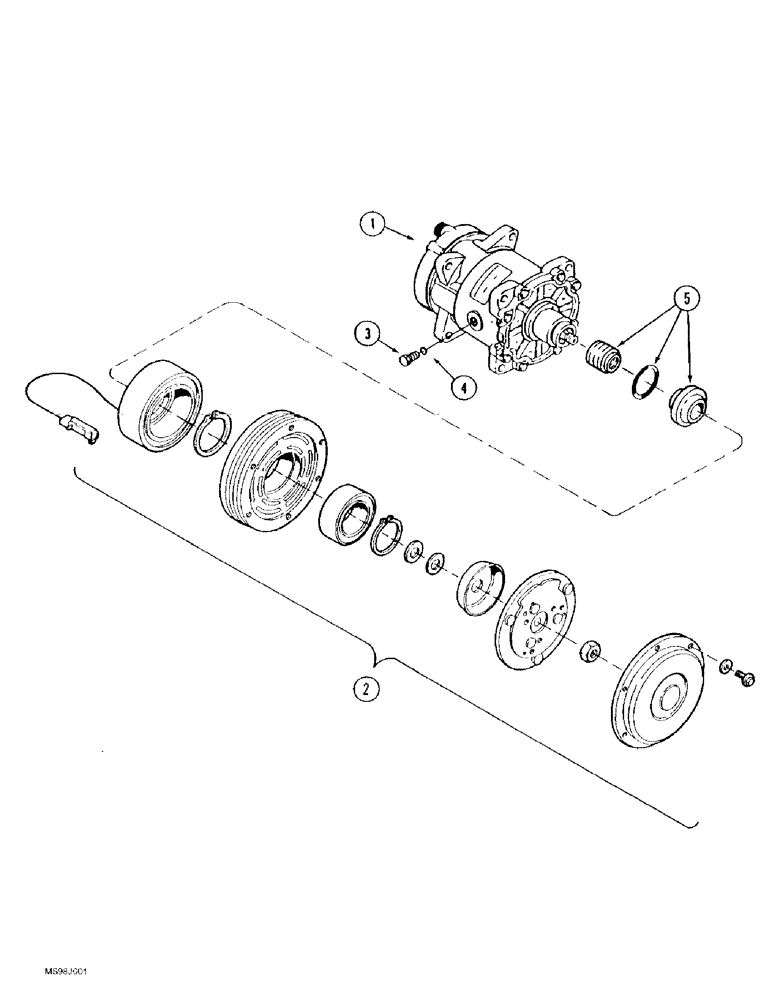

Схема запчастей Case IH 9380 - (9-106) - CAB AIR CONDITIONING, COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS
4
3
2
1
5

Артикул

Название

Примечание

Количество

1

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, Includes: Ref. 2 - 4

1шт.

1

86993462R

REMAN-COMPRESSOR

9370, 9380 both (6/95-8/00), 9390 (1/97-8/00); Reman For New P/N 1999755C2

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

135324A1

CLUTCH

ASSEMBLY - compressor

1шт.

3

A49667

PLUG

- hex

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

5

60-3091T1

SEAL KIT

KIT - seal, compressor, replaced by A49665 kit

1шт.

5

A49665

SEAL KIT

KIT - seal, compressor, replaces 60-3091T1 kit

1шт.

Выбрано товаров: 12
