Запчасти Case IH 9380 (9-096) - AIR CONDITIONER AND HEATER MODULE ASSEMBLY, INTERNAL COMPONENTS (09) - CHASSIS/ATTACHMENTS

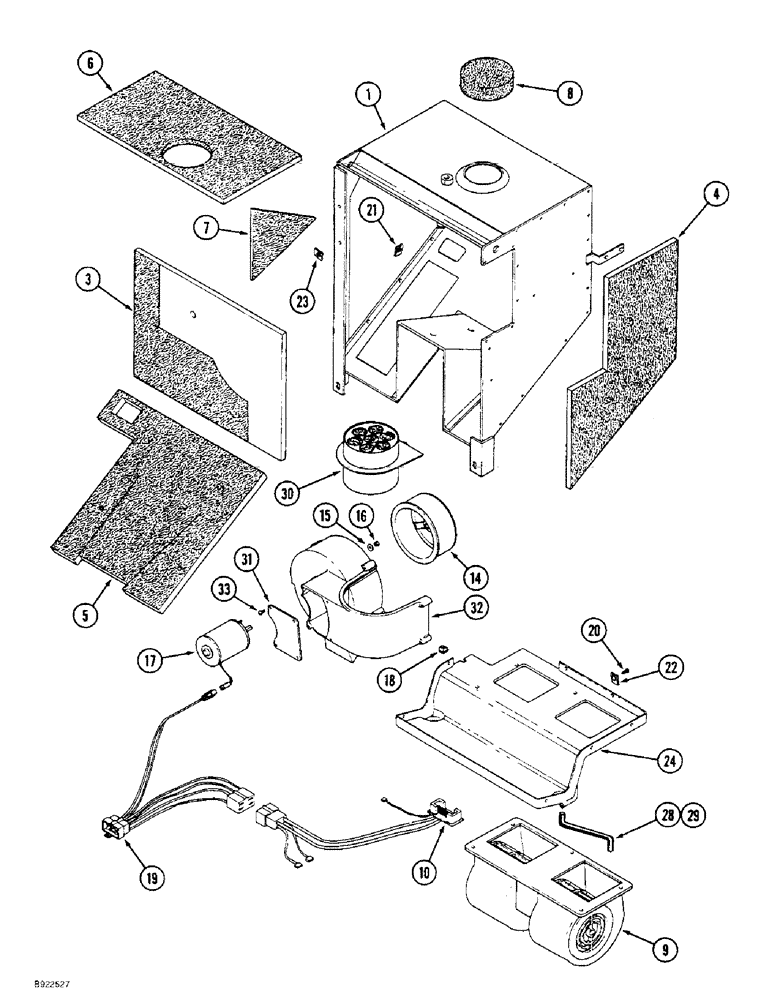

Схема запчастей Case IH 9380 - (9-096) - AIR CONDITIONER AND HEATER MODULE ASSEMBLY, INTERNAL COMPONENTS (09) - CHASSIS/ATTACHMENTS
4
6
30
1
21
15
10
32
16
8
33
19
18
7
22
5
14
29
24
17
3
31
9
28
23
20

Артикул

Название

Примечание

Количество

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, Includes: Ref. 1 - 33 and parts on page 9-95

1шт.

1

60-6692T3

HOUSING

- module

1шт.

3

60-6696T2

FOAM

PAD - insulating foam, front

1шт.

4

60-6697T1

FOAM

PAD - insulating foam, right-hand

1шт.

5

60-6699T2

FOAM

PAD - insulating foam, lower

1шт.

6

60-6701T1

FOAM

PAD - insulating foam, upper

1шт.

7

60-6702T2

FOAM

PAD - insulating foam, filler

2шт.

8

60-6328T1

FOAM

FILTER - foam, air inlet

1шт.

9

1977564C2

BLOWER

- cab, component parts not serviced separately

1шт.

9

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

9

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

10

1343938C2

RESISTOR

- blower, cab air

1шт.

14

60-6852T2

BLOWER

FAN - blower, pressurizer, includes motor shaft retaining clip

1шт.

15

495-31022

WASHER,#10

2шт.

16

9411893

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF

2шт.

17

60-6851T1

ELECTRIC MOTOR

MOTOR - fan, blower, with 5/16 inch diameter shaft

1шт.

17

60-6851T1R

REMAN-ELECTRIC MOTOR

9370, 9380, 9390

1шт.

17

60-6851T1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

18

31-2475

GROMMET

- harness protection

1шт.

19

60-6707T1

HARNESS

- blower motor

1шт.

20

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - self-tapping, hex washer head, No. 10-16 x 3/4 inch

25шт.

21

60-6708T1

NUT

NUT - U-type, special

11шт.

22

1975905C1

NUT

- special, U-speed, No. 10-16

5шт.

23

19-6157

STEEL SHEET NUT

NUT - U-type, No. 10

10шт.

24

60-6673T1

TRAP

PAN - condensation drip

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE - drip, 203 mm (8 inch) long, cut from 87769CX bulk hose, see below

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - drip, 305 mm (12 inch) long, cut from 87769CX bulk hose, see below

1шт.

30

60-6694T2

PRECLEANER

- air inlet

1шт.

31

60-6695T1

LARGE PLATE

PLATE - support, blower motor

1шт.

32

60-6693T1

HOUSING

- blower fan

1шт.

33

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head, self-tapping, special, No. 10 NS x 3/4 inch

13шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 7 (9/32) ID x 27432 mm (1080 inch) long

1шт.

Выбрано товаров: 32
