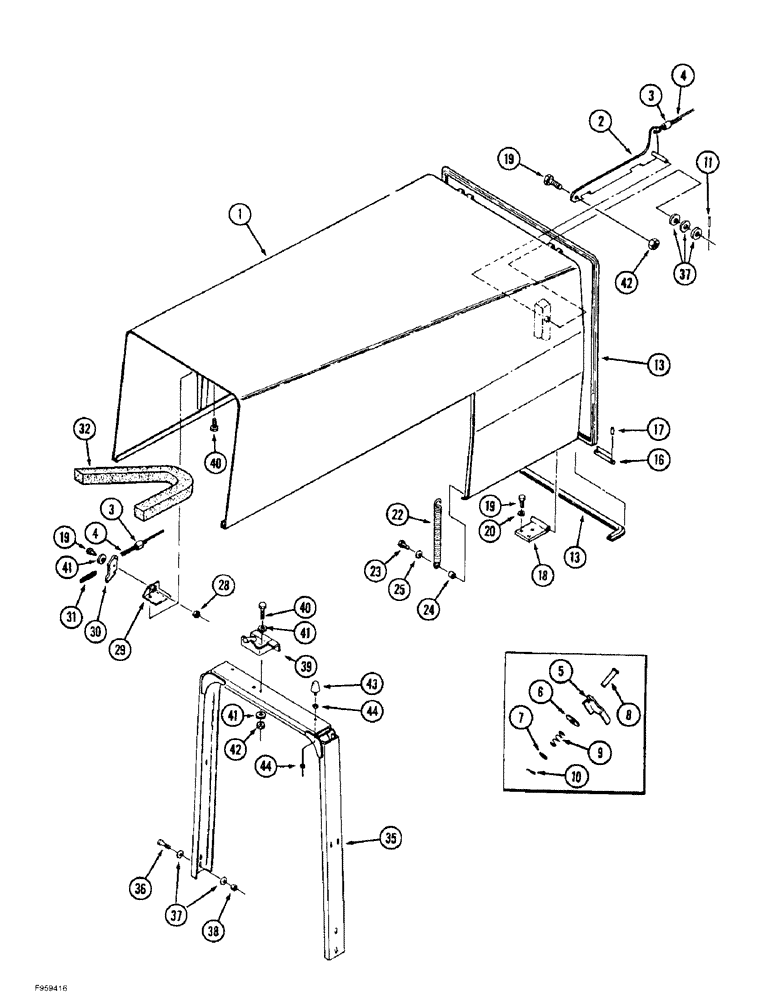

Запчасти Case IH 9380 (9-030) - HOOD AND SUPPORT, PRIOR TO P.I.N. JEE0037932, 9370 AND 9380 ONLY (09) - CHASSIS/ATTACHMENTS

1

70-6601T1

HOOD ASSY.

HOOD - engine

1шт.

2

70-6730T1

LATCH

- open hood retaining

1шт.

3

70-5269T1

FERRULE

- wire rope

2шт.

4

70-6732T1

ROPE

- wire, 4521 mm (178 inch) long, cut from 70-5252T1 bulk rope, see below

1шт.

5

70-6308T1

LATCH

- hood

1шт.

6

19-6154

WASHER

- flat, nylon, 3/8 x 1-1/4 x 1/16 inch

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

9

60-6422T1

SPRING

- compression

1шт.

10

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

13

70-5263T1

SEAL

- foam, 1092 mm (43 inch) long, cut from 70-5259T1X bulk seal, see below

5шт.

16

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hood hinge

2шт.

17

9415236

PIN, ROLL

PIN - 1/8 x 3/4 inch

4шт.

18

70-4263T1

HINGE

- hood

2шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

6шт.

22

19-6261

SPRING

- assist, hood opening

2шт.

23

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch, grade 8

2шт.

24

2-8012T1

SPACER

- spring retainer

2шт.

25

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat

2шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

29

70-6753T1

SUPPORT

MOUNT - latch

1шт.

30

70-6178T1

LATCH

- release

1шт.

31

A163012

SPRING

- latch return

1шт.

32

60-6705T1

FOAM

SEAL - foam, rear hood

1шт.

35

70-6501T2

SUPPORT

- hood

1шт.

36

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

37

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

11шт.

38

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

39

70-6755T1

SUPPORT

BRACKET - hood retaining latch

1шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

41

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

5шт.

42

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

3шт.

43

N7673

BUMPER

- rubber

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

35-1983T91

PACKAGE,SERVICE

KIT - hood latch, Includes: Ref. 3, 28, 30, 33, 34, 39, 45, 46, 47, 48 and 49 on Figure 9-032, parts (3) 426-524 bolt, (5) 425-105 nut and (2) 19-6113 bushing, not shown

1шт.

Hood latch kit 35-1983T91 can be used to convert hood latch mechanisms from 9270 and 9280 tractors P.I.N. JEE0033501 and after and the 9370 and 9380 tractors prior to P.I.N. JEE0037932 to the most current style.

1шт.

70-5252T1

ROPE

- wire, bulk, 7620 mm (300 inch) long

1шт.

70-5259T1X

SEAL

- foam, bulk, 3048 mm (120 inch) long

1шт.
