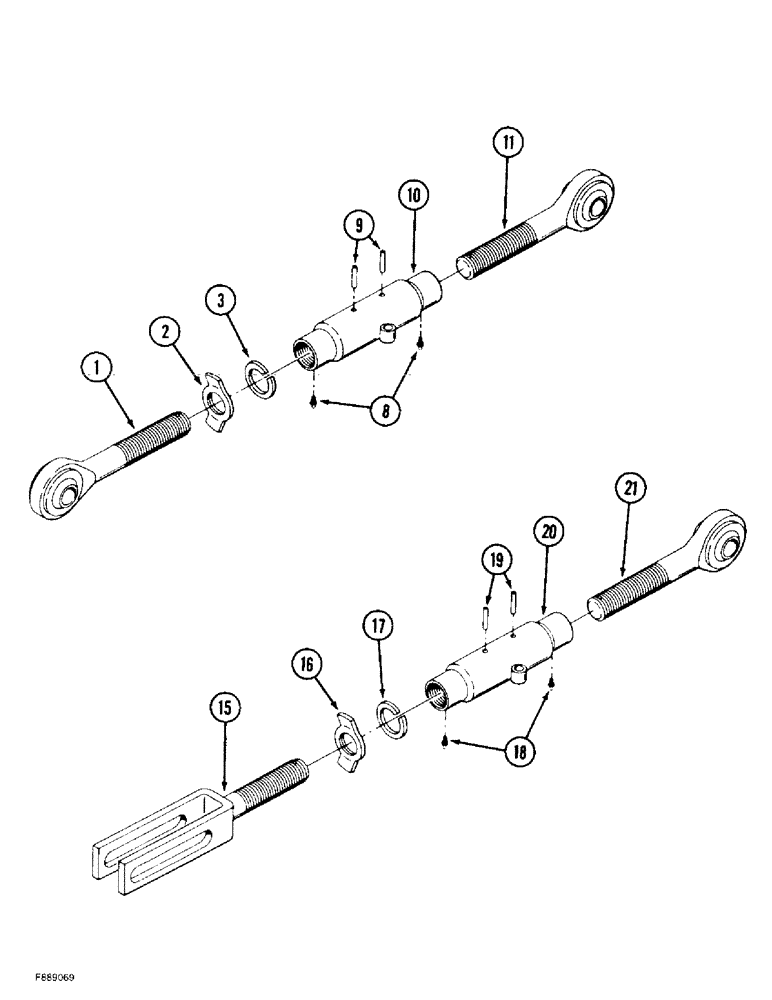

Запчасти Case IH 9380 (9-012) - THREE POINT HITCH LIFT LINKS, PRIOR TO P.I.N. JEE0069308, 9370 AND 9380 ONLY (09) - CHASSIS/ATTACHMENTS

70-6473T91

UPPER LINK

LINK ASSEMBLY - upper, Includes: Ref. 1 - 11

1шт.

1

70-6474T1

ROD, CONNECTING

ROD - ball, right-hand thread

1шт.

2

70-6470T1

NUT, WING

NUT - wing, locking

1шт.

3

19-6098

LOCK WASHER,2"

WASHER - lock, 2 inch

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

9

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

10

70-6475T1

TUBE

- link, upper

1шт.

11

70-6472T1

THREADED ROD

ROD - ball end, left-hand thread

1шт.

70-6468T91

ROD, CONNECTING

LINK ASSEMBLY - lift, Includes: Ref. 15 - 21

2шт.

15

389294A1

UPPER LINK

CLEVIS - lift link, right-hand thread (NSS)

1шт.

16

70-6470T1

NUT, WING

NUT - wing, locking

1шт.

17

19-6098

LOCK WASHER,2"

WASHER - lock, 2 inch

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

19

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

20

70-6471T1

TUBE

- link, lift

1шт.

21

70-6472T1

THREADED ROD

ROD - ball end, left-hand thread

1шт.
