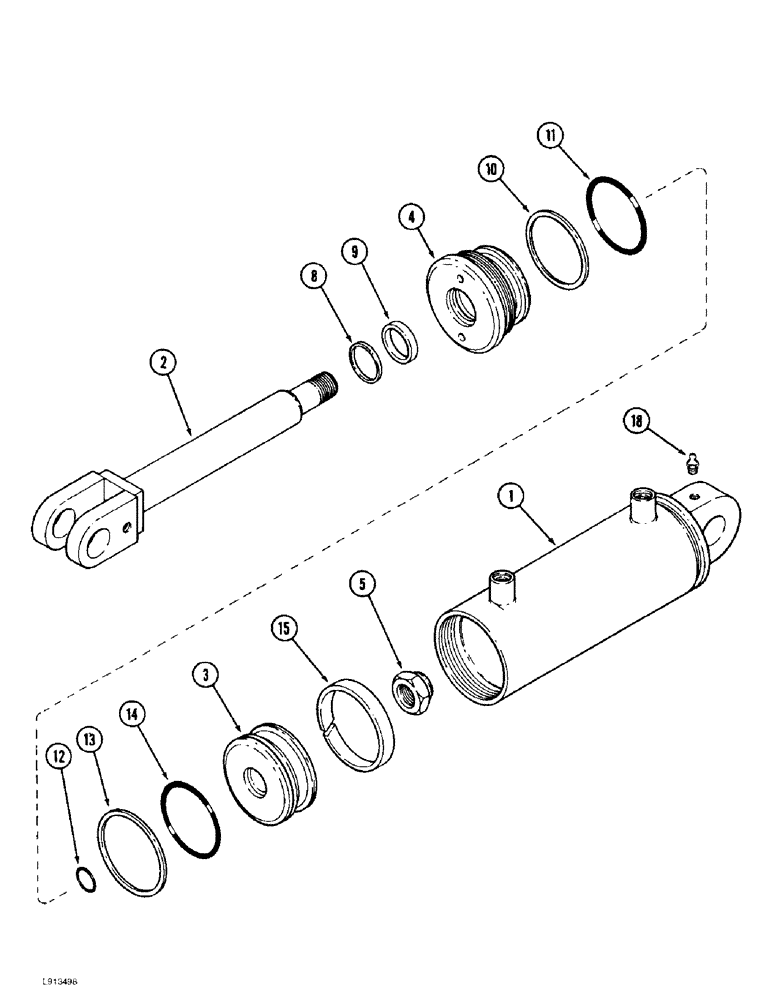

Запчасти Case IH 9380 (8-092) - HITCH CYLINDER ASSEMBLY (08) - HYDRAULICS

50-3410T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hitch, Includes: Ref. 1 - 18

2шт.

1

50-3411T1

JACK BODY

TUBE - cylinder

1шт.

2

50-3408T1

PISTON ROD

ROD - piston

1шт.

3

1-9815T1

PISTON

- cylinder

1шт.

4

50-1057T1

CYLINDER END CAP

GUIDE - rod

1шт.

5

19-5582

LOCK NUT

- hex, self-locking, 1-1/4 inch NF

1шт.

50-3441T1

SEAL KIT

KIT - seal, cylinder repair, no longer available, order component parts separately, Includes: Ref. 9 - 15

1шт.

8

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

9

50-3600T1

SEAL

- U-cup, piston rod, replaces G109228 seal

1шт.

10

1-9853T1

SEALING WASHER,118.19mm ID x 127.48mm OD x 1.93mm Thk

WASHER - backup, O-ring

1шт.

11

238-5350

O-RING,0.21" Thk x 4.6" ID, -350, Cl 5, 75 Duro

- 4-5/8 ID x 3/16 inch wide

1шт.

12

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

13

1-9855T1

RING, PISTON

RING - piston

1шт.

14

1-9856T1

O-RING,4.487" ID x 0.103" Width

- piston

1шт.

15

1-9854T1

RING

- wear, piston

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
