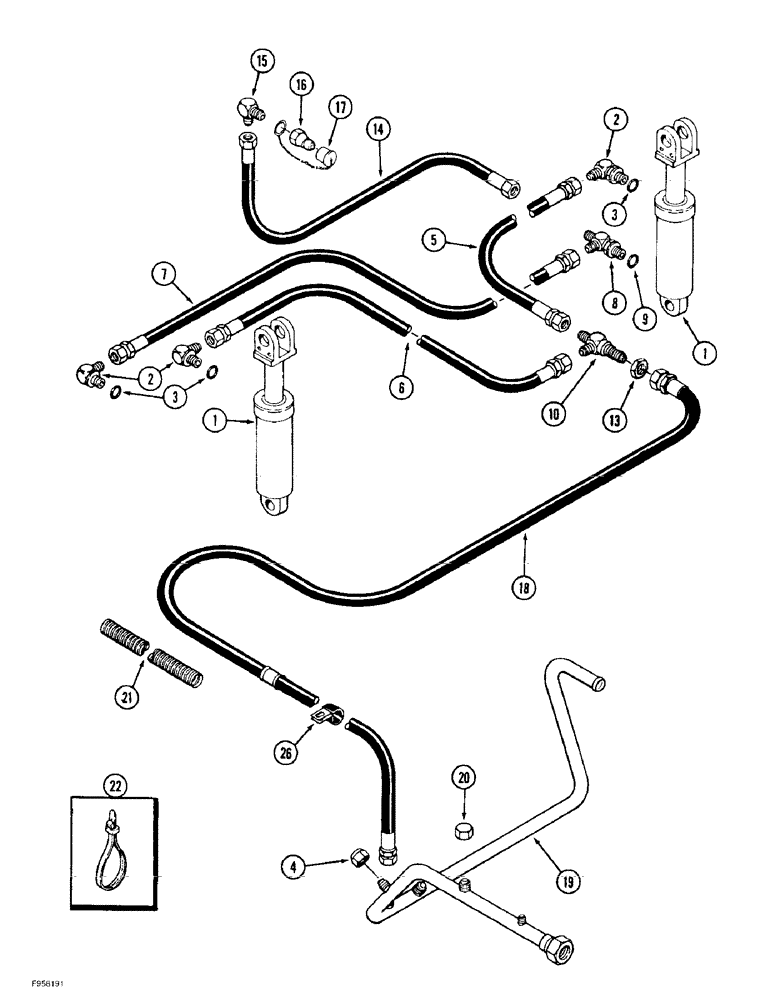

Запчасти Case IH 9380 (8-088) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM (08) - HYDRAULICS

1

50-3410T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, parts list Figure 8-092

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

1шт.

5

31-1440

HOSE

- to cylinder, upper left

1шт.

6

31-2954

HOSE

- to cylinder, upper right

1шт.

7

A166318

HYDRAULIC HOSE,0.50" ID x 68.00", SAE 100R2 Type A per SAE J517

- To cylinder tee, lower right 0.50" ID x 68.00", SAE 100R2 Type A per SAE J517

1шт.

8

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch flare branch x flare x bulkhead flare

1шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

14

18-543

HOSE

- to hydraulic coupler

1шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

16

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

17

1-7142

CAP

- dust, coupler, rubber

1шт.

18

31-2997

HOSE

- to return tube, prior to P.I.N. JEE0069665

1шт.

18

31-3190

HOSE ASSY.

HOSE - to return tube, P.I.N. JEE0069665 and after

1шт.

19

50-3416T2

HYD TUBE

TUBE - check valve to hydraulic tank

1шт.

20

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

1шт.

21

50-3087T1

CONDUIT

- hose protective, 1499 mm (59 inch) long, cut from S119717X bulk conduit, see below

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

3шт.

26

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.
