Запчасти Case IH 9380 (8-082) - 3-POINT HITCH HYD., ELECTRONIC CONTROLLED VALVE SYS., PRIOR TO P.I.N. JEE0069665, 9370 & 9380 ONLY (08) - HYDRAULICS

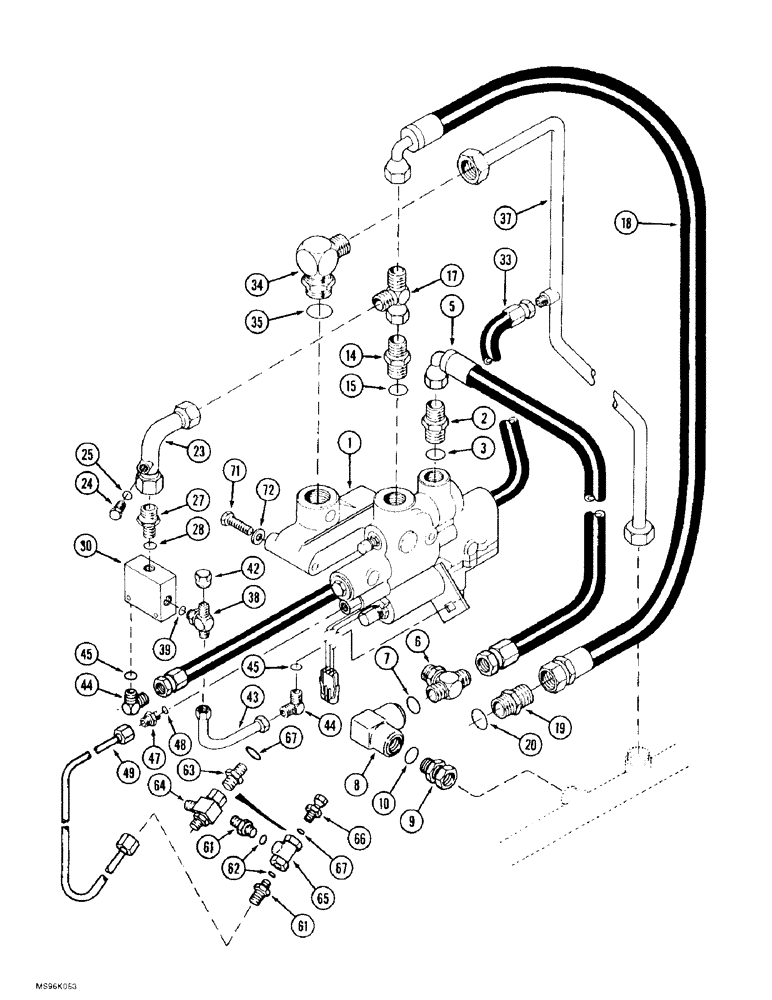

Схема запчастей Case IH 9380 - (8-082) - 3-POINT HITCH HYD., ELECTRONIC CONTROLLED VALVE SYS., PRIOR TO P.I.N. JEE0069665, 9370 & 9380 ONLY (08) - HYDRAULICS
2
48
47
49
17
63
34
66
45
37
19
64
1
28
24
61
45
39
38
44
43
72
42
8
18
25
20
67
6
71
9
35
44
62
23
10
33
67
7
3
30
65
15
5
14
27
61

Артикул

Название

Примечание

Количество

1

50-3321T91

VALVE

ASSEMBLY - control, parts list Figure 8-094

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

31-2965

HOSE

- hitch valve to cylinder lift line

1шт.

48

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

6

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

50-2291T91

VALVE

ASSEMBLY - relief, parts list Figure 8-098

1шт.

9

31-2964

TEE

ADAPTER - straight, 7/8-14 inch thread, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel

1шт.

18

31-2847

HOSE

- hitch control valve to hydraulic control valve

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

50-3186T1

HYD TUBE

TUBE - hitch control valve to pressure reducing valve

1шт.

24

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 25 Hex Hd, 9/16"-18 ORB

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, replaces 218-5360 adapter, Includes: Ref. 28

1шт.

30

50-3293T91

VALVE

ASSEMBLY - pressure reducing, parts list Figure 8-098

1шт.

33

31-1668

HOSE

- 356 mm (14 inch) long, pressure reducing valve to drain tube

1шт.

34

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

50-3195T1

HYD TUBE

TUBE - hitch control valve to drain tube

1шт.

38

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare, Includes: Ref. 39

1шт.

42

218-754

CAP,37 Degree, 9/16"-18

hex 37º, 9/16"-18

1шт.

43

50-3111T1

HYD TUBE

TUBE - pressure reducing valve to hitch control valve

1шт.

44

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 45

2шт.

47

218-5318

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 1/2-20 inch O-ring boss, Includes: Ref. 48

1шт.

49

50-3204T2

HYD TUBE

TUBE - hitch control valve to shuttle valve

1шт.

61

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 62

2шт.

63

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, used with 50-3593T1 valve, Ref. 64

1шт.

64

50-3593T1

TEE

VALVE - shuttle, if used

1шт.

65

31-1778

VALVE

- shuttle, if used

1шт.

66

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - straight, 7/16-20 O-ring boss x 1/4 inch female swivel, Includes: Ref. 67

1шт.

71

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

72

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

62

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

67

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 43
