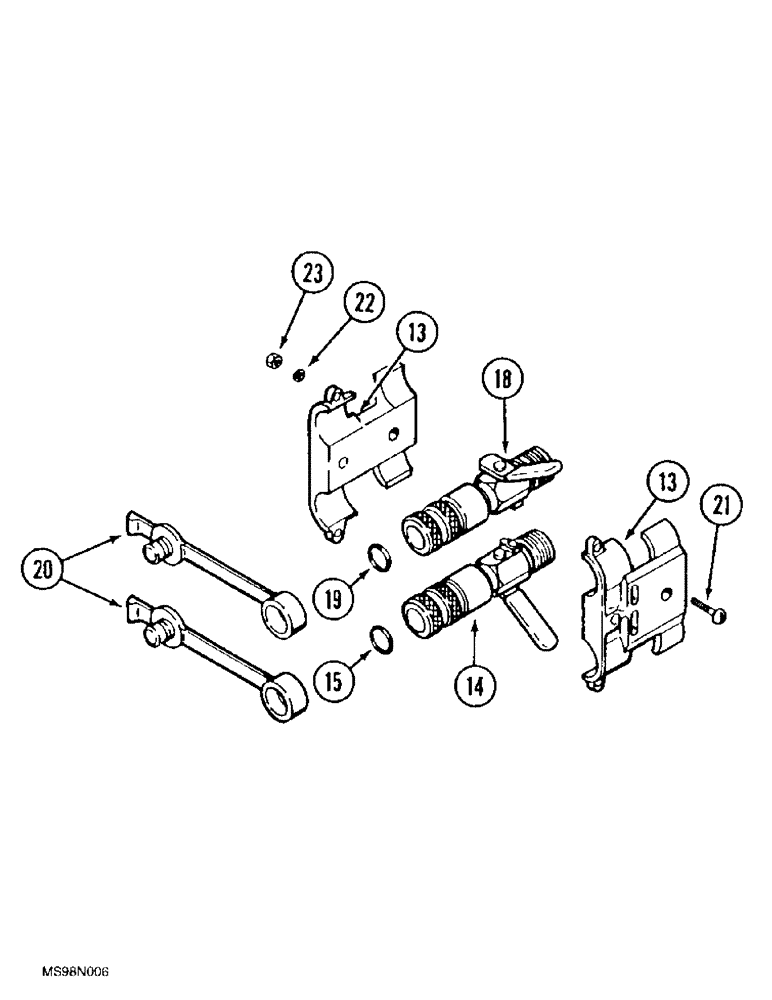

Запчасти Case IH 9380 (8-066) - REMOTE QUICK DISCONNECT COUPLER ASSEMBLY (08) - HYDRAULICS

50-3349T93

CLUTCH ASSEMBLY

COUPLER ASSEMBLY - quick disconnect, Includes: Ref. 13 - 23

3шт.

13

90-7634T1

MOUNTING CLIP

CLAMP - coupler, bottom

2шт.

14

50-1459T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, Includes: Ref. 15

1шт.

15

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

18

50-1460T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, Includes: Ref. 19

1шт.

19

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

20

50-2267T1

PLUG

CAP - dust, cartridge

2шт.

21

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

22

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

225-14110

NUT,#10-24

2шт.
