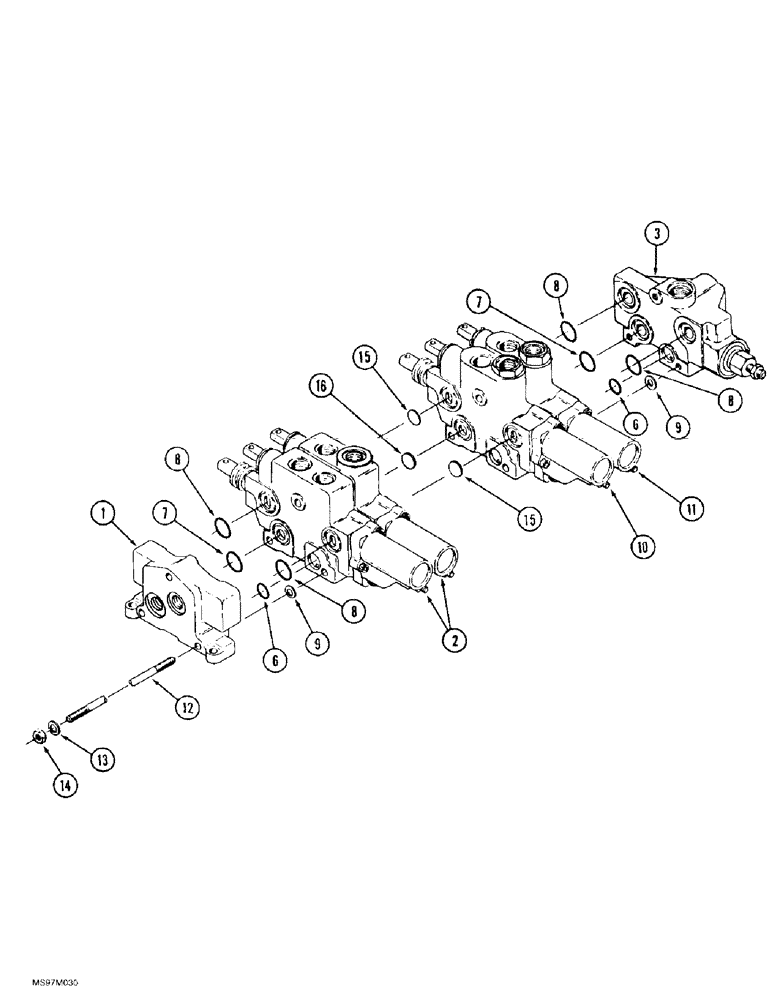

Запчасти Case IH 9380 (8-048) - HYDRAULIC REMOTE VALVE ASSEMBLY, WITH LOAD LOCKS (08) - HYDRAULICS

50-3609T91

VALVE

ASSEMBLY - remote, four spool, High Output, Includes: Ref. 1 - 14

1шт.

Part of the high output hydraulic system, which is standard on 9390 models and optional on 9370 and 9380 models with P.I.N. JEE0071001 and after.

1шт.

1

50-3624T1

COVER

- end

1шт.

2

50-2302T91

ASSEMBLY

SECTION ASSEMBLY - valve, float, parts list Figures 8-050 and 8-052

2шт.

3

50-3623T91

VALVE

COVER ASSEMBLY - inlet, parts list Figure 8-068

1шт.

2-3792T1

SEAL KIT

- seal, valve section, Includes: 238-6210 Qty 1, 238-6214 Qty 1, 238-5119 Qty 2, D77566 Qty 3, and 238-5008 Qty 4

1шт.

6

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

7

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

8

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

3шт.

10

50-3625T91

VALVE BLOCK

SECTION ASSEMBLY - "B" port, load locks and float, parts list Figures 8-062 and 8-064

1шт.

11

50-3563T91

HYD VALVE SECTION

SECTION ASSEMBLY - "B" port, load locks and float, parts list Figures 8-058 and 8-060

2шт.

12

50-3630T1

STUD

- 3/8 NC x 11-3/4 inch, four spool remote

3шт.

13

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

50-3626T1

SPACER

- plug

2шт.

Part of the high output hydraulic system, which is standard on 9390 models and optional on 9370 and 9380 models with P.I.N. JEE0071001 and after.

1шт.

16

50-3627T1

SPACER

- plug

1шт.

Part of the high output hydraulic system, which is standard on 9390 models and optional on 9370 and 9380 models with P.I.N. JEE0071001 and after.

1шт.
