Запчасти Case IH 9380 (8-036) - HIGH OUTPUT HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

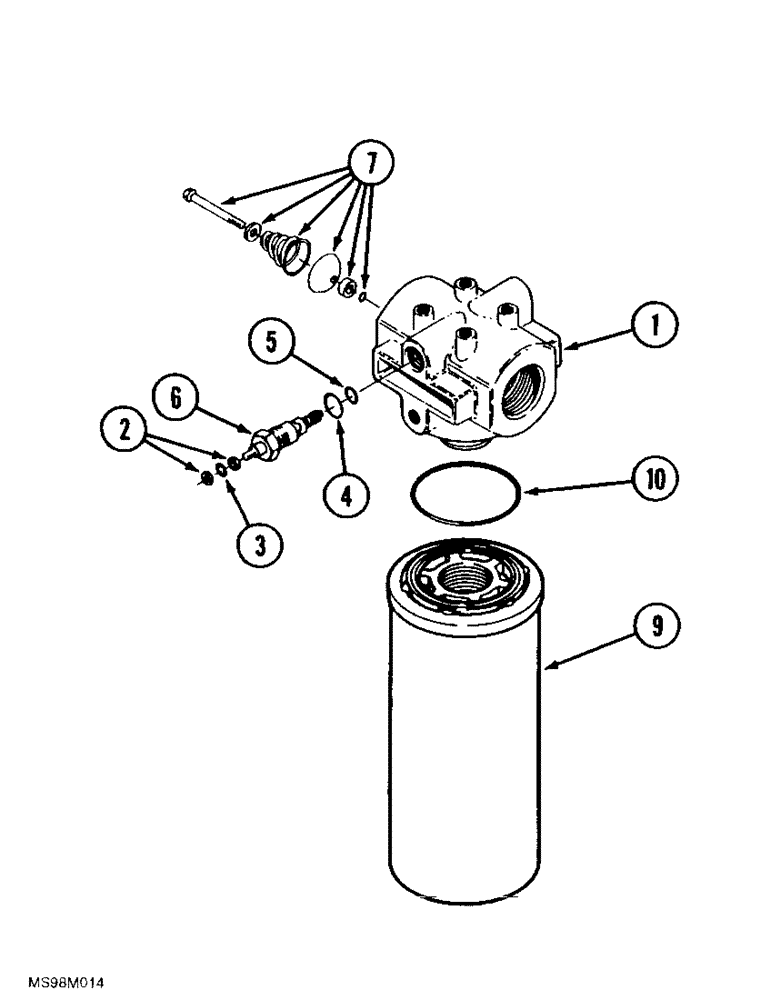

Схема запчастей Case IH 9380 - (8-036) - HIGH OUTPUT HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS
2
7
9
10
5
6
3
1
4

Артикул

Название

Примечание

Количество

D131293

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 10

1шт.

P/N D131293 high output hydraulic filter is standard on 9390 models and optional on 9370 and 9380 models with P.I.N. JEE0071001 and after.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - filter, Includes: Ref. 2 - 7

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 13
