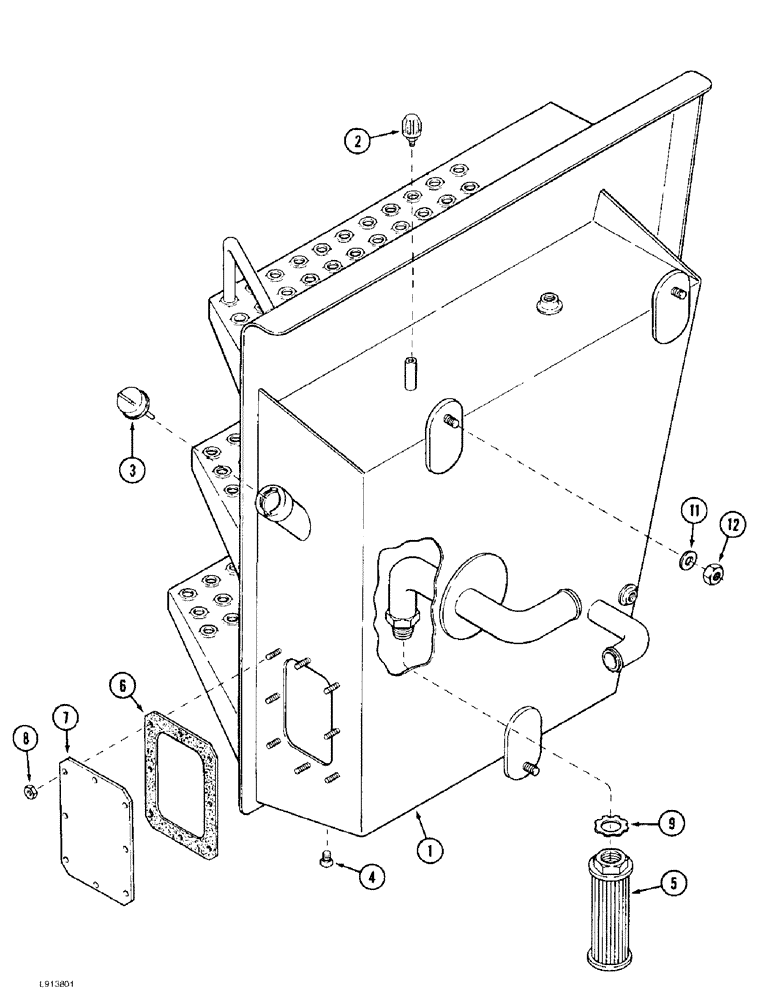

Запчасти Case IH 9380 (8-032) - HYDRAULIC TANK (08) - HYDRAULICS

1

50-3526T2

RESERVOIR

TANK - hydraulic

1шт.

2

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

3

50-3522T1

DIPSTICK

- oil fill, check

1шт.

4

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

5

196955A1

FILTER SCREEN

FILTER - suction, screen, replaces 50-2029T1 filter

1шт.

6

2-1914

GASKET

- cover

1шт.

7

1-4058

PLATE

COVER - plate, hydraulic tank

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

8шт.

9

19-953

LOCK NUT

NUT - slotted lock, 2 inch PT

1шт.

11

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.
