Запчасти Case IH 9380 (8-030) - HYDRAULIC GEAR PUMP ASSEMBLY (08) - HYDRAULICS

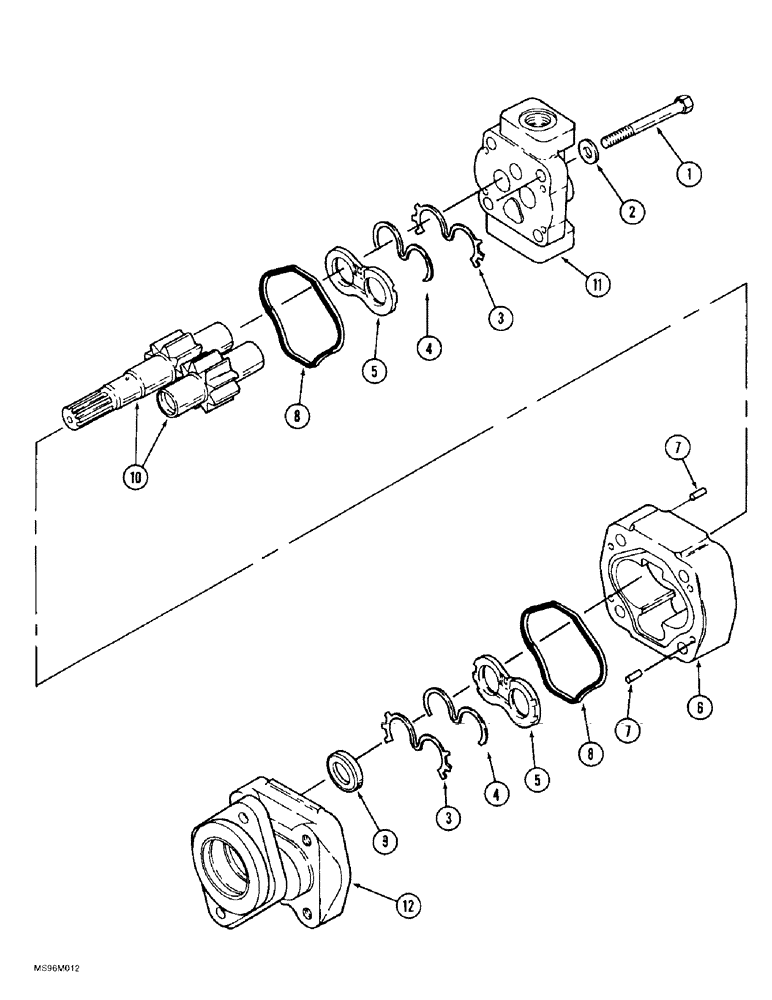

Схема запчастей Case IH 9380 - (8-030) - HYDRAULIC GEAR PUMP ASSEMBLY (08) - HYDRAULICS
3
4
4
9
10
12
5
7
6
5
2
8
7
8
1
3
11

Артикул

Название

Примечание

Количество

50-3589T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear, hydraulic, High Output, Includes: Ref. 1 - 12

1шт.

P/N 50-3589T91 high output assembly is standard on 9390 models and optional on 9370 and 9380 models with P.I.N. JEE0071001 and after.

1шт.

Hydraulic pump 50-3589T91 can be used on units not having high flow systems. If the unit has high flow, you must order 50-3589T91, which is a heavy duty pump for high flow.

1шт.

50-3589T91R

REMAN-HYD PUMP

High Flow Heavy Duty Pump, Std. On 9390, Optional On 9370, & 9380 Both w/P.I.N. JEE0071001 & Aft.

1шт.

50-3589T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

4шт.

2

19-488

WASHER

- flat

4шт.

3

144173A1

SEAL

- channel

2шт.

4

178051A1

BACK-UP RING

SEAL - backup, channel

2шт.

5

N13582

THRUST PLATE

PLATE, THRUST

2шт.

6

1340774C1

HOUSING

- gear

1шт.

7

W16323

DOWEL

PIN - dowel

4шт.

8

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing

2шт.

9

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

- shaft

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - gear, set of two

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - rear, port end

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - front, flanged

1шт.

Выбрано товаров: 17
