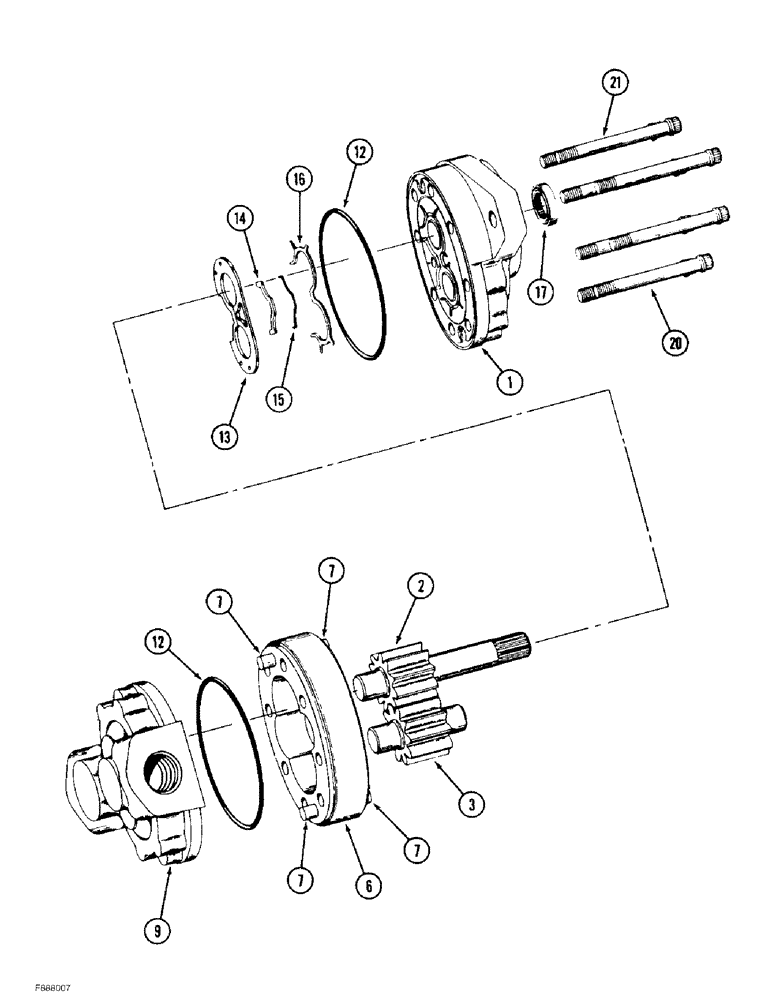

Запчасти Case IH 9380 (8-028[1]) - HYDRAULIC GEAR PUMP ASSEMBLY, P.I.N. JEE0035788 AND AFTER (08) - HYDRAULICS

50-3589T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear, hydraulic (Replaces 50-2662T92), Includes: Ref. 1 - 21

1шт.

50-3589T91R

REMAN-HYD PUMP

9370, 9380, 9390 High Flow Heavy Duty Pump, All w/P.I.N. JEE0035788 & Aft.

1шт.

50-3589T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S301060

LARGE PLATE

COVER - shaft end, front

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - pump, Includes: Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - dowel

4шт.

9

50-2826T1

PLATE

COVER - rear, with bearings

1шт.

50-2834T1

SEAL KIT

KIT - seal, Includes: Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - seal, body

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

17

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- input

1шт.

20

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

21

19-1626

BOLT,Flg, 3/8" - 16 x 4", Gr 8

- 12 point flange, 3/8 NC x 4 inch, grade 8

4шт.
