Запчасти Case IH 9380 (8-018) - HYDRAULIC COUPLER CIRCUIT, P.I.N. JEE0069665 AND AFTER (08) - HYDRAULICS

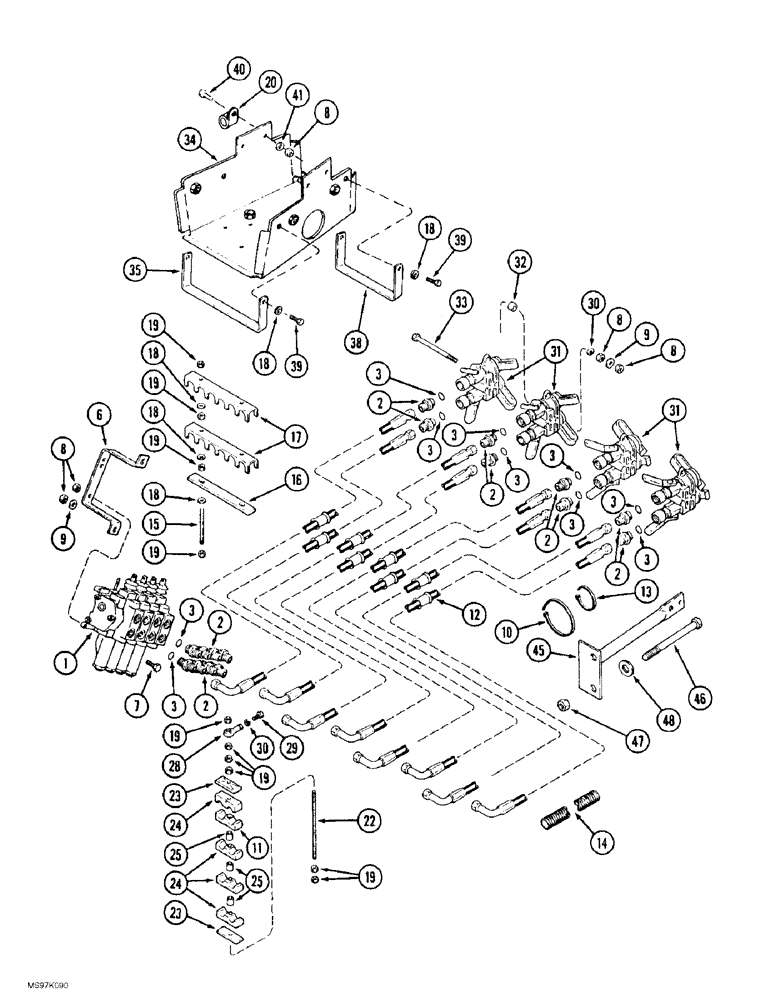

Схема запчастей Case IH 9380 - (8-018) - HYDRAULIC COUPLER CIRCUIT, P.I.N. JEE0069665 AND AFTER (08) - HYDRAULICS
18
9
18
39
31
3
3
39
3
17
46
16
2
24
3
14
20
12
25
19
19
33
22
19
3
45
3
48
18
3
40
15
9
8
18
38
7
32
25
3
3
19
30
2
41
8
35
2
30
23
6
1
2
31
24
2
2
23
13
19
10
11
19
34
19
8
47
8
29
3
18
28

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, without load locks, parts list Figure 8-45, used on the 9370 and 9380

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, with load locks, used on the 9370 and 9380, parts list Figure 8-47

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic, remote, four spool, high output, parts list Figure 8-048

1шт.

The high output hydraulic remote valve, Ref. 1, is standard on 9390 models and optional on 9370 and 9380 models with P.I.N. JEE0071001 and after.

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

8шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

8шт.

6

50-3042T1

SUPPORT

BRACKET - valve mounting

2шт.

7

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

3шт.

8

425-106

NUT,3/8"-16, Cl 5

18шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

8шт.

10

50-2037T1

STRAP

- tie

3шт.

11

50-2551T1

CLAMP

- hose, split, includes both halves

1шт.

12

31-3051

HOSE,15.88mm ID x 135mm L

, Serial Range: --couplers

8шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

14

50-3220T1

CONDUIT

- hose, flex, 1829 mm (72 inch) long, cut from S119717X bulk conduit, see below

8шт.

15

50-3343T1

STUD

- clamp

2шт.

16

258810A1

BAR

- clamping

1шт.

17

258807A1

SUPPORT

BRACKET - hose

2шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

20

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

22

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch

1шт.

23

50-2533T1

PLATE

- clamp support

2шт.

24

50-2534T1

CLAMP

- split, one-half

4шт.

25

19-6249

SPACER

- clamp

3шт.

28

19-6233

BALL JOINT

JOINT - ball

1шт.

29

428-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- hex, 3/8 NF x 1 inch, grade 8

1шт.

30

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

35-1823T91

KIT

- manual three point hitch, without PTO, order from Machinery Price List

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.

31

REF

INSTRUCTION

COUPLER ASSEMBLY - remote, parts list Figure 8-67

4шт.

32

70-2806T1

SPACER

- coupler

4шт.

33

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8, single coupler

4шт.

33

426-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

- hex, 3/8 NC x 5-1/2 inch, grade 8, double coupler

4шт.

34

258463A1

SUPPORT

BRACKET - mounting, remote hose

1шт.

35

258809A1

SUPPORT

BRACKET - mounting, remote hose

1шт.

38

258808A1

SUPPORT

BRACKET - mounting, hose

1шт.

39

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

5шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

45

50-3318T1

SUPPORT

MOUNT - coupler, left-hand, with PTO

1шт.

45

50-3319T1

SUPPORT

MOUNT - coupler, right-hand, with PTO, not shown

1шт.

45

50-3585T1

SUPPORT

MOUNT - coupler, left-hand, without PTO, not shown

1шт.

45

50-3586T1

SUPPORT

MOUNT - coupler, right-hand, without PTO, not shown

1шт.

46

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8, with three point hitch

4шт.

46

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch, without three point hitch

4шт.

46

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, without PTO

4шт.

47

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

48

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

1шт.
