Запчасти Case IH 9380 (8-012) - STANDARD HYDRAULIC SYSTEM, OIL COOLER AND FILTER CIRCUIT, 9370 AND 9380 ONLY (08) - HYDRAULICS

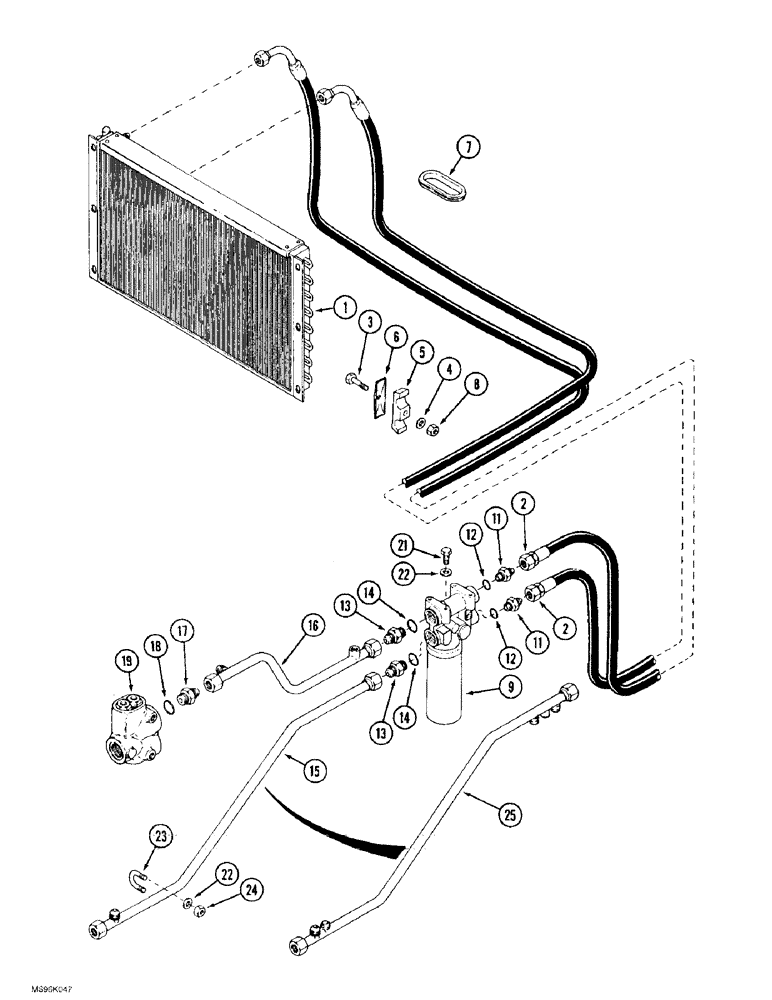

Схема запчастей Case IH 9380 - (8-012) - STANDARD HYDRAULIC SYSTEM, OIL COOLER AND FILTER CIRCUIT, 9370 AND 9380 ONLY (08) - HYDRAULICS
13
22
3
11
12
13
1
17
7
11
21
8
14
14
25
24
6
9
18
4
19
23
5
22
2
2
15
12
16

Артикул

Название

Примечание

Количество

1

90-6708T1

OIL COOLER

COOLER - oil, hydraulic, See Figure 8-040 for mounting

1шт.

2

31-2896

HOSE,15.88mm ID x 2870.2mm L

- 2870 mm (113 inch), Serial Range: long,-filter

2шт.

3

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch, grade 8

1шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

5

50-2534T1

CLAMP

- split, one-half

1шт.

6

50-2533T1

PLATE

- clamp support

1шт.

7

NSS

NOT SOLD SEPARAT

TRIM - protection, cut from 31-1785 bulk trim, see below

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

9

50-3632T91

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-034, replaces 50-3493T91 filter

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 14

2шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

15

50-3581T1

HYD TUBE

TUBE - filter to check valve, replaced by 50-3581T2 tube, Ref. 25

1шт.

16

50-3504T2

HYD TUBE

TUBE - priority, Serial Range: valve-filter

1шт.

17

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

19

50-3155T91

VALVE

ASSEMBLY - priority, parts list Figure 8-038

1шт.

21

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

23

19-153

U-BOLT

- 5/16 inch NC

1шт.

24

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

25

50-3581T2

HYD TUBE

TUBE - filter to check valve, replaces 50-3581T1 tube, Ref. 15

1шт.

31-1785

GROMMET

- edge, bulk, 3048 mm (120 inch) long

1шт.
