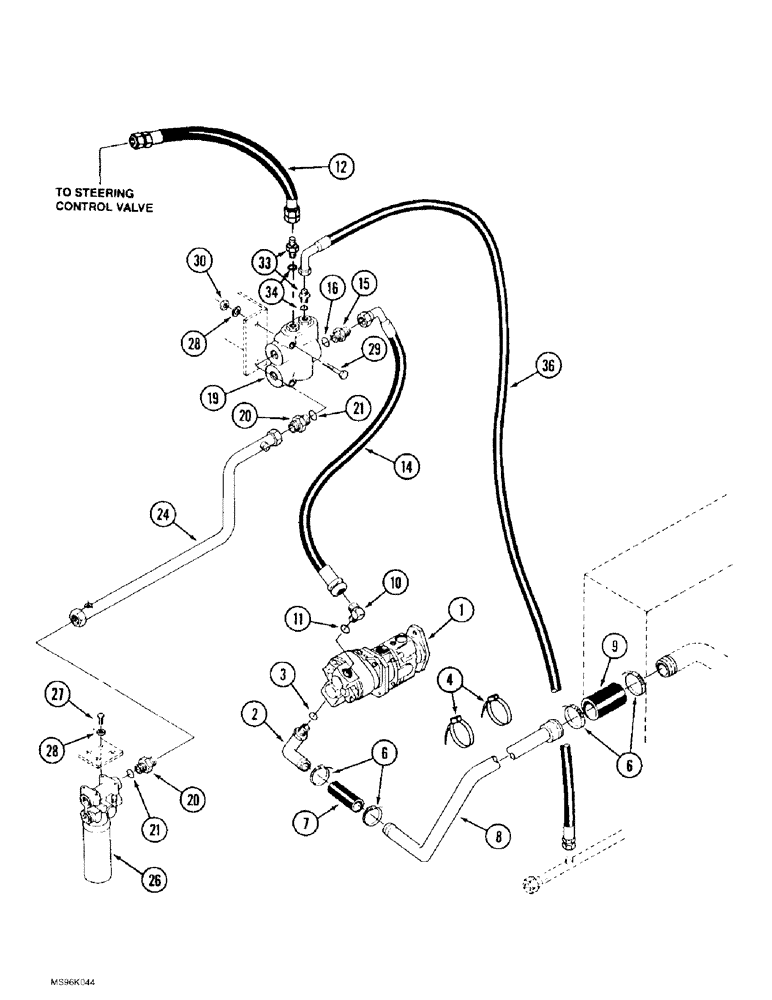

Запчасти Case IH 9380 (8-004) - STANDARD HYDRAULIC SYSTEM, PUMP CIRCUIT TO PRIORITY VALVE, 9370 AND 9380 ONLY (08) - HYDRAULICS

1

50-3548T93

PUMP

ASSEMBLY - tandem, parts list Figure 8-022

1шт.

1

50-3548T93R

REMAN-HYD PUMP

9370, 9380, Both Case IH 4WD Tractor, Assembly, Tandem (6/95-8/00)

1шт.

1

50-3548T93C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

31-1394

ELBOW

- hose stem, special, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

19-135

CABLE TIE

STRAP - tie, nylon

2шт.

6

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

4шт.

7

1-5651

HOSE,1.45" ID, 1.55" ID x 8.00"

cut from 1-4482 bulk hose, see below 1.45" ID, 1.55" ID x 8.00"

1шт.

8

50-3415T2

HYD TUBE

TUBE - supply, Serial Range: pump-tank

1шт.

9

31-2427

HOSE,2.00" ID x 6.00"

; Order 1-4568T1, and Cut to Required Length; See Below 2.00" ID x 6.00"

1шт.

10

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 1-5/16-12 flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

31-2814

HOSE

- 711 mm (28 inch) long, steering sensing

1шт.

14

32-187

HOSE

- 762 mm (30 inch) long, to priority valve

1шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

19

50-3155T91

VALVE

ASSEMBLY - priority, parts list Figure 8-038

1шт.

20

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 21

2шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

24

50-3504T2

HYD TUBE

TUBE - priority, Serial Range: valve-filter

1шт.

26

50-3632T91

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-034, replaces 50-3493T91 filter

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

29

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

30

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

33

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 34

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

36

31-3027

HOSE

- 965 mm (38 inch) long, to return tube

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

1-4568

HOSE

- bulk, 51 (2) ID x 3048 mm (120 inch) long

1шт.
