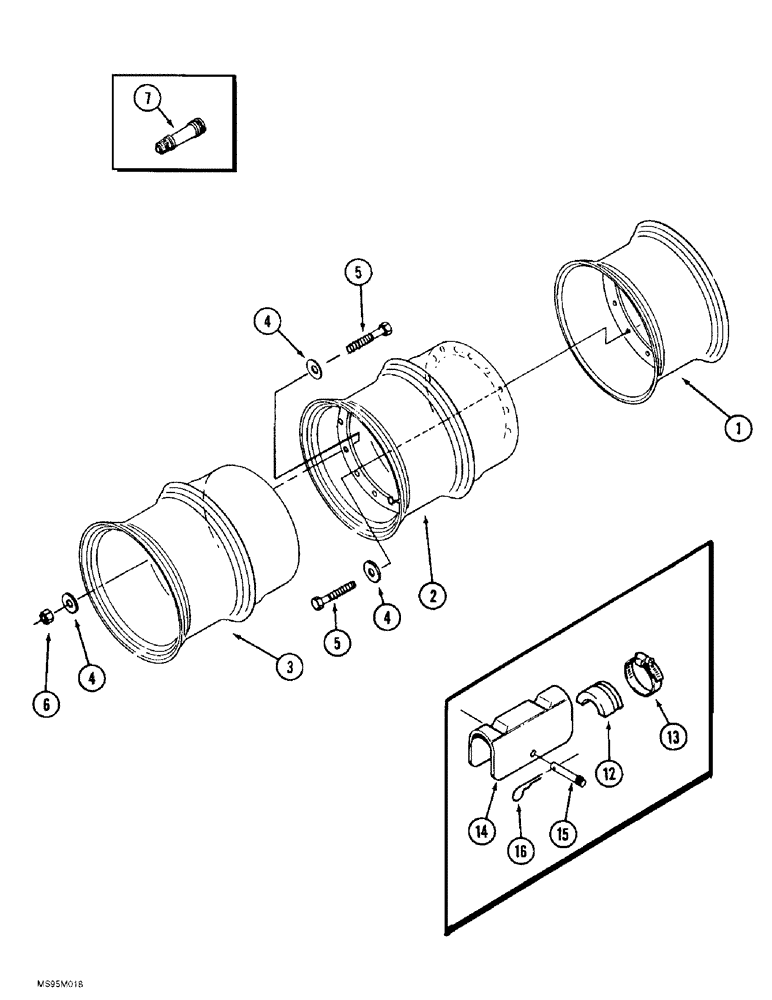

Запчасти Case IH 9380 (6-176) - WHEELS (06) - POWER TRAIN

1

30-1526T2

RIM

WHEEL - inner or dual, 20.8 x 38, 18 inch width

4шт.

1

30-1535T2

RIM

WHEEL - inner or dual, 20.8 x 42, 18 inch width

4шт.

2

30-1531T3

RIM

WHEEL - middle, 20.8 x 38 inch

4шт.

2

30-1539T1

RIM

WHEEL - middle, 20.8 x 42 inch

4шт.

3

30-1529T2

RIM

WHEEL - outer, 20.8 x 38, 18 inch width

4шт.

3

30-1538T4

RIM

WHEEL - outer, 20.8 x 42, 18 inch width

4шт.

4

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened, mounting

144шт.

5

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

112шт.

6

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

32шт.

7

A20058

VALVE STEM

VALVE - stem

12шт.

12

50-3448T1

STOP

- articulation, use with Ref. 14, 70-6256T1 lock

4шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.

12

35-1891T91

STOP

- articulation, use with Ref. 14, 70-6244T1 lock

4шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.

13

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Articulation stop #64, 3.56/4.50 Type F Worm

2шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.

14

70-6256T1

JOINT

LOCK - articulation, 8 1/4 inches long, if used, stop

2шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.

14

70-6244T1

LOCK

- articulation, 10 inch long, if used, stop

2шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.

15

427-8325

CLEVIS PIN,1/2" x 3 1/4"

PIN - clevis, 1/2 x 3-1/5 inch, hardened, articulation stop

2шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.

16

19-5400

PIN

- hair, 1/8 inch, articulation stop

2шт.

Used only with 20.8 x 38 or 20.8 x 42 triples.

1шт.
