(6-174) - WHEELS, FLANGE MOUNTED DUALS

Запчасти Case IH 9380 (6-174) - WHEELS, FLANGE MOUNTED DUALS (06) - POWER TRAIN

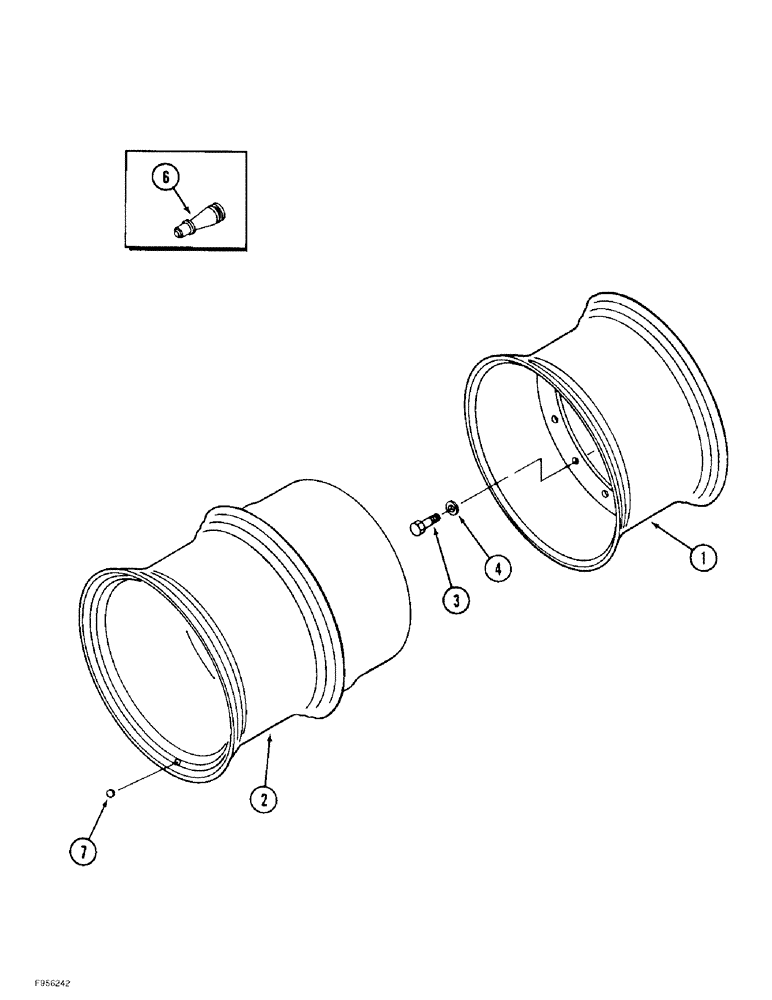

Схема запчастей Case IH 9380 - (6-174) - WHEELS, FLANGE MOUNTED DUALS (06) - POWER TRAIN
2
1
6
3
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

30-1526T2

RIM

WHEEL - inner or dual, 20.8 x 38, 18 inch width

4шт.

1

30-1535T2

RIM

WHEEL - inner or dual, 20.8 x 42, 18 inch width

4шт.

1

30-1516T2

RIM

WHEEL - inner or dual, 23.1 x 34, 20 inch width

4шт.

1

30-1501T2

RIM

WHEEL - inner or dual, 24.5 x 32, 21 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

1

30-1505T2

RIM

WHEEL - inner or dual, 24.5 x 32, 24 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

1

30-1510T2

RIM

WHEEL - inner or dual, 30.5 x 32, 27 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

1

30-1541T2

RIM

WHEEL - inner or dual, 30.5 x 32, 30 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

1

30-1624T2

RIM

WHEEL - inner or dual, 710/70 R38, 23 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

1

30-1648T1

WHEEL

- inner, 620/70 R42, 20 inch width, 20 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

1

313553A1

WHEEL

- inner, 900/50 R42, 28 inch width

4шт.

2

30-1529T2

RIM

WHEEL - outer, 20.8 x 38, 18 inch width

4шт.

2

30-1538T4

RIM

WHEEL - outer, 20.8 x 42, 18 inch width

4шт.

2

30-1519T2

RIM

WHEEL - outer, 23.1 x 34, 20 inch width

4шт.

2

30-1504T2

RIM

WHEEL - outer, 24.5 x 32, 21 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

2

30-1508T3

RIM

WHEEL - outer, 24.5 x 32, 24 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

2

30-1511T2

RIM

WHEEL - outer, 30.5 x 32, 27 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

2

30-1542T2

RIM

WHEEL - outer, 30.5 x 32, 30 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

2

30-1625T3

RIM

WHEEL - outer, 710/70 R38, 23 inch width, prior to P.I.N. JEE0072708

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

2

313555A1

RIM

WHEEL - outer, 710/70 R38, 28 inch width, P.I.N. JEE0072708 and after

4шт.

2

30-1649T1

WHEEL

- outer, 620/70 R42, 20 inch width

4шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.

2

313554A1

WHEEL

- outer, 900/50R42, 28 inch width

4шт.

3

70-6402T1

SCREW

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

80шт.

4

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

80шт.

6

A20058

VALVE STEM

VALVE - stem

8шт.

7

30-1631T1

PLUG

- wheel hole

8шт.

A quantity of one of Ref. 7, 30-1631T1 plug, is required for each 24.5 x 32, 30.5 x 32, 620/70 R42 and 710/70 R38 wheel.

1шт.
