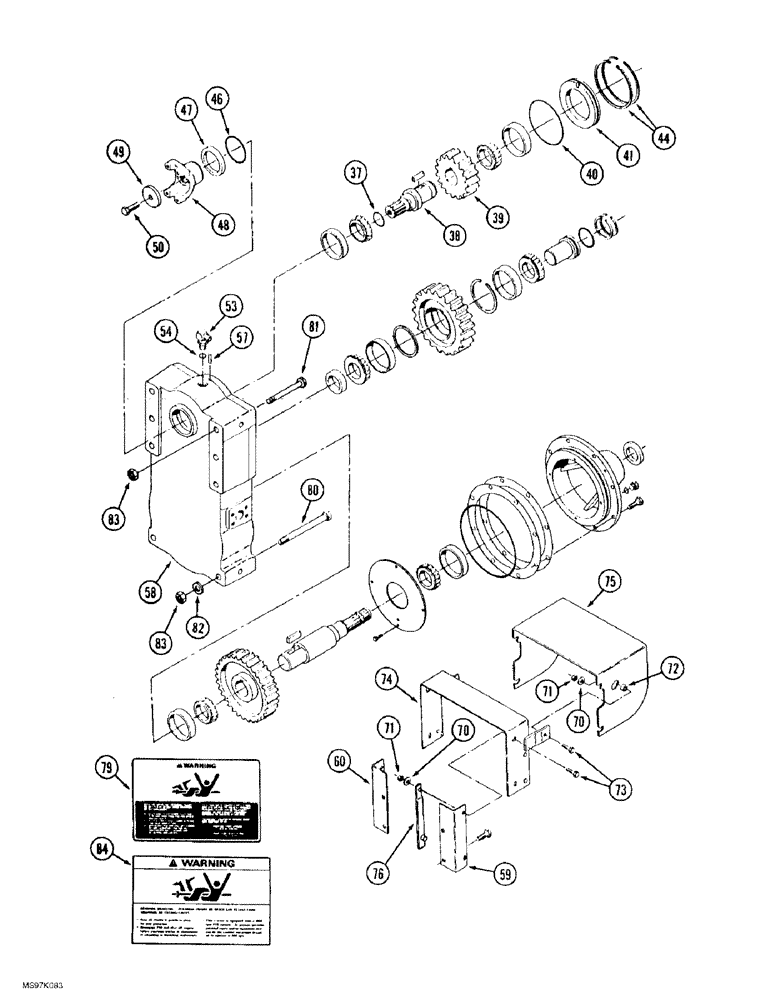

Запчасти Case IH 9380 (6-150) - PTO TRANSFER CASE ASSEMBLY (CONTD) (06) - POWER TRAIN

90-7039T92

CASE ASSY.

CASE ASSEMBLY - transfer, PTO, Includes: Ref. 37 - 60 and 1 - 35 on Figure 6-148

1шт.

37

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

- 1-3/4 ID x 3/32 inch wide, yoke

1шт.

38

90-1991T1

SHAFT

- input

1шт.

39

90-4404T1

PINION

GEAR - input, 32 teeth

1шт.

40

90-4423T1

O-RING,5.609" ID x 5.887" OD x 0.139"

- cap

1шт.

41

90-4422T1

CAP

- end, input shaft

1шт.

44

90-5755T1

RING, SNAP

RING - snap, 0.105 inch thick

1шт.

When using snap ring Ref. 44, quantity 2 is required. Use the thickness needed.

1шт.

44

90-5754T1

RING, SNAP

RING - snap, 0.110 inch thick

1шт.

When using snap ring Ref. 44, quantity 2 is required. Use the thickness needed.

1шт.

44

90-5753T1

RING, SNAP

RING - snap, 0.115 inch thick

1шт.

When using snap ring Ref. 44, quantity 2 is required. Use the thickness needed.

1шт.

44

90-5752T1

RING, SNAP

RING - snap, 0.120 inch thick

1шт.

When using snap ring Ref. 44, quantity 2 is required. Use the thickness needed.

1шт.

44

90-5751T1

RING, SNAP

RING - snap, 0.125 inch thick

1шт.

When using snap ring Ref. 44, quantity 2 is required. Use the thickness needed.

1шт.

46

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

- 1-3/4 ID x 3/32 inch wide

1шт.

47

90-1994T1

SEAL

- oil

1шт.

48

90-7007T1

YOKE

- input, PTO

1шт.

49

19-5776

WASHER

- flat

1шт.

50

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

53

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 54

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

57

37-1420

DOWEL,1/4" x 1 1/4"

PIN - dowel, 1/4 x 1-1/4 inch, hardened, replaces 37-1420 pin

1шт.

58

90-4417T3

HOUSING

- transfer case, PTO

1шт.

59

90-5870T1

ANGLE BAR

MOUNT - shield, left-hand

1шт.

60

90-5869T1

ANGLE BAR

MOUNT - shield, right-hand

1шт.

70

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

71

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

4шт.

72

19-6013

SPACER

- pivot

4шт.

73

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

74

90-5868T1

SUPPORT

BRACKET - mounting, shield

1шт.

75

90-3484T1

SHIELD

- PTO

1шт.

76

90-5866T1

RETAINER

- bracket

2шт.

79

2-7125T1

DECAL

- Warning, rotating driveline, replaced by 2-7125T2 Decal, Ref. 84

1шт.

80

426-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex, 3/4 NC x 7 inch, grade 8, with three point hitch

2шт.

81

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8, with three point hitch

6шт.

81

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch, without three point hitch

6шт.

82

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

1шт.

83

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

84

2-7125T2

DECAL

- Warning, rotating driveline, replaces 2-7125T1 decal, Ref. 79

1шт.
