Запчасти Case IH 9380 (6-134) - PTO CLUTCH MOUNTING (06) - POWER TRAIN

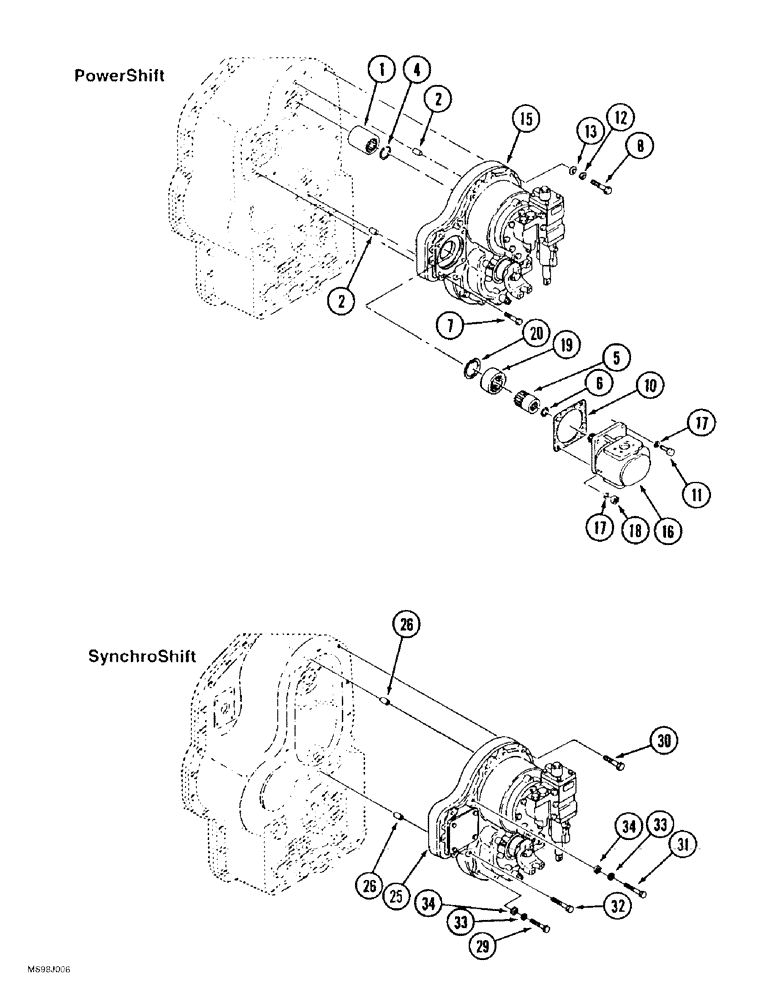

Схема запчастей Case IH 9380 - (6-134) - PTO CLUTCH MOUNTING (06) - POWER TRAIN
26
30
29
4
10
6
17
2
33
19
13
26
17
18
16
33
11
12
32
7
34
25
8
1
15
2
31
5
20
34

Артикул

Название

Примечание

Количество

1

90-7517T1

SLEEVE

- drive coupling

1шт.

2

33-1467T1

DOWEL

PIN - dowel

2шт.

4

SM922247

RING, SNAP

RING - snap

1шт.

5

33-1528T1

COUPLING

ADAPTER - pump drive, used only when equipped with PTO, See Figure 6-006 for adapter used on models without PTO

1шт.

6

33-1446T1

RING, SNAP

RING - snap

1шт.

7

SM8124280

BOLT

BOLT - hex, 12 - 1.25 x 95 mm

4шт.

8

SM8124290

BOLT

BOLT - hex, 12 - 1.25 x 90 mm

8шт.

8

SM8124295

BOLT

BOLT - hex, 12 - 1.25 x 95 mm

2шт.

8

SM8124285

BOLT

BOLT - hex, 12 - 1.25 x 85 mm

1шт.

10

50-1388T2

GASKET

- pump

1шт.

11

SM8124460

BOLT

BOLT - hex, 8 - 1.50 x 60 mm

2шт.

12

SM8915342

LOCK WASHER

WASHER - lock, 12 mm

3шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

3шт.

15

90-7045T93

REAR PTO ASSY

CLUTCH ASSEMBLY - PTO, parts list Figures 6-132 - 6-138

1шт.

16

33-1524T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - transmission lubrication, parts list Figure 6-030

1шт.

33-1524T91R

REMAN-HYD PUMP

9370, 9380 BOTH (6/95-8/00), 9390 (1/97-8/00)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

17

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

18

SM8911244

NUT

- hex, 14 mm - 1.5

2шт.

19

33-1452T1

COUPLING

- pump

1шт.

20

33-1445T1

RING, SNAP

RING - snap

1шт.

25

90-7045T93

REAR PTO ASSY

CLUTCH ASSEMBLY - PTO, parts list Figures 6-136 - 6-142, synchroshift tractors

1шт.

26

33-1467T1

DOWEL

PIN - dowel, synchroshift tractors

2шт.

29

SM8124295

BOLT

BOLT - hex, 12 - 1.25 x 95 mm, synchroshift tractors

2шт.

30

SM8124290

BOLT

BOLT - hex, 12 - 1.25 x 90 mm, synchroshift tractors

10шт.

31

SM8124285

BOLT

BOLT - hex, 12 - 1.25 x 85 mm, synchroshift tractors

1шт.

32

SM8124280

BOLT

BOLT - hex, 12 - 1.25 x 95 mm, synchroshift tractors

1шт.

33

SM8915342

LOCK WASHER

WASHER - lock, 12 mm, synchroshift tractors

5шт.

34

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm, Synchroshift tractors

5шт.

Выбрано товаров: 29
