Запчасти Case IH 9380 (6-130) - DRIVE SHAFT ASSEMBLIES, SYNCHROSHIFT TRACTOR (06) - POWER TRAIN

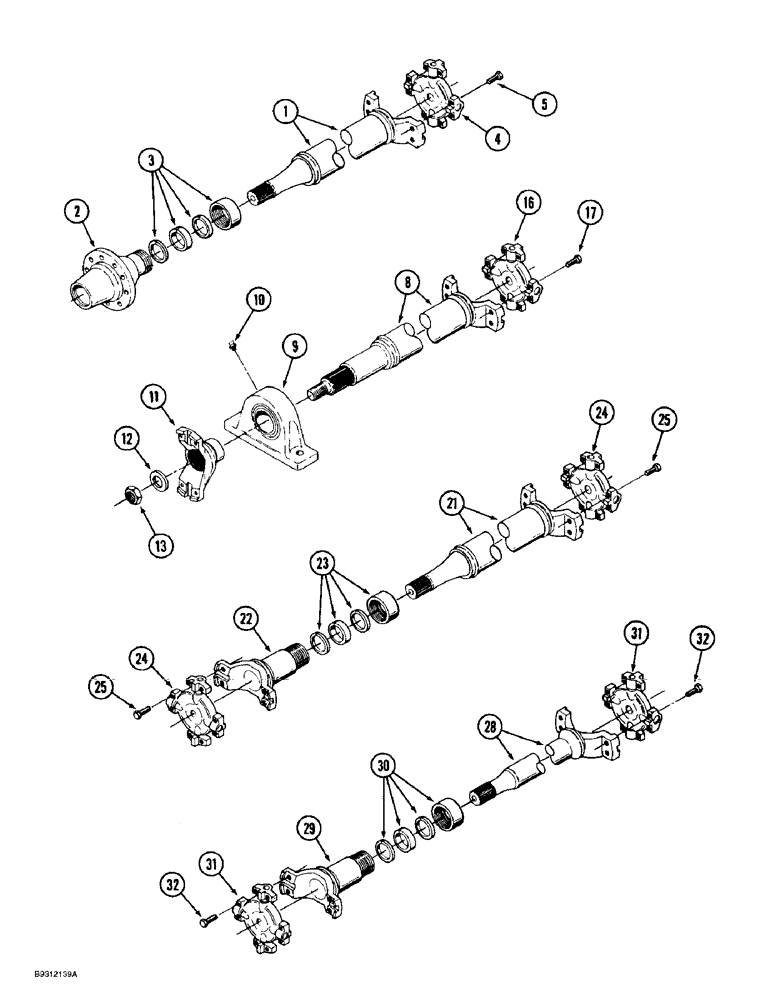

Схема запчастей Case IH 9380 - (6-130) - DRIVE SHAFT ASSEMBLIES, SYNCHROSHIFT TRACTOR (06) - POWER TRAIN
21
3
30
32
10
11
25
5
17
32
31
31
1
13
2
29
9
16
4
23
24
25
12
24
28
8
22

Артикул

Название

Примечание

Количество

90-7690T91

SHAFT

ASSEMBLY - drive, engine to transmission, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3842T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

4

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

1шт.

5

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

90-7628T91

SHAFT

ASSEMBLY - drive, intermediate shaft to rear axle (8C), Includes: Ref. 8 - 17

1шт.

P/N 90-7628T91 does not include bearing block and grease fitting, Ref. 9 and 10. Order these parts separately.

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - tube

1шт.

9

90-7378T1

BEARING CARRIER

- block, shaft

1шт.

P/N 90-7628T91 does not include bearing block and grease fitting, Ref. 9 and 10. Order these parts separately.

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

P/N 90-7628T91 does not include bearing block and grease fitting, Ref. 9 and 10. Order these parts separately.

1шт.

11

90-7379T1

YOKE

- shaft

1шт.

12

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

- flat, 1-5/16 x 2-1/2 x 9/64 inch, hardened

1шт.

13

131-487

LOCK NUT,1 1/4"-18

NUT - heavy hex, self-locking, 1-1/4 - 18 inch

1шт.

16

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

1шт.

17

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

90-7376T91

SHAFT

ASSEMBLY - drive, intermdiate transmission to hanger bearing, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - lip yoke

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - tube, includes a replaceable 219-1 grease fitting, not shown

1шт.

23

2-3842T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

24

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

2шт.

25

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

90-7691T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle to transmission, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

29

NSS

NOT SOLD SEPARAT

SHAFT - tube, includes a replaceable 219-1 grease fitting, not shown

1шт.

30

2-3842T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

31

1-9994T3

SPIDER ASSY.

SPIDER - shaft, 8C

2шт.

32

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

8шт.

Выбрано товаров: 30
