Запчасти Case IH 9380 (6-126) - DRIVE SHAFTS AND MOUNTING (06) - POWER TRAIN

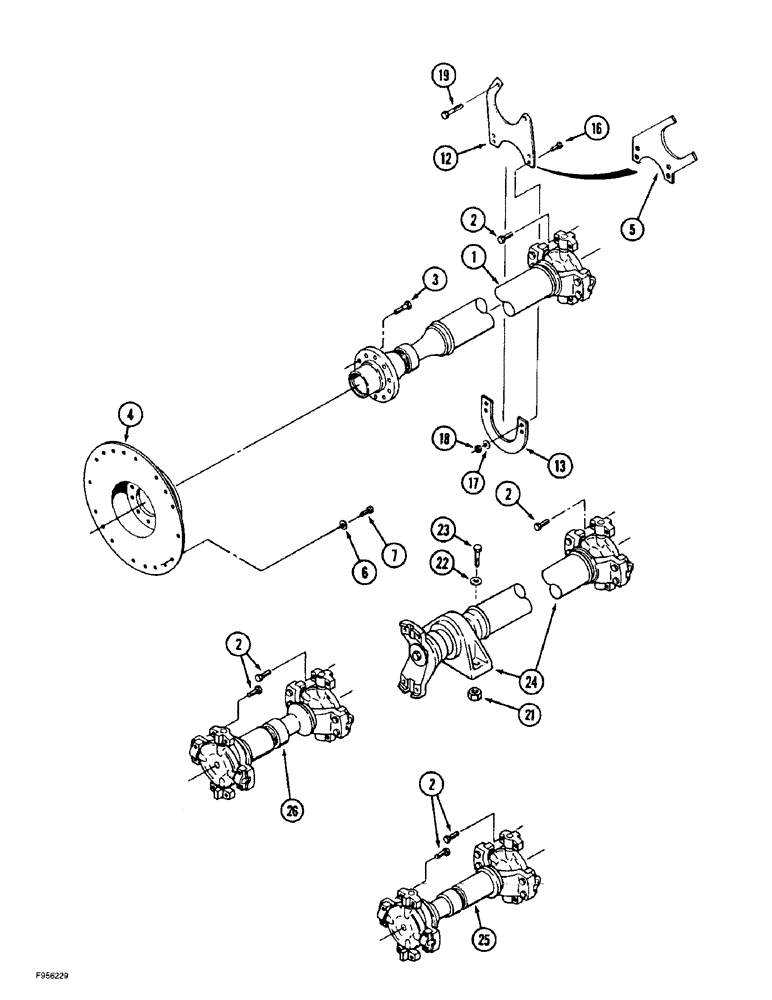

Схема запчастей Case IH 9380 - (6-126) - DRIVE SHAFTS AND MOUNTING (06) - POWER TRAIN
2
24
21
22
16
25
3
2
7
4
19
6
2
5
26
2
12
17
1
18
13
23

Артикул

Название

Примечание

Количество

1

90-7510T91

SHAFT

ASSEMBLY - drive, engine to transmission (8C), Power Shift, parts list Figure 6-128

1шт.

1

90-7690T91

SHAFT

ASSEMBLY - drive, engine to transmission, SynchroShift, parts list Figure 6-130

1шт.

2

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

24шт.

3

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

10шт.

4

90-7558T1

DAMPER

- vibration

1шт.

5

90-7523T1

SUPPORT

SHIELD - upper, drive shaft, SynchroShift

1шт.

6

70-6412T1

WASHER

- special

12шт.

7

426-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex, 7/16 NC x 1 inch, grade 8

12шт.

12

90-7521T1

SUPPORT

SHIELD - upper, drive shaft, Power Shift

1шт.

13

90-6743T1

SHIELD

- lower, drive shaft

1шт.

16

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

19

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

21

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

23

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8

2шт.

24

90-7628T91

SHAFT

ASSEMBLY - drive, intermediate shaft to rear axle (8C), parts list Figures 6-128 and 6-130

1шт.

25

90-1902T93

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle to transmission, parts list Figure 6-128, Power Shift

1шт.

25

90-7691T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle to transmission, parts list Figure 6-130, Synchroshift

1шт.

26

90-7376T91

SHAFT

ASSEMBLY - drive, intermdiate transmission to hanger bearing, parts list Figures 6-128 and 6-130

1шт.

Выбрано товаров: 21
