Запчасти Case IH 9380 (6-110) - TRANSMISSION SHIFT CONTROLS, SHIFT LEVER CABLES, SYNCHROSHIFT TRACTOR (06) - POWER TRAIN

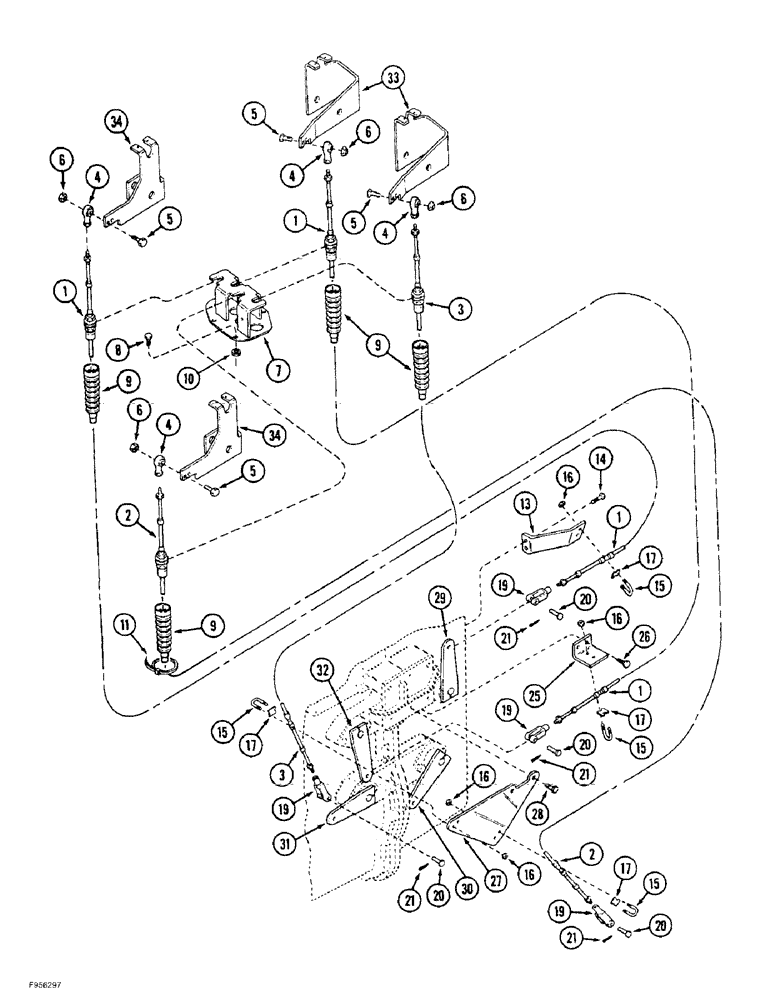

Схема запчастей Case IH 9380 - (6-110) - TRANSMISSION SHIFT CONTROLS, SHIFT LEVER CABLES, SYNCHROSHIFT TRACTOR (06) - POWER TRAIN
10
17
8
2
19
15
31
21
25
4
19
9
20
6
28
17
20
30
4
15
9
13
20
1
21
1
3
26
7
16
34
33
29
1
17
6
16
1
5
5
9
14
19
11
4
5
5
6
16
16
19
21
20
27
32
2
4
21
15
3
15
34
17
6

Артикул

Название

Примечание

Количество

1

60-6564T2

CABLE

- shift lever, gears, R-1-2-3

2шт.

2

60-6641T1

CABLE

- shift lever, C-D range

1шт.

3

60-6640T1

CABLE

- shift lever, A-B range

1шт.

4

19-6233

BALL JOINT

JOINT - ball

4шт.

5

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

12шт.

7

60-6668T3

MOUNTING PARTS

MOUNT - cable

1шт.

8

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

9

60-4279T2

BELLOWS

BOOT - rubber

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

4шт.

13

90-7768T1

SUPPORT

BRACKET - cable support

1шт.

14

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

15

90-7452T1

U-BOLT,U, 3/8" - 16 x 44mm

- retainer, cable

4шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

17

90-7453T1

SHIM

SADDLE - clamp

4шт.

19

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

4шт.

20

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

4шт.

21

19-5400

PIN

- hair, 1/8 inch

4шт.

25

90-7769T1

SUPPORT

BRACKET - mounting, cable

1шт.

26

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

27

90-7770T1

SUPPORT

PLATE - mounting, cable

1шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

29

90-7975T1

LEVER

- shift, speed, outer

1шт.

30

90-7977T1

LEVER

- shift, range, outer

1шт.

31

90-7977T1

LEVER

- shift, range, outer

1шт.

32

90-7975T1

LEVER

- shift, speed, outer

1шт.

33

60-6615T2

SHIFTER FORK

BRACKET - lever, outer

2шт.

34

60-6614T2

SHIFTER FORK

BRACKET - lever, inner

2шт.

Выбрано товаров: 29
