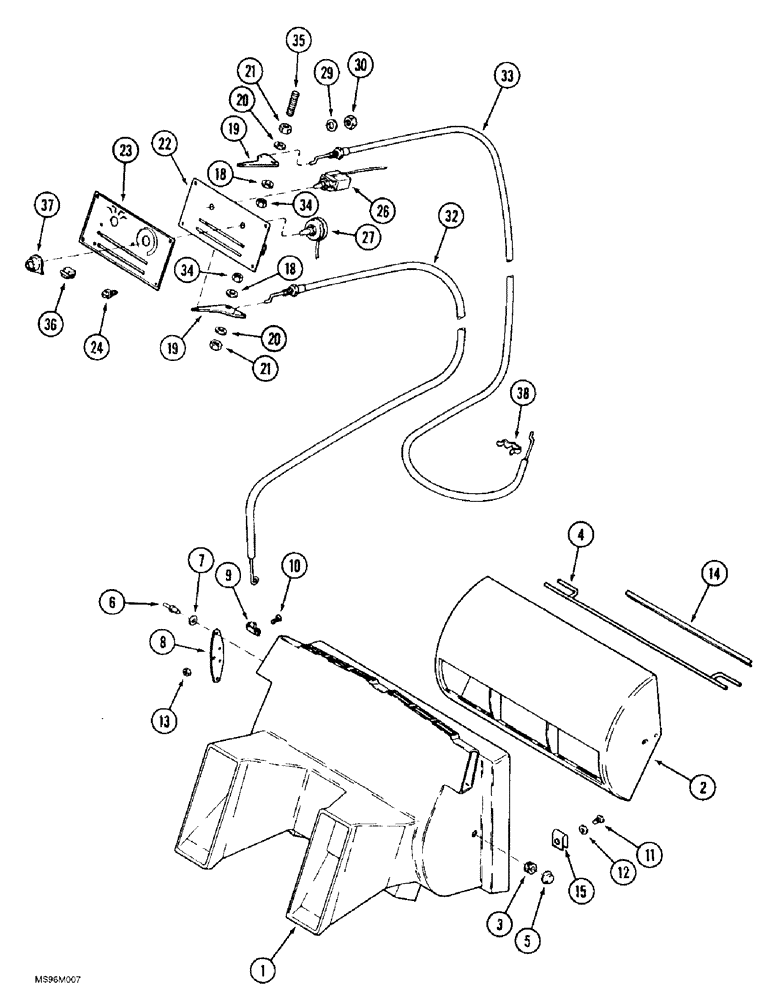

Запчасти Case IH 9370 (9-098) - CAB AIR CONDITIONER AND HEATER, CONTROLS AND AIR PLENUM (09) - CHASSIS/ATTACHMENTS

1

60-4917T2

DEFLECTOR

PLENUM - air conditioner and heater

1шт.

2

60-4698T1

FLAP

DOOR - heat/defrost director

1шт.

3

19-6129

NYLON BEARING

BUSHING - split flange, 11/32 ID x 7/16 inch OD, snap in, door pivot

2шт.

4

60-4680T1

PIVOT

ROD - pivot, plenum door

1шт.

5

19-5758

PUSH-ON NUT

- push on type

2шт.

6

19-157

RIVET

- pop, 1/8 x 3/8 inch

5шт.

7

495-31016

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch

5шт.

8

60-4976T1

FIXING BRACKET

BRACKET - clamp mounting

1шт.

9

515-2663

CLAMP,1/4", 1/4" Bolt

- P-type, 1/4 inch ID, cable retaining

1шт.

10

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, hex slotted washer head, No. 10 NC x 3/4 inch

2шт.

11

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - self-tapping, hex washer head, No. 10-16 x 3/4 inch

8шт.

12

495-31022

WASHER,#10

16шт.

13

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

10шт.

14

60-4681T1

SEAL

- adhesive-backed, 432 mm (17 inch) long, cut from 2-7261T1 bulk seal, see below, plenum door

1шт.

15

1975905C1

NUT

- special, U-speed, No. 10-16

8шт.

18

19-6046

WASHER

- flat, 5/16 x 5/8 x 1/8 inch

2шт.

19

60-6715T1

LEVER

- cable actuating

2шт.

20

19-5995

SPRING WASHER

- spring, 5/16 inch

2шт.

21

231-2445

LOCK NUT,5/16"-24, GB

NUT - hex, self-locking, 5/16 inch NF

2шт.

22

60-6713T2

PANEL

- climate control

1шт.

23

60-6716T1

DECAL

- climate control panel

1шт.

24

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - self-tapping, hex washer head, No. 8-18 x 5/8 inch

4шт.

26

92101C1

SWITCH

- thermostat

1шт.

27

92100C2

SWITCH

- blower motor

1шт.

29

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

32

60-4543T1

CABLE

- heater/defroster/air conditioning

1шт.

33

60-6718T1

CABLE

- actuating, water valve

1шт.

34

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

35

19-6229

ROD,THREADED

STUD - lever

1шт.

36

60-6717T1

BUTTON

KNOB - control, lever

2шт.

37

60-3958T1

BUTTON

Knob, Control, Lower Rate

2шт.

38

1954626C1

SPRING CLIP

CLIP - retaining, heater cable

1шт.

2-7261T1

SEAL

- bulk, adhesive-backed, 3048 mm (120 inch) long

1шт.
