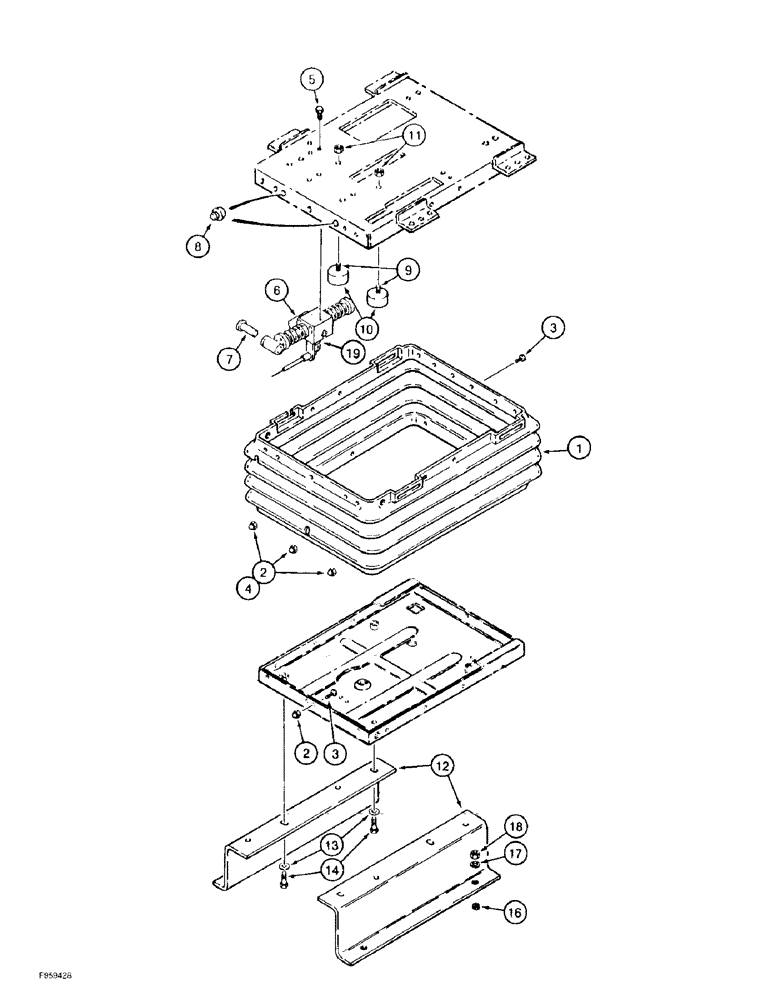

Запчасти Case IH 9370 (9-080) - DELUXE AIR SUSPENSION SEAT, BOOT AND MOUNTS (09) - CHASSIS/ATTACHMENTS

144845A2

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaced by 144845A3 seat, parts list Figure 9-070 - 9-080, Includes: Ref. 1 - 14

1шт.

144845A3

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaces 144845A2 seat, parts list Figures 9-070 -, Includes: Ref. 1 - 14 9-080

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, additional parts list Figures 9-074 - 9-080, Includes: Ref. 1 - 11

1шт.

133421A1

PACKAGE

KIT - boot, fore/aft

1шт.

1

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - dome

3шт.

3

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

23шт.

4

NSS

NOT SOLD SEPARAT

CLIP - dart

3шт.

5

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

6

132863A1

ISOLATOR

LATCH - isolator, fore/aft

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, included in 180594A3 roller and bearing kit on Figure 9-076

1шт.

8

133422A1

BUMPER

- down stop

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

Part of bumper kit P/N 180593A1.

1шт.

10

NSS

NOT SOLD SEPARAT

BUMPER - rubber, upper housing

2шт.

Part of bumper kit P/N 180593A1.

1шт.

11

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

Part of bumper kit P/N 180593A1.

1шт.

12

222771A1

RISER

BRACKET - mounting, seat

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

16

F15988

SPACER

- seat mounting

4шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

190156A1

SHOCK ABSORBER

KIT - block, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

BLOCK - isolator

2шт.

19

NSS

NOT SOLD SEPARAT

SPRING - isolator

2шт.

19

NSS

NOT SOLD SEPARAT

SCREW - isolator

2шт.

180593A1

KIT

- bumper, Includes: Ref. 9 - 11

1шт.
