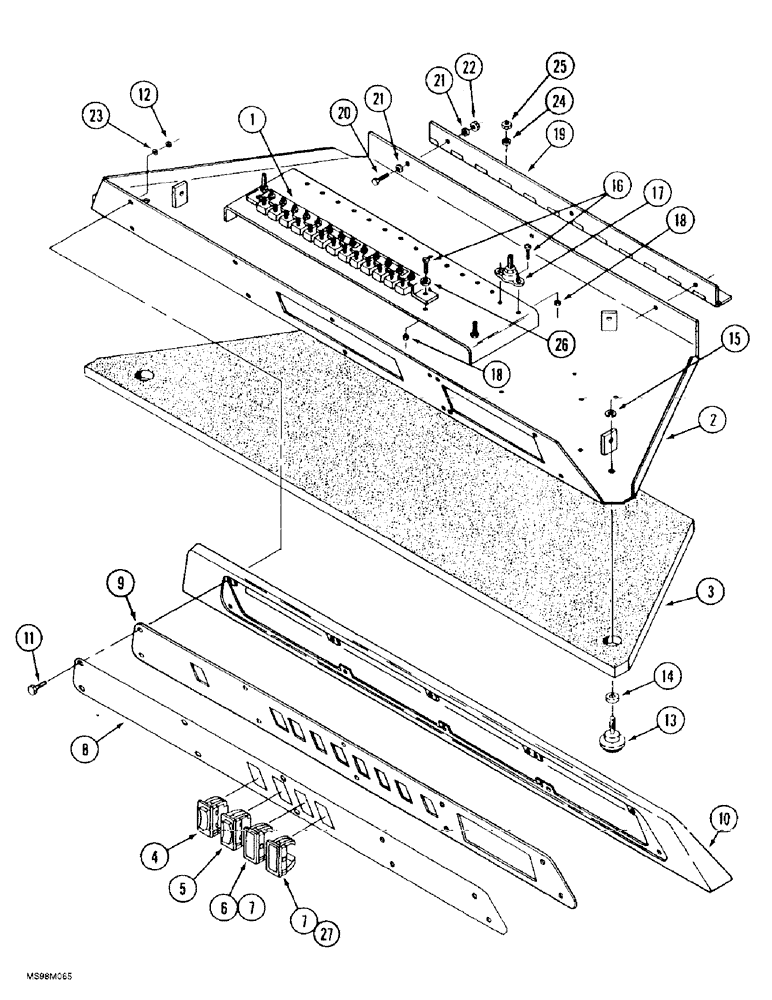

Запчасти Case IH 9370 (9-066) - CAB OVERHEAD DOOR (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BREAKER ASSEMBLY - circuit, parts list Figure 4-14

1шт.

2

60-5758T1

BRACKET

DOOR - overhead, console

1шт.

3

60-5923T1

NOISE PROTECTION

PAD - insulation, door, gray

1шт.

4

1964752C1

SWITCH

- rocker, master light

1шт.

5

245012C1

SWITCH

- rocker, dash lights

1шт.

6

1964751C1

SWITCH

- rocker, ether start, if equipped

1шт.

7

245334C1

PLUG

- panel switch cover, replaces 60-3210T1 plug

2шт.

8

60-7153T1

DECAL

- overhead controls

1шт.

9

60-6459T1

PANEL

- rocker switch

1шт.

10

60-5928T1

COVER

- console door, gray

1шт.

11

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

- machine, hex washer head, No. 8 NC x 3/4 inch

8шт.

12

131-29

LOCK NUT,#8-32, GB

NUT - hex, self-locking, No. 8 NC

8шт.

13

60-4033T1

BUTTON

KNOB ASSEMBLY - console release, no longer available, order component parts, Includes: Ref. 13A & 13B

2шт.

13a

60-4135T1

STUD,1/4" - 20 x 1-7/16"

- release knob, not shown

1шт.

13b

60-4136T1

KNOB

- console release, not shown

1шт.

14

19-6126

SPACER

- knob

2шт.

15

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking, replaces 267689R1 ring

2шт.

16

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- machine, pan head slotted, No. 10 NF x 1/2 inch

4шт.

17

20-1451T1

BLOCK

- junction

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

4шт.

19

60-4034T1

HINGE

- console door

1шт.

20

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 1/2 inch, grade 8

3шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

22

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

3шт.

23

495-21019

WASHER,#8

8шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

26

495-31022

WASHER,#10

2шт.

27

1987431C1

SWITCH

- rocker, if equipped

1шт.
