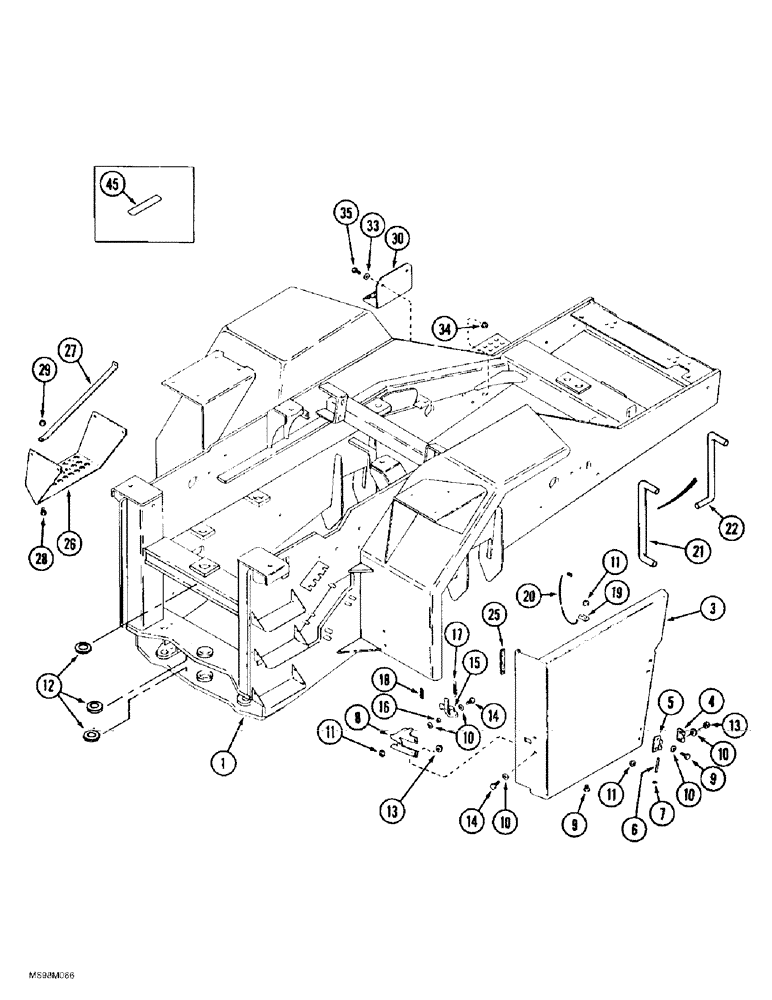

Запчасти Case IH 9370 (9-024) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

305091A1

FRAME

- front, replaces 70-6641T1 frame

1шт.

3

70-6209T2

DOOR

- component cover

1шт.

4

70-6210T2

HINGE

- door, mounting

2шт.

5

70-6200T1

HINGE

- door

2шт.

6

70-1996T3

PIN,6.35mm OD x 111mm L

- hinge

2шт.

7

70-2600T2

CIRCLIP

RING - retaining

4шт.

8

70-6207T2

SUPPORT

BRACKET - mounting

1шт.

9

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

10

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

12шт.

11

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

16шт.

12

19-5709

WASHER,51.21mm ID x 88.9mm OD x 3.8mm Thk

- special

3шт.

Ref #12 - used to take up spagce in the bushing. MU. TSG. 10/28/99

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

12шт.

14

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

15

70-6206T1

LATCH

- access door

1шт.

16

496-81023

WASHER

- flat, 13/32 x 3/4 x 7/32 inch, hardened, latch

1шт.

17

90-7524T1

SPRING

- latch

1шт.

18

90-6966T1

MOLDING

HANDLE - door latch

1шт.

19

70-1996T3

PIN,6.35mm OD x 111mm L

- retaining

1шт.

20

9415236

PIN, ROLL

PIN - 1/8 x 3/4 inch, spring

1шт.

21

70-6213T1

STEM

ROD - retainer, replaced by 70-6336T1 rod, Ref. 22

1шт.

22

70-6336T1

STEM

ROD - retainer, replaces 70-6213T1 rod, Ref. 21

1шт.

25

60-6607T2

FOAM

SEAL - foam, 711 mm (28 inch) long, cut from 60-4596T1 bulk seal, see below

1шт.

26

70-5107T1

STEP

- rear, bottom

1шт.

For Step Extension, See QUADTRAC Catalog

1шт.

27

70-5109T1

FIXING STRIP

STRAP - stabilizer, step

1шт.

28

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

29

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

12шт.

30

70-2142T3

STEP

- lower front

1шт.

33

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

45

1-6835

ADHESIVE STRIP

STRIP - anti-skid, 406 mm (16 inch) long, cut from 26-211 bulk strip, see below

4шт.

60-4596T1

SEAL

SEAL - foam, bulk, 3048 mm (120 inch) long

1шт.

26-211

ADHESIVE STRIP

STRIP - non-skid, bulk, 51 (2) x 3048 mm (120 inch) long

1шт.
