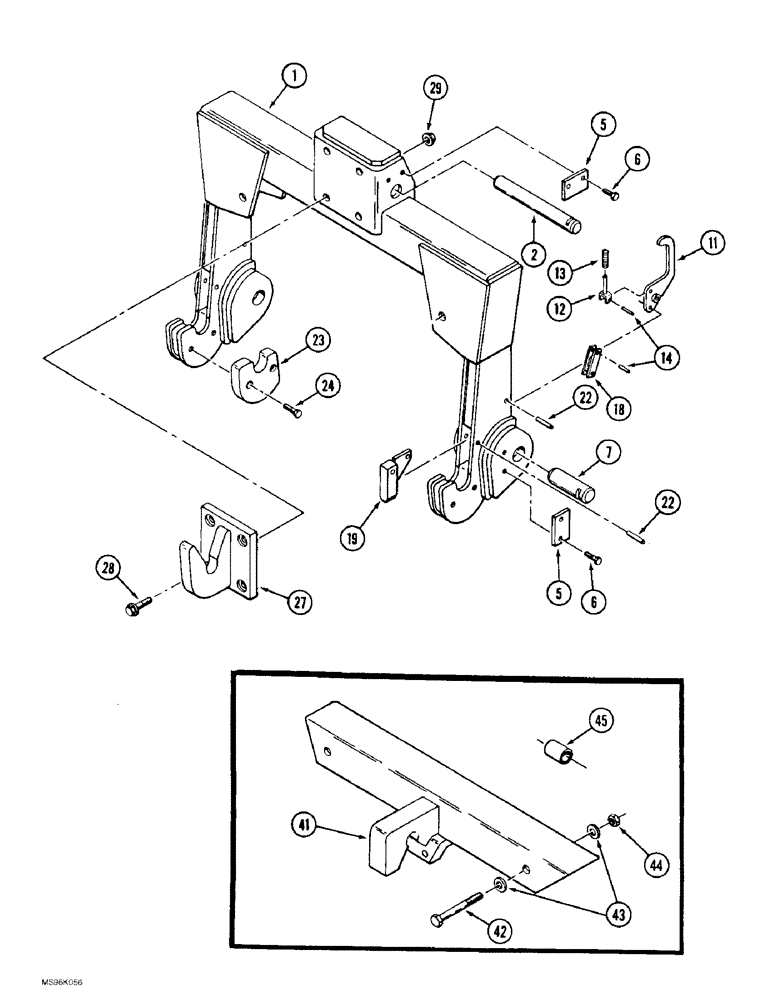

Запчасти Case IH 9370 (9-016) - QUICK HITCH COUPLER, CATEGORY IV-NARROW, PRIOR TO P.I.N. JEE0069308, 9370 AND 9380 ONLY (09) - CHASSIS/ATTACHMENTS

35-1470T91

FAST HITCH

KIT - quick hitch coupler, order from Machinery Price List, Includes: Ref. 1 - 29

1шт.

1

281462A1

COUPLING

HITCH - quick attachment, replaces 70-1919T2 hitch

1шт.

2

70-1895T1

PIN

- hitch, upper

1шт.

5

70-3082T2

LARGE PLATE

BLOCK - pin retaining

3шт.

6

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

6шт.

7

70-1894T1

PIN

- hitch, lower

2шт.

11

70-1880T1

LATCH

HANDLE - hitch release

2шт.

12

70-1884T1

PITMAN

LINK - spring return

2шт.

13

2-4345T1

SPRING

- return, handle

2шт.

14

9416325

LOCK PIN,5/16" x 1 1/8", Slotted

Pin, 5/16" x 1 1/8", Slotted

6шт.

18

70-1887T1

PITMAN

LINKAGE - connecting, Serial Range: handle-catch

2шт.

19

70-1890T2

STOP

CATCH - hitch release

2шт.

22

38-33240

PIN,1/2" x 2 1/2", Coiled

4шт.

23

70-1920T1

CAP

- spacer, right-hand

1шт.

23

70-1921T1

CAP

- spacer, left-hand

1шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

27

70-1869T1

HOOK

- quick attachment

1шт.

28

19-5787

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

- flange, 3/4 NC x 2-1/2 inch, grade 8

4шт.

29

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- hex flange, 3/4 inch NC

4шт.

35-1376T91

HOOK

KIT - conversion, no longer available, order component parts separately, Includes: Ref. 41 - 45, category III, 9370 and 9380 only

1шт.

41

70-1913T1

HOOK

- quick attachment, category III conversion kit, 9370 and 9380 only

1шт.

42

326-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

- hex, 1 NC x 7-1/2 inch, grade 8, category III conversion kit, 9370 and 9380 only

2шт.

43

19-5739

WASHER

- flat, special, category III conversion kit, 9370 and 9380 only

4шт.

44

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Category III conversion kit, 9370 and 9380 only

2шт.

45

2-5306T1

SPACER

- conversion, category III kit, 9370 and 9380 only

2шт.
