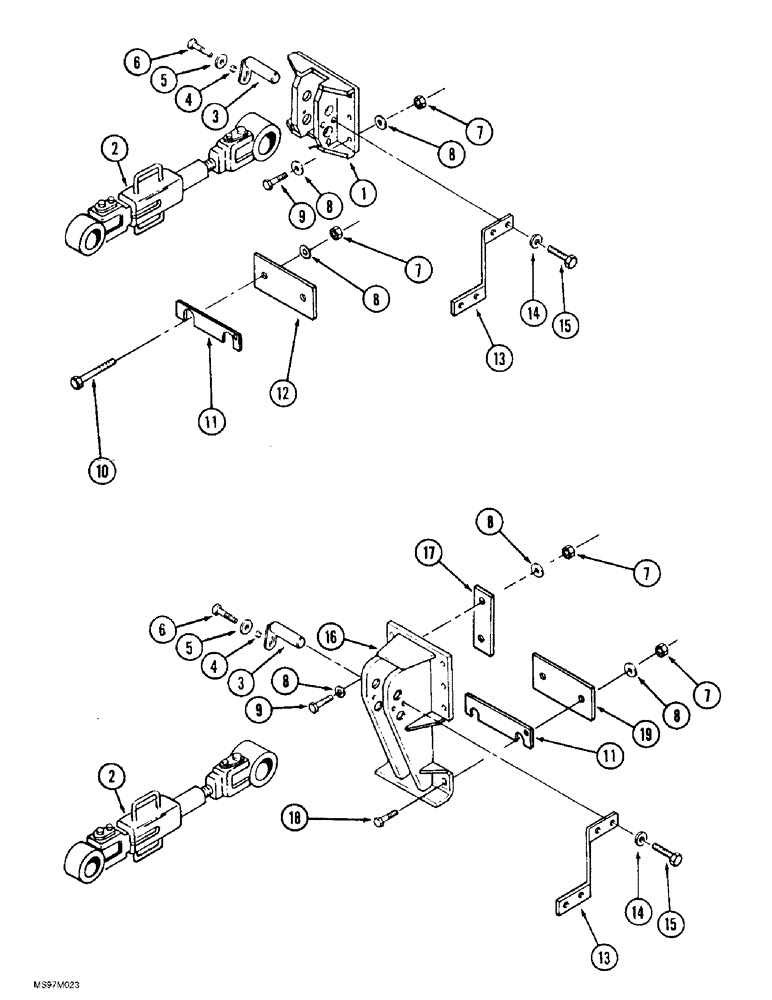

Запчасти Case IH 9370 (9-008) - THREE POINT HITCH LINKAGE, P.I.N. JEE0069308 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

253673A1

MOUNTING PARTS

MOUNT - upper link, with PTO

1шт.

2

253908A1

LINK

ASSEMBLY - upper, parts list Figure 9-014

1шт.

3

70-6232T2

PIN,44.32mm OD x 162.31mm L

- link retaining, upper link

1шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

7

829-1420

NUT,M20, Cl 10

8шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

14шт.

9

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

- hex, 20 - 2.5 x 220 mm, class 10.9

6шт.

10

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

- hex, 20 - 2.5 x 190 mm, class 10.9

2шт.

REF: 10 R/B QTY 2 OF L130035 SPACER AND QTY 2 OF 827-20210 BOLT M20 X 210 10.9 ZND ECN F990082 NAPO TECH NOTE

1шт.

11

70-6405T1

SHIM

- mounting

2шт.

12

70-6905T1

PLATE

- mounting, with PTO

1шт.

13

50-3636T1

BRACKET

- coupler

2шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

16

253672A1

MOUNTING PARTS

MOUNT - upper link, without PTO

1шт.

17

70-6406T1

LARGE PLATE

PLATE - mounting, without PTO

2шт.

18

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 - 2.5 x 80 mm, class 10.9

8шт.

19

70-6904T1

PLATE

- mounting, without PTO

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.
