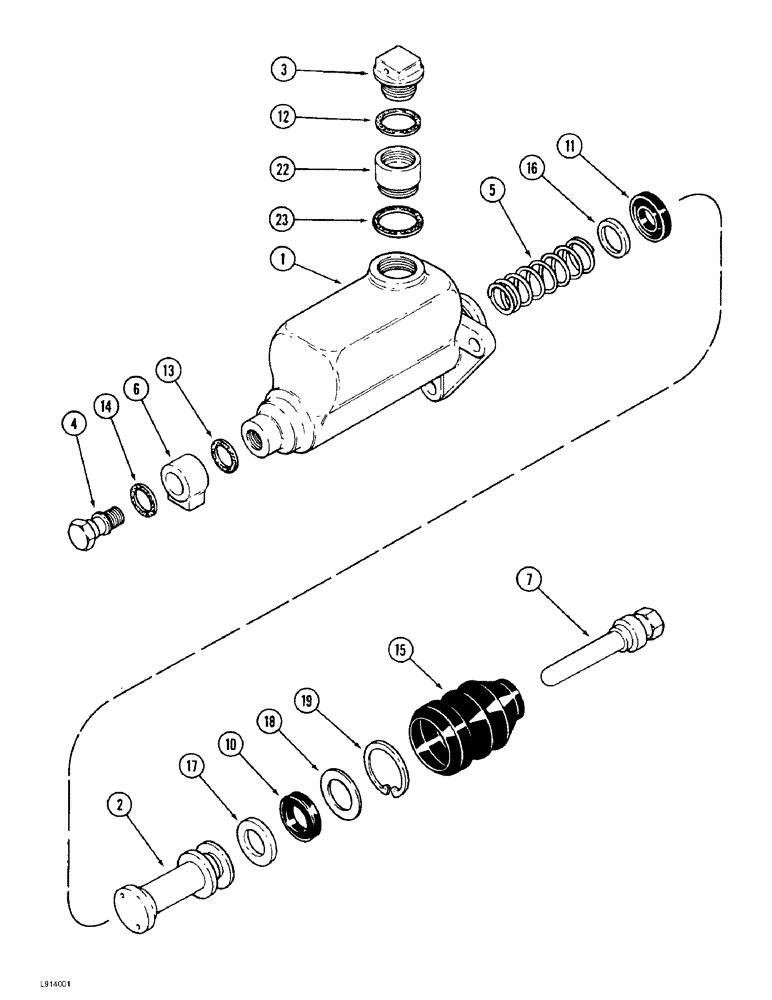

Запчасти Case IH 9370 (7-16) - MASTER CYLINDER ASSEMBLY, 9370 TRACTOR, SINGLE STAGE (07) - BRAKES

90-7554T91

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - cylinder, brake

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

3

S301536

PLUG

CAP - master cylinder, replaces 1-9956 cap

1шт.

4

31-663

BANJO BOLT

BOLT - hex, outlet port

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

31-664

FITTING

- swivel

1шт.

7

1-2960

STEM

ROD - push, cylinder

1шт.

35-1894T91

PACKAGE, REPAIR

KIT - brake cylinder, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - sealing

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - sealing, small

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - filler cap

1шт.

13

1-1800

GASKET

- fitting

1шт.

14

1-1799

GASKET

- fitting, outer

1шт.

15

NSS

NOT SOLD SEPARAT

BOOT - dust

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - retainer

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - stop

1шт.

19

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

22

60-4546T1

INSERT

EXTENSION - master cylinder cap, stand-off

1шт.

23

60-4581T1

GASKET

- master cylinder cap, stand pipe

1шт.
