(9350) - CASE IH 4WD TRACTOR (1/96-8/00)
/
(06) - POWER TRAIN
/

(6-010) - POWER SHIFT TRANSMISSION ASSEMBLY, FRONT COVERS AND YOKE

Запчасти Case IH 9350 (6-010) - POWER SHIFT TRANSMISSION ASSEMBLY, FRONT COVERS AND YOKE (06) - POWER TRAIN

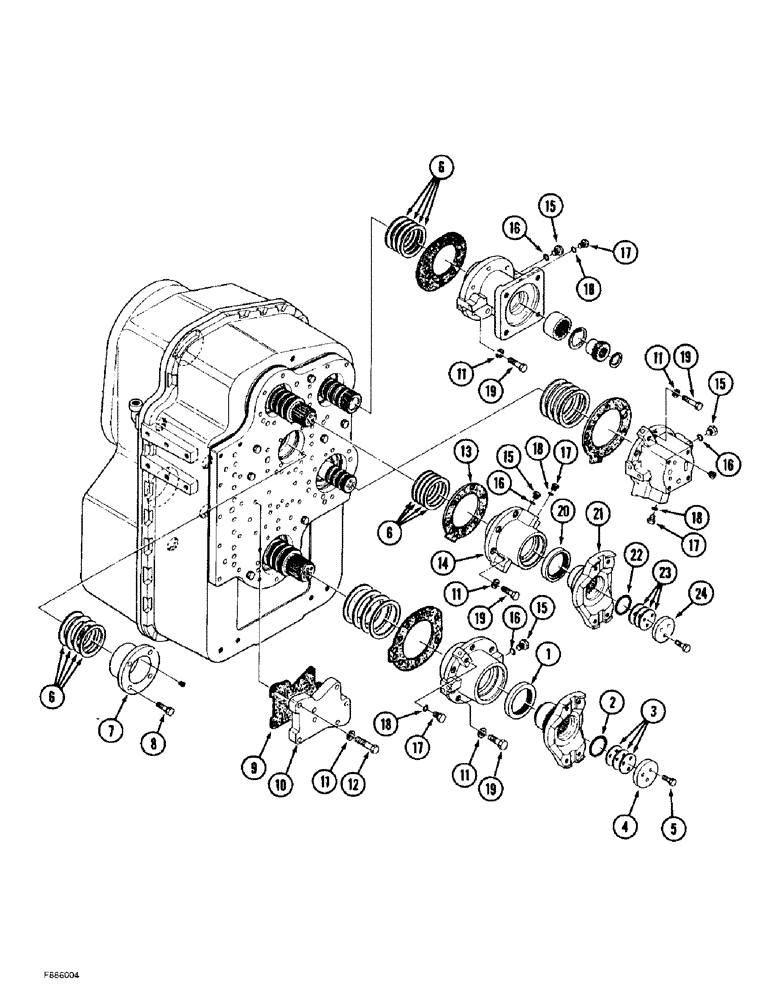

Схема запчастей Case IH 9350 - (6-010) - POWER SHIFT TRANSMISSION ASSEMBLY, FRONT COVERS AND YOKE (06) - POWER TRAIN
6
22
6
23
18
16
20
12
4
19
24
21
18
15
16
14
16
3
11
2
11
13
17
18
11
15
6
11
8
11
17
9
16
19
5
18
7
1
19
15
15
6
19
17
17

№

Артикул

Название

Примечание

Количество

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, continued, replaces 90-7015T91 transmission, Includes: Ref. 1 - 24 and 25 - 39 on Fig. 6-12

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

1

33-1428T1

OIL SEAL

SEAL - output shaft

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

2

33-1422T1

O-RING

O-RING - yoke sealing

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

3

33-1450T1

SHIM

- 0.10 mm thick

1шт.

3

33-1451T1

SHIM

- 0.30 mm thick

1шт.

4

33-1432T1

WASHER

PLATE - retainer

1шт.

5

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

6

33-1456T1

SHIM

- bearing, 0.1 mm thick

1шт.

6

33-1457T1

SHIM

- bearing, 0.3 mm thick

1шт.

6

33-1458T1

SHIM

- bearing, 0.5 mm thick

1шт.

6

33-1459T1

SHIM

- bearing, 0.7 mm thick

1шт.

6

33-1474T1

SHIM

- bearing, 0.15 mm thick

1шт.

7

33-1437T1

RETAINER

- bearing

1шт.

8

SM8124050

BOLT

BOLT - hex, 10 - 1.25 x 50 mm, Includes: Ref. 9

4шт.

9

S1610S01F

GASKET

- oil supply plate

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

10

S1600S00F

LARGE PLATE

PLATE - oil supply, Includes: Ref. 11

1шт.

11

892-11010

LOCK WASHER,M10

31шт.

12

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

7шт.

13

33-1440T2

GASKET

- oil supply cover

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

14

33-1441T1

HOUSING

COVER - oil supply

1шт.

15

S1390S00F

PLUG

- O-ring boss

8шт.

16

S1320S00F

O-RING

- plug

8шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

17

S1030S00F

PLUG

- hex, O-ring boss

5шт.

18

S1040S00F

O-RING

- plug

5шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

19

SM8124060

BOLT

BOLT - hex, 10 - 1.25 x 60 mm

24шт.

20

33-1412T1

OIL SEAL

SEAL - input yoke

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

21

33-1411T1

YOKE

- input

1шт.

22

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- yoke sealing

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

23

33-1464T1

SHIM

- 0.10 mm (0.004 inch) thick

1шт.

23

33-1465T1

SHIM

- 0.30 mm (0.012 inch) thick

1шт.

23

33-1466T1

SHIM

- 0.70 mm (0.028 inch) thick

1шт.

24

33-1413T1

WASHER

PLATE - yoke retainer

1шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Refs. 1, 2, 16, 18, 20 and 22. Also see Figures 6-6 - 6-28

1шт.

90-8402T91

GASKET KIT

KIT - gasket, Includes: Refs. 9 and 13. Also see Figures 6-6 - 6-12 and 6-30

1шт.

Выбрано товаров: 44
