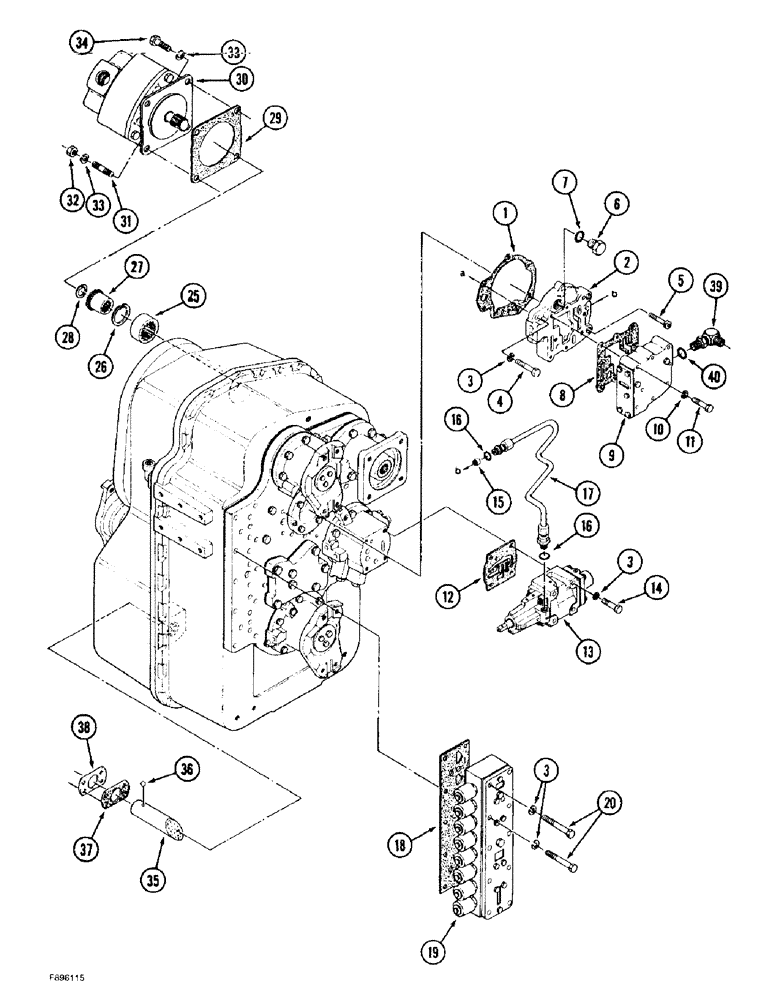

Запчасти Case IH 9350 (6-006) - POWER SHIFT TRANSMISSION ASSEMBLY, VALVES AND PUMP MOUNTING (06) - POWER TRAIN

90-8453T91

TRANSMISSION

ASSEMBLY - powershift, parts list Figures 6-6 - 6-34, replaces 90-7015T91 transmission, Includes: Ref. 1 - 40

1шт.

313686A1R

REMAN-TRANSMISSION

See Note: Extra Parts Needed When Replacing PN 90-8453T91 With This Reman

1шт.

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

1

S1160S01F

GASKET

- ditch plate

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

2

S1170S00F

LARGE PLATE

PLATE - ditch

1шт.

3

892-11010

LOCK WASHER,M10

17шт.

4

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

3шт.

If needing M10 x 1.25 pitch thread x 70mm length, order SM8124070.

1шт.

5

S1050S00F

SCREW

BOLT - socket head

3шт.

6

S1210S00F

PLUG

- hex, O-ring boss, Includes: Ref. 7

1шт.

7

S1200S00F

O-RING

- plug

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

8

S1150S02F

GASKET

- regulator valve

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

9

S7000S01F

VALVE

ASSEMBLY - regulator, parts list Figure 6-28

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

11

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex, 8 - 1.25 x 65 mm

8шт.

12

S1140S01F

GASKET

- clutch control

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

13

90-8201T91

VALVE

ASSEMBLY - clutch control, parts list Figure 6-26

1шт.

14

SM8124085

BOLT

BOLT - hex, 10 - 1.25 x 85 mm

4шт.

15

S1020S00F

FILTER

SCREEN - filter

1шт.

17

33-1558T1

TUBE

- clutch

1шт.

18

S1220S01F

GASKET

- range selector valve

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

19

33-1525T91

VALVE

ASSEMBLY - range selector, parts list Figure 6-34

1шт.

20

SM8124003

BOLT

BOLT - hex, 10 - 1.25 x 115 mm

10шт.

25

33-1452T1

COUPLING

- pump

1шт.

26

33-1445T1

RING, SNAP

RING - snap

1шт.

27

33-1516T1

ADAPTER

- pump drive, used on transmissions without PTO only, for adapter used on transmissions with PTO see Figure 6-138

1шт.

28

33-1446T1

RING, SNAP

RING - snap

1шт.

29

33-1469T2

GASKET

- pump

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2

1шт.

30

33-1524T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - transmission lubrication, parts list Figure 6-32

1шт.

33-1524T91R

REMAN-HYD PUMP

9350 (6/95-8/00)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

31

SM8267430

STUD

- mounting, 14 - 1.5 x 30 mm

2шт.

32

SM8911244

NUT

- hex, 14 mm - 1.5

2шт.

33

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.

34

SM8124440

BOLT

BOLT - hex, 14 - 1.5 x 40 mm

2шт.

35

S1520S00F

PIPE

TUBE - suction

1шт.

36

S14701960

BALL,3.968mm OD

- steel, tube retaining

1шт.

37

S1620S01F

GASKET

- suction tube

1шт.

Part of gasket kit P/N 90-8402T91

1шт.

38

S1700S00F

LARGE PLATE

PLATE - suction tube retainer

1шт.

39

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 40

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, includes: Refs. 7 and 29. Also see Figures 6-6 - 6-28

1шт.

90-8402T91

GASKET KIT

KIT - gasket, Includes: Refs. 1, 8, 12, 18 and 37. Also see Figures 6-6 - 6-12 and 6-30

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
