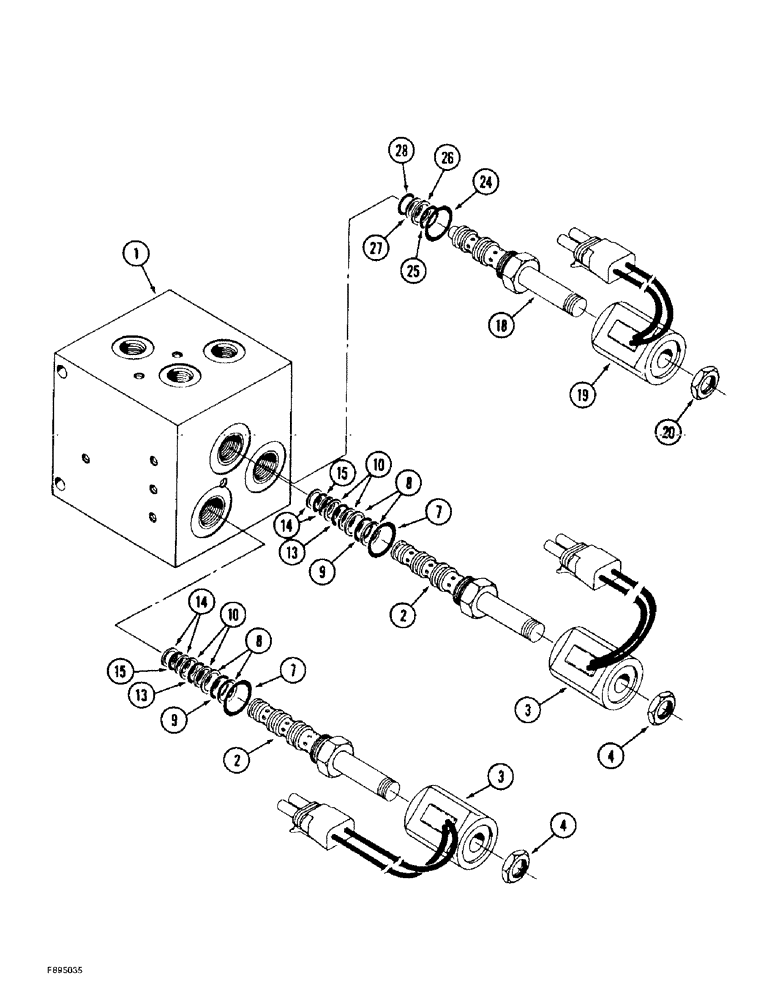

Запчасти Case IH 9350 (5-38) - MAKEUP VALVE ASSEMBLY, STEERABLE AXLE HYDRAULICS (05) - STEERING

50-3081T92

VALVE

ASSEMBLY - makeup, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - makeup valve

1шт.

33-1401T92

SOLENOID

CARTRIDGE ASSEMBLY - solenoid, Includes: Ref. 2 - 15

2шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - solenoid

2шт.

3

33-1405T1

SPINDLE

COIL - electrical

2шт.

4

329-148

NUT,Jam, 1/2"-13, G8

- hex, jam, 1/2 inch NC, grade 8

2шт.

33-1402T2

GASKET KIT

KIT - seal, cartridge, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 15/32 x 5/64 inch

2шт.

8

NSS

NOT SOLD SEPARAT

RING - back-up

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

10

NSS

NOT SOLD SEPARAT

RING - back-up

4шт.

13

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

14

NSS

NOT SOLD SEPARAT

RING - back-up

4шт.

15

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

33-1403T92

SOLENOID

CARTRIDGE ASSEMBLY - solenoid, Includes: Ref. 18 - 28

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE - solenoid

1шт.

19

33-1405T1

SPINDLE

COIL - electrical

1шт.

20

329-148

NUT,Jam, 1/2"-13, G8

- hex, jam, 1/2 inch NC, grade 8

1шт.

33-1404T2

GASKET KIT

KIT - seal, cartridge, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 15/32 x 5/64 inch

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

26

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

27

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.
