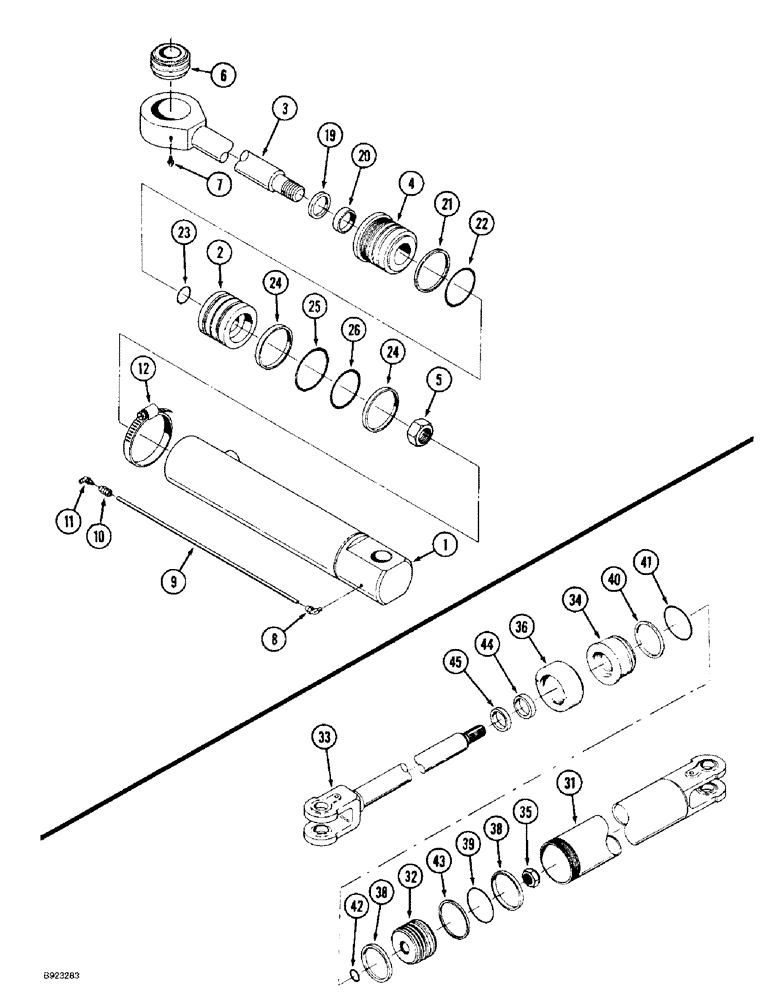

Запчасти Case IH 9350 (5-32) - STEERING CYL., STEERABLE FRONT AXLE CYLINDERS, PRIOR TO P.I.N. JEE0074300 (05) - STEERING

50-3272T94

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 26

1шт.

1

50-3273T4

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

50-3026T1

JACK PISTON

PISTON - cylinder

1шт.

3

50-3439T1

PISTON ROD

ROD - piston

1шт.

4

50-3336T1

CYLINDER END CAP

GUIDE - rod

1шт.

5

19-5578

LOCK NUT

- hex, self-locking

1шт.

6

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self-aligning

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

1шт.

8

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube OD

1шт.

9

50-3335T2

TUBE

- grease

1шт.

10

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube OD

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

12

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adj, 3-3/4 - 4-5/8 inch dia

1шт.

50-3420T1

SEAL KIT

KIT - seal, Includes: Ref. 19 - 26

1шт.

19

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

20

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

21

50-2299T1

SEAL,69.85mm ID x 76.2mm OD x 1.09mm Thk

- backup, seal

1шт.

22

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

23

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

24

2-1287

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 6.35mm Thk

RING - wear, piston

2шт.

25

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

26

2-1289

SEAL,71.02mm ID x 76.86mm OD x 2.92mm Thk

- piston

1шт.

50-3570T91

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, Articulation, Includes: Ref. 31 - 45 Articulation Cylinders, Start Serial: JEE0036501

1шт.

50-2292T94

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, Articulation, Includes: Ref. 31 - 45 Articulation Cylinders, Serial Range: -JEE0036501

1шт.

31

50-3568T1

HYD CYL SLEEVE

TUBE - cylinder Articulation Cylinders

1шт.

32

50-3026T1

JACK PISTON

PISTON - cylinder Articulation Cylinders

1шт.

33

50-3569T1

PISTON ROD

ROD - piston Articulation Cylinders

1шт.

34

50-2297T1

CYLINDER END CAP

GUIDE - rod Articulation Cylinders

1шт.

35

19-5578

LOCK NUT

- hex, self-locking Articulation Cylinders

1шт.

36

50-2298T1

CLAMP

COLLAR - locking, rod guide Articulation Cylinders

1шт.

35-1592T91

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 38 - 45 Articulation Cylinders

1шт.

38

2-1287

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 6.35mm Thk

RING - wear, piston Articulation Cylinders

2шт.

39

2-1289

SEAL,71.02mm ID x 76.86mm OD x 2.92mm Thk

- piston Articulation Cylinders

1шт.

40

50-2299T1

SEAL,69.85mm ID x 76.2mm OD x 1.09mm Thk

- backup, seal Articulation Cylinders

1шт.

41

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

Articulation Cylinders -145, 90 Duro, 2.55" ID x .103" Thk

1шт.

42

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Articulation cylinders -214, 70 Duro, .984" ID x .139" Thk

1шт.

43

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

Articulation cylinders -232, 70 Duro, 2.734" ID x .139" Thk

1шт.

44

50-3599T1

SEAL,44.45mm ID x 57.15mm OD x 9.53mm Thk

- rod Articulation Cylinders

1шт.

45

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod Articulation Cylinders

1шт.
