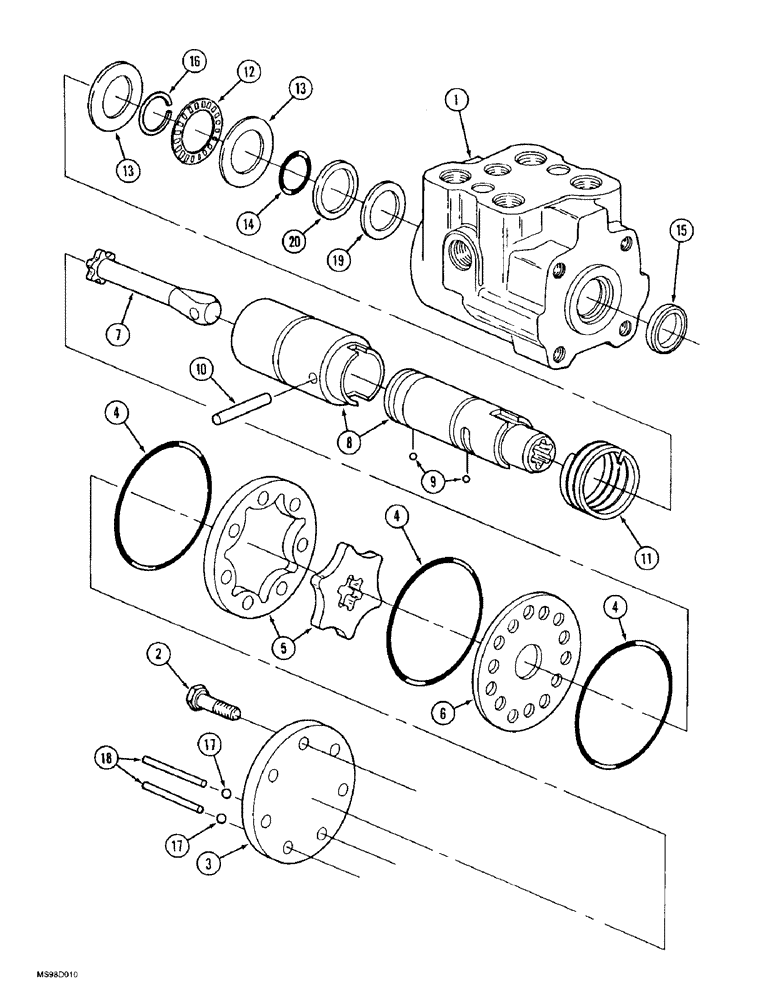

Запчасти Case IH 9350 (5-30) - STEERING CONTROL VALVE, P.I.N. JEE0071531 AND AFTER (05) - STEERING

50-3613T91

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 x 4.13 inches

7шт.

3

NSS

NOT SOLD SEPARAT

CAP - end, steering valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - cover and plate

3шт.

Part of seal kit P/N 298612A1

1шт.

5

NSS

NOT SOLD SEPARAT

GEROTOR - control valve, matched set

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - spacer

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

9

NSS

NOT SOLD SEPARAT

BALL - check

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - sleeve

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

14

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 298612A1

1шт.

15

18-137

OIL SEAL

- input

1шт.

Part of seal kit P/N 298612A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

17

NSS

NOT SOLD SEPARAT

BALL - check

2шт.

18

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.

19

50-2703T1

BACK-UP RING

RING - backup

1шт.

Part of seal kit P/N 298612A1

1шт.

20

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon

1шт.

Part of seal kit P/N 298612A1

1шт.

298612A1

SEAL KIT

- seal, Includes: Refs. 4, 14, 15, 19 and 20

1шт.
