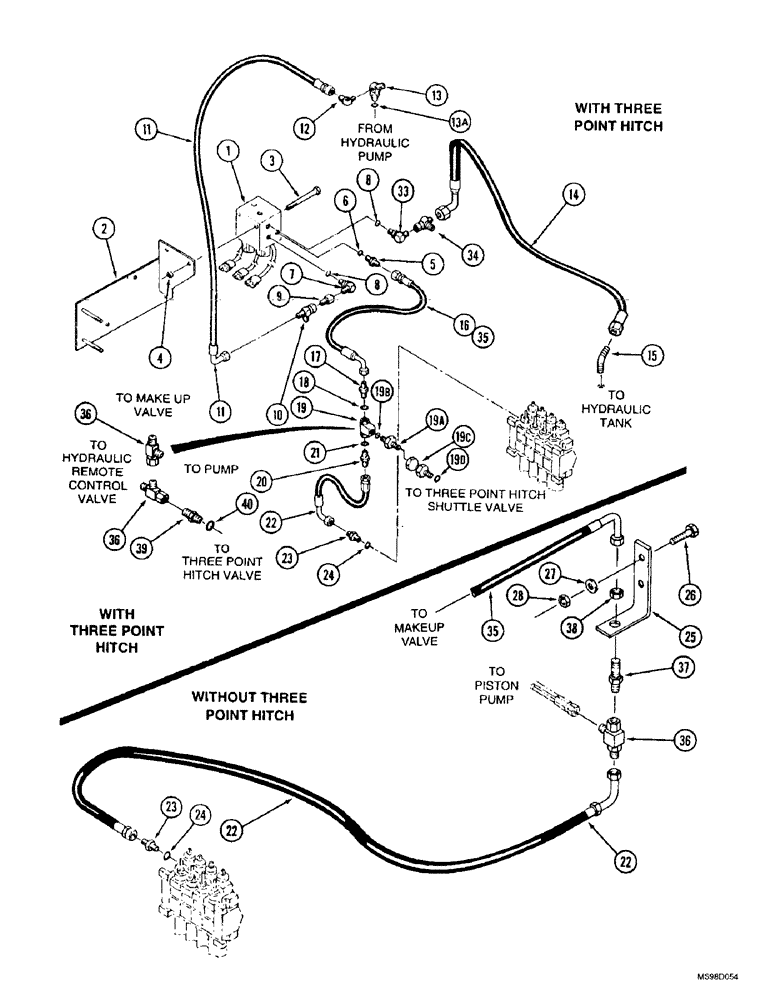

Запчасти Case IH 9350 (5-26) - STEERING SYS. HYD., ROW CROP SPECIAL TRAC., MAKEUP VALVE TO SHUTTLE VALVE & TANK RETURN, W/ OR W/OUT (05) - STEERING

1

50-3081T92

VALVE

ASSEMBLY - makeup, parts list Figure 5-38

1шт.

2

50-3536T1

SUPPORT

BRACKET - valve mounting, makeup valve

1шт.

3

426-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

- hex, 5/16 NC x 4 inch, grade 8

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

31-2543

ADAPTER

- orificed, .031 inch

1шт.

10

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

11

31-3056

HOSE

- 787 mm (30 inch) long, makeup valve to hydraulic pump elbow

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

13

31-2695

ELBOW

- 45 degree, adj, 1-5/16-12 O-ring x 1/8-27 inch flare PT, Includes: Ref. 13A

1шт.

13a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

14

31-3006

HOSE

- 2210 mm (87 inch) long, makeup valve to hydraulic tank

1шт.

15

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- 37 degree, 9/16-18 flare x 1/2 inch PT

1шт.

16

31-3039

HOSE

- 1778 mm (70 inch) long, makeup valve to shuttle valve, used with Ref. 17,19 and 20

1шт.

17

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, used with Ref. 16, 19 and 20, replaced by 50-3593T1 valve, Ref. 36, Incl. Ref. 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

19

31-1778

VALVE

- shuttle, if used, used with Ref. 16, 17 and 20

1шт.

19a

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT, Includes: Ref. 19B

1шт.

19b

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

19c

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - straight, 7/16-20 O-ring boss x 1/4 inch female swivel, Includes: Ref. 19D

1шт.

19d

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 21

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

22

31-3058

HOSE

- 508 mm (20 inch) long, shuttle valve to control valve, Serial Range: -JEE0069665

1шт.

22

31-3209

HOSE

- 678 mm (27 inch) long, shuttle valve to control valve, Start Serial: JEE0069665

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

60-4775T1

SUPPORT

BRACKET - mounting, clamp

1шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

32

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

33

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

34

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

35

31-3019

HOSE ASSY.

HOSE - 1676 mm (66 inch) long, shuttle valve to makeup valve

1шт.

36

50-3593T1

TEE

VALVE - shuttle, replaces 31-1778 adapter, Ref. 17

2шт.

37

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

38

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

39

218-5318

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 1/2-20 inch O-ring boss, Includes: Ref. 40

1шт.

40

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
