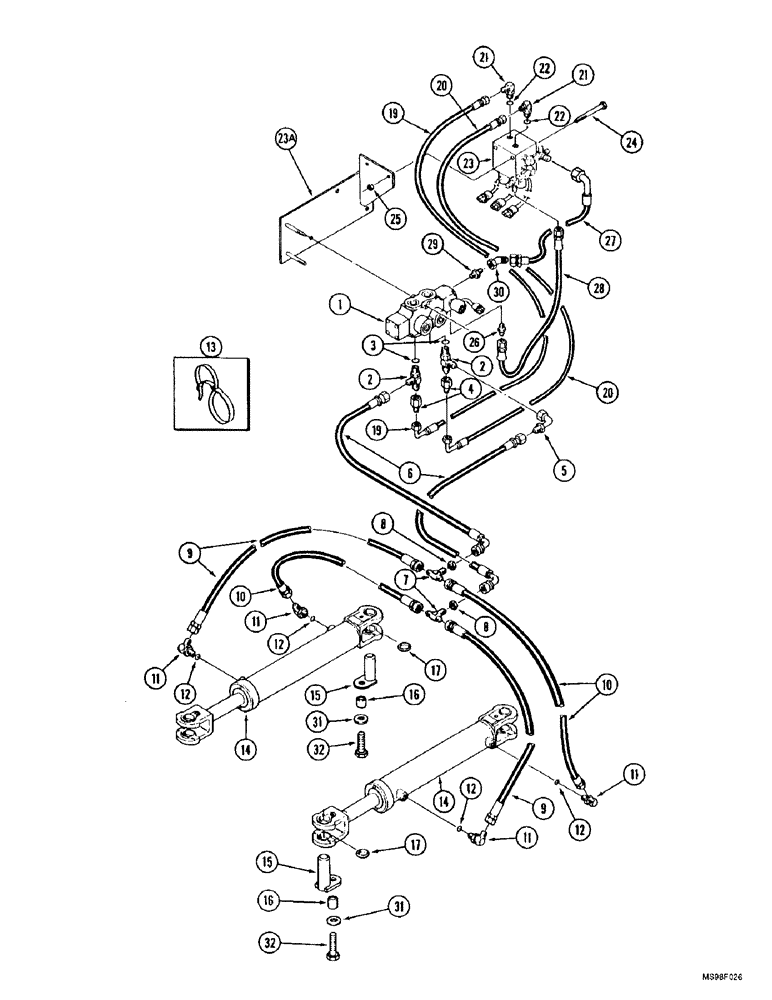

Запчасти Case IH 9350 (5-24) - STEERING SYS. HYD., ROW CROP SPECIAL TRACTORS, SELECTOR VALVE TO ARTICULATION CYL(S). & MAKEUP VALVE (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
50-3234T92
VALVE
ASSEMBLY - double selector, parts list Figure 5-36
1шт.
2
218-5242
TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 3
2шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
218-764
REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male
ADAPTER - reducing, 3/4-16 inch straight female x 7/16-20 inch flare
2шт.
5
31-331
ADAPTER,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem
ELBOW - 90 degree, special
1шт.
6
31-1276
HOSE
- 1118 mm (44 inch) long, selector valve to bulkhead tee
2шт.
7
218-805
TEE,3/4"-16, 37 Degree, Blkhd
- 3/4-16 inch bulkhead flare branch x flare x flare
2шт.
8
218-1255
BHD LOCK NUT,Blkhd, 3/4"-16
NUT, LOCK, Blkhd, 3/4"-16
2шт.
9
18-544
HOSE
- 991 mm (39 inch) long, tee to steering cylinder
2шт.
10
178790H1
HOSE
- 737 mm (29 inch) long, tee to steering cylinder
2шт.
11
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 12
4шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
13
D147773
CLAMP
STRAP - tie, hose retaining
2шт.
14
50-3634T91
CYLINDER
ASSEMBLY - steering, Serial Range: JCB0003600-JEE0036501
2шт.
When replacing the entire cylinder 50-2292T94, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order (1) 50-3634T91 cylinder assembly, which includes (1) 50-3570T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.
1шт.
14
50-2292T94
CYLINDER ASSY.
CYLINDER ASSEMBLY - steering, Serial Range: -JEE0036501
2шт.
14
50-3570T91
STEERING CYLINDER
CYLINDER ASSEMBLY - steering, parts list Figure 5-30, Start Serial: JEE0036501
2шт.
15
70-6793T1
PIN,38.02mm OD x 95.5mm L
- retainer, steering cylinder, Start Serial: JEE0036501
4шт.
15
50-1086T1
PIN
- retainer, steering cylinder, Serial Range: -JEE0036501
4шт.
16
70-5967T1
SPACER,16.7mm ID x 22.2mm OD x 11.2mm
- pin
4шт.
17
2-3223T1
SPACER
- cylinder mounting
8шт.
19
31-2809
HOSE
- 610 mm (24 inch) long, selector valve rear port to makeup valve
1шт.
20
31-1224
HOSE
- 559 mm (22 inch) long, selector valve front port to makeup valve
1шт.
21
218-5283
ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring
- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 22
2шт.
23
50-3081T92
VALVE
ASSEMBLY - makeup, parts list Figure 5-38
1шт.
23a
50-3536T1
SUPPORT
BRACKET - valve mounting
1шт.
24
426-560
BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8
- hex, 5/16 NC x 3-3/4 inch, grade 8
2шт.
25
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
26
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
ADAPTER - straight, 7/16-20 flare x 1/8 inch PT
1шт.
27
31-1799
HOSE
- 457 mm (18 inch) long, selector valve external drain
1шт.
28
31-1231
HOSE ASSY.,152.4 mm ID, 762 mm Length
HOSE - 457 mm (18 inch) long, selector valve pilot port
1шт.
29
218-453
HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF
CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF
1шт.
30
218-5172
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC
- 45 degree, 9/16-18 inch flare x swivel
1шт.
31
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Serial Range: -JEE0036501
4шт.
31
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, Start Serial: JEE0036501
4шт.
32
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex, 3/8 NC x 2-1/2 inch, Serial Range: -JEE0036501
4шт.
32
426-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 8
- hex, 5/8 NC x 1 inch, grade 8, Start Serial: JEE0036501
4шт.
22
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 38
