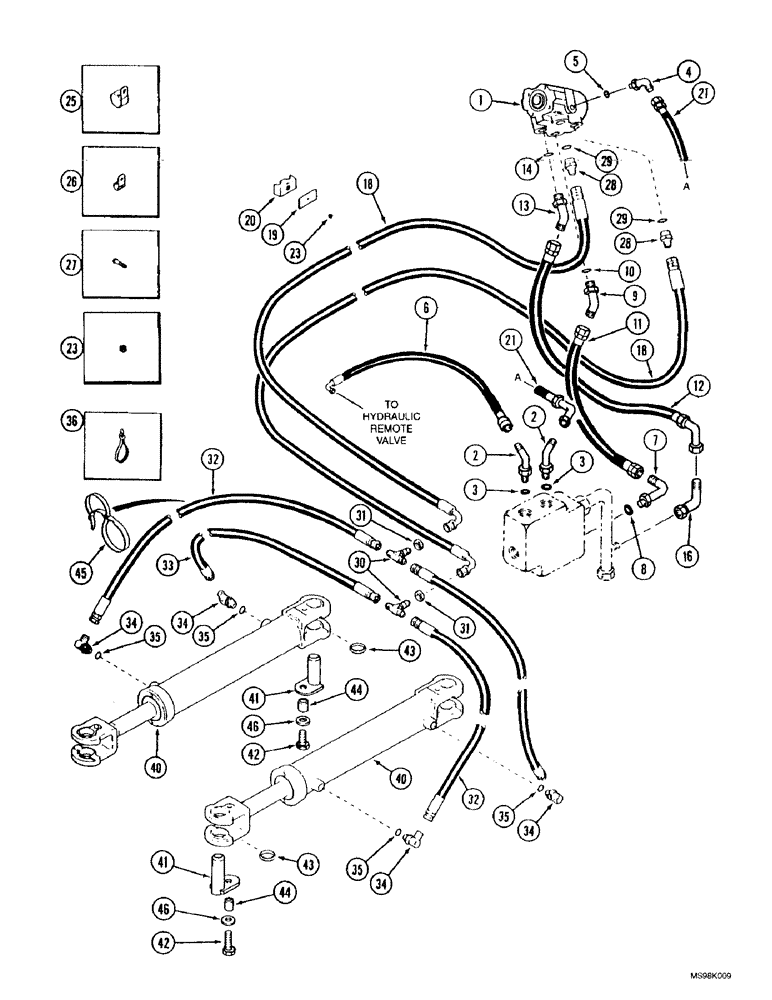

Запчасти Case IH 9350 (5-14) - STEERING HYD., HIGH OUTPUT OPTION, STEERING CTRL. VALVE TO CYL., 9350 TRAC EXCEPT ROW CROP SPECIAL (05) - STEERING

1

50-3613T91

VALVE

ASSEMBLY - control, steering, parts list Figure 5-30, Start Serial: JEE0071531

1шт.

2

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

218-5527

ELBOW,45 Degree, 1 1/16"-12 x 3/4"-16, 37 Degree

45º, 1-1/16-12 flare x 3/4-16 inch adj O-ring, Incl. Ref 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

31-3039

HOSE

- 1778 mm (70 inch) long, valve to control valve

1шт.

7

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

218-5527

ELBOW,45 Degree, 1 1/16"-12 x 3/4"-16, 37 Degree

45º, 1-1/16-12 flare x 3/4-16 inch adj O-ring, Incl. Ref 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

31-2814

HOSE

- 711 mm (28 inch) long, control valve

1шт.

12

31-3026

HOSE

- 864 mm (34 inch) long, hydraulic, drain

1шт.

13

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 7/8-14 flare x 3/4-16 inch adj O-ring, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

218-5377

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 7/8-14 flare x 1-1/16-12 inch swivel

1шт.

18

31-3011

HOSE

- 3099 mm (122 inch) long, Serial Range: valve-cylinder

2шт.

19

50-2533T1

PLATE

- clamp support

1шт.

20

50-2551T1

CLAMP

- hose, split, includes both halves

1шт.

21

31-1041

HOSE,19.05mm ID x 838mm L

- 838 mm (33 inch) long

1шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Retaining 1 1/2", Insul, 3/8" Bolt

1шт.

26

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Hose retaining, if used 3/4", Insul, 3/8" Bolt

1шт.

27

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, grade 8

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

30

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

2шт.

31

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

32

18-544

HOSE

- 991 mm (39 inch) long, tee to steering cylinder

2шт.

33

178790H1

HOSE

- 737 mm (29 inch) long, hydraulic, tee to steering cylinder

2шт.

34

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 35

4шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

50-2037T1

STRAP

- tie, nylon, 20 inch long

1шт.

36

19-135

CABLE TIE

STRAP - tie, nylon, 13 inch long

3шт.

40

50-3570T91

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-32, Start Serial: JEE0036501

2шт.

40

50-2292T94

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, Serial Range: -JCB0003600

2шт.

When replacing the entire 50-2292T94 cylinder assembly, Ref. 40, on units built between P.I.N. JCB0003600 to JEE0036501, order 50-3634T91 cylinder assembly, which includes (1) 50-3570T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

40

50-3634T91

CYLINDER

ASSEMBLY - steering, Serial Range: JCB0003600-JEE0036501

2шт.

When replacing the entire 50-2292T94 cylinder assembly, Ref. 40, on units built between P.I.N. JCB0003600 to JEE0036501, order 50-3634T91 cylinder assembly, which includes (1) 50-3570T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

41

70-6793T1

PIN,38.02mm OD x 95.5mm L

- retainer, steering cylinder, Start Serial: JEE0036501

4шт.

41

50-1086T1

PIN

- retainer, steering cylinder, Serial Range: -JEE0036501

4шт.

42

426-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 8

- hex, 5/8 NC x 1 inch, grade 8, Start Serial: JEE0036501

4шт.

42

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, Serial Range: -JEE0036501

4шт.

43

2-3223T1

SPACER

- cylinder mounting

8шт.

44

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin, Start Serial: JEE0036501

4шт.

44

50-3436T1

SPACER

- mounting, Serial Range: -JEE0036501

4шт.

45

D147773

CLAMP

STRAP - tie, double hose

2шт.

46

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, Start Serial: JEE0036501

4шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Serial Range: -JEE0036501

4шт.
