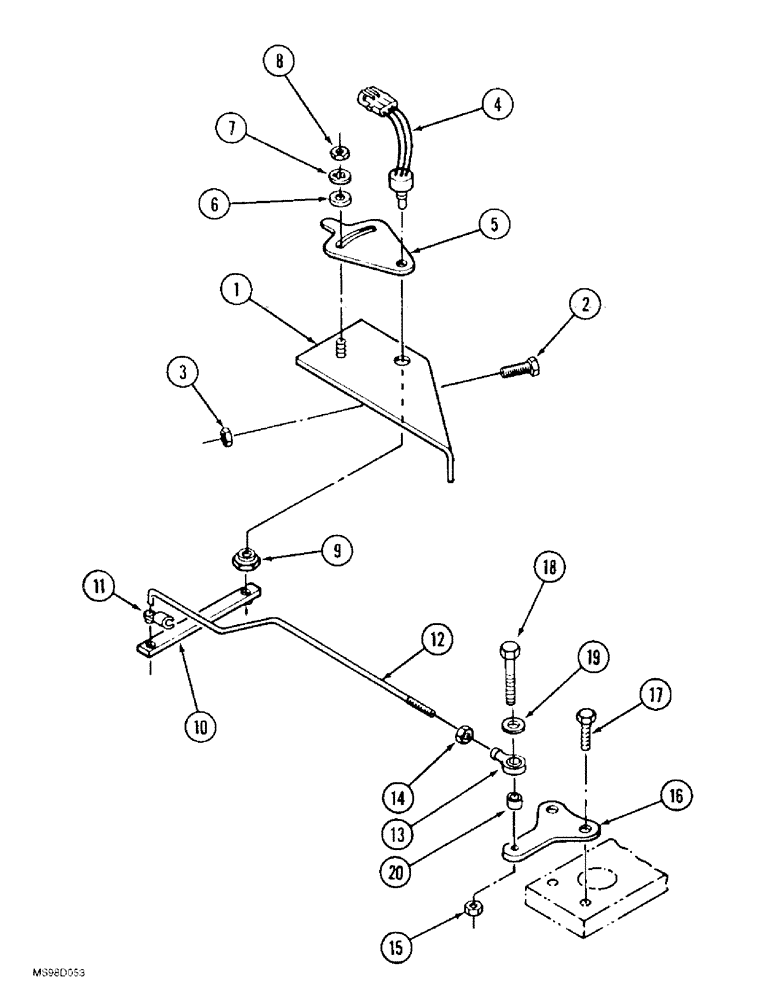

Запчасти Case IH 9350 (4-86) - STEERABLE AXLE CONTROLS, ARTICULATION POTENTIOMETER (04) - ELECTRICAL SYSTEMS

1

70-6761T2

BRACKET

Mounting, Potentiometer

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

4

60-7129T2

POTENTIOMETER,1000 Ohm

Electricall 1000 Ohm

1шт.

5

60-7131T1

LARGE PLATE

PLATE, Bracket, Adjusting, Potentiometer

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

7

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

9

60-7133T1

NUT

Special, Potentiometer

1шт.

10

70-4678T1

LEVER

Potentiometer, Actuating

1шт.

11

60-2404T1

RETAINER

- actuating rod

1шт.

12

70-6505T1

STEM

Rod, actuating, Potentiometer Lever

1шт.

13

H433283

BALL JOINT

JOINT - ball

1шт.

14

225-14210

NUT,#10-32

1шт.

15

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

16

70-6087T1

SUPPORT

BRACKET - mounting, ball joint

1шт.

17

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

18

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

1шт.

19

495-31022

WASHER,#10

1шт.

20

90-7749T1

SPACER

Potentiometer

1шт.
