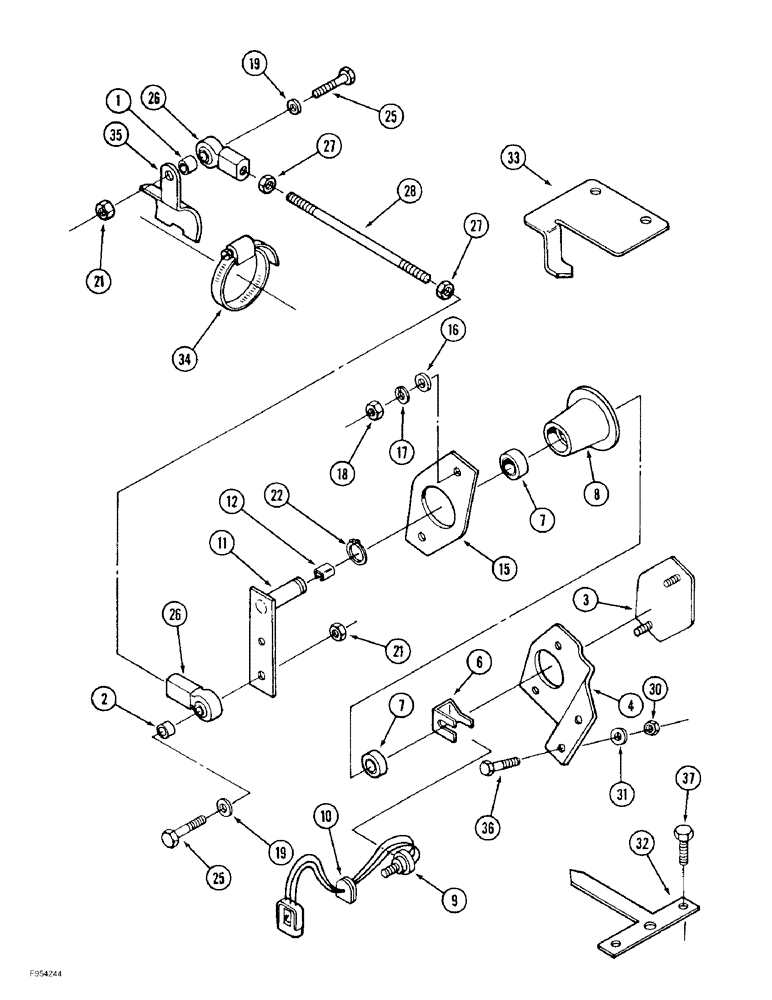

Запчасти Case IH 9350 (4-84) - STEERABLE AXLE CONTROLS, AXLE POTENTIOMETER (04) - ELECTRICAL SYSTEMS

60-7122T91

HOUSING ASSY.

HOUSING ASSEMBLY, Potentiometer, Includes: Ref. 1 - 28

1шт.

1

90-7749T1

SPACER

Ball Joint

2шт.

3

60-6185T1

LARGE PLATE

PLATE - mounting, housing

1шт.

4

60-7104T1

LARGE PLATE

PLATE - mounting

1шт.

6

60-7105T1

SUPPORT

Mount, Potentiometer

1шт.

7

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

8

60-6167T3

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

9

60-7129T2

POTENTIOMETER,1000 Ohm

Electrical 1000 Ohm

1шт.

10

31-2475

GROMMET

- wire

1шт.

15

60-6169T2

RETAINER

Housing

1шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

17

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

2шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

19

495-31022

WASHER,#10

2шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

22

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

25

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

2шт.

26

H433283

BALL JOINT

JOINT - ball

2шт.

27

225-14210

NUT,#10-32

2шт.

28

60-6312T1

STEM

ROD - actuating

1шт.

30

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

31

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

32

60-7102T1

SUPPORT

POINTER - steering position, at axle

1шт.

33

60-7101T1

SUPPORT

POINTER - steering position, at sensor cover

1шт.

34

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

CLAMP - adj, 2-1/4 - 3-1/8 inch dia

1шт.

35

60-7100T1

SUPPORT

BRACKET - tie rod

1шт.

36

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

37

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.
