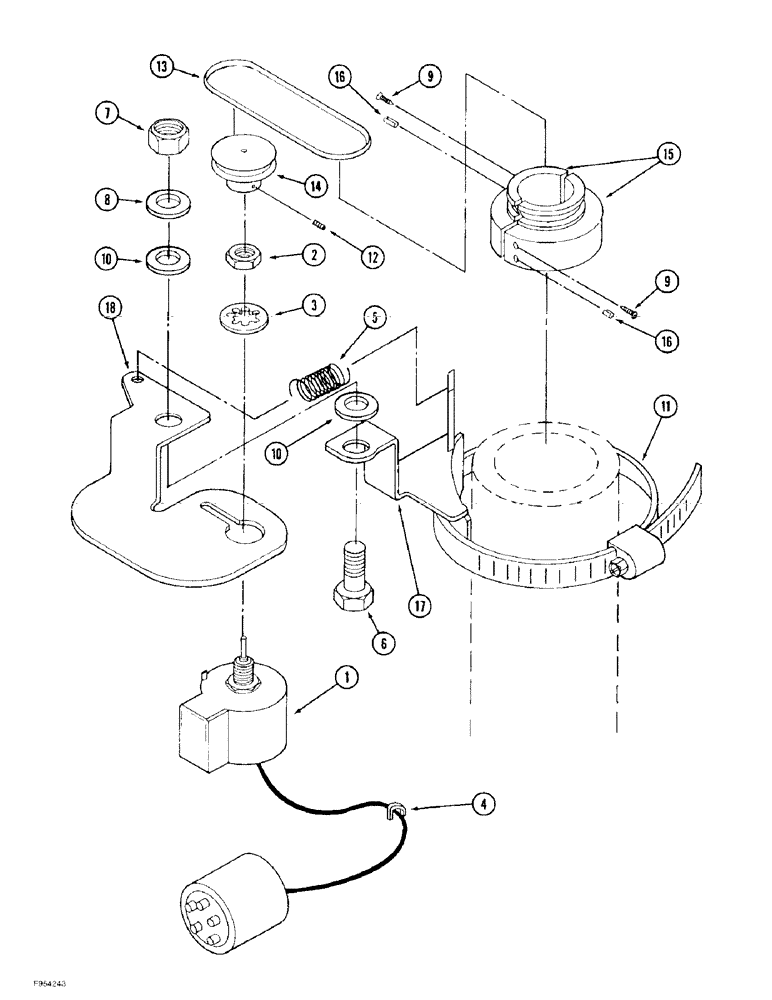

Запчасти Case IH 9350 (4-82) - ENCODER ASSEMBLY (04) - ELECTRICAL SYSTEMS

60-7125T91

TRANSMITTER

ENCODER ASSEMBLY - steerable axle, Includes: Ref. 1 - 18

1шт.

1

60-7128T1

TRANSMITTER

ENCODER - steerable axle, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - encoder

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - encoder

1шт.

4

31-2475

GROMMET

- protective

1шт.

5

A163012

SPRING

- encoder

1шт.

6

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - self-tapping, hex washer head, No. 8-18 x 5/8 inch

2шт.

10

19-6046

WASHER

- flat, 5/16 x 5/8 x 1/8 inch

2шт.

11

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

1шт.

12

83-1064

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - set, hex socket headless, No. 6 NC x 1/4 inch, cup point

1шт.

13

60-7115T1

BELT

- encoder

1шт.

14

60-7114T1

PULLEY

PULLY - encoder

1шт.

15

60-7124T1

PULLEY

PULLY - split

2шт.

16

38-1612

LOCK PIN,3/32" x 3/4", Slotted

Pin, 3/32" x 3/4", Slotted

2шт.

17

60-7120T1

SUPPORT

MOUNT - encoder

1шт.

18

60-7117T1

SUPPORT

BRACKET - encoder

1шт.
