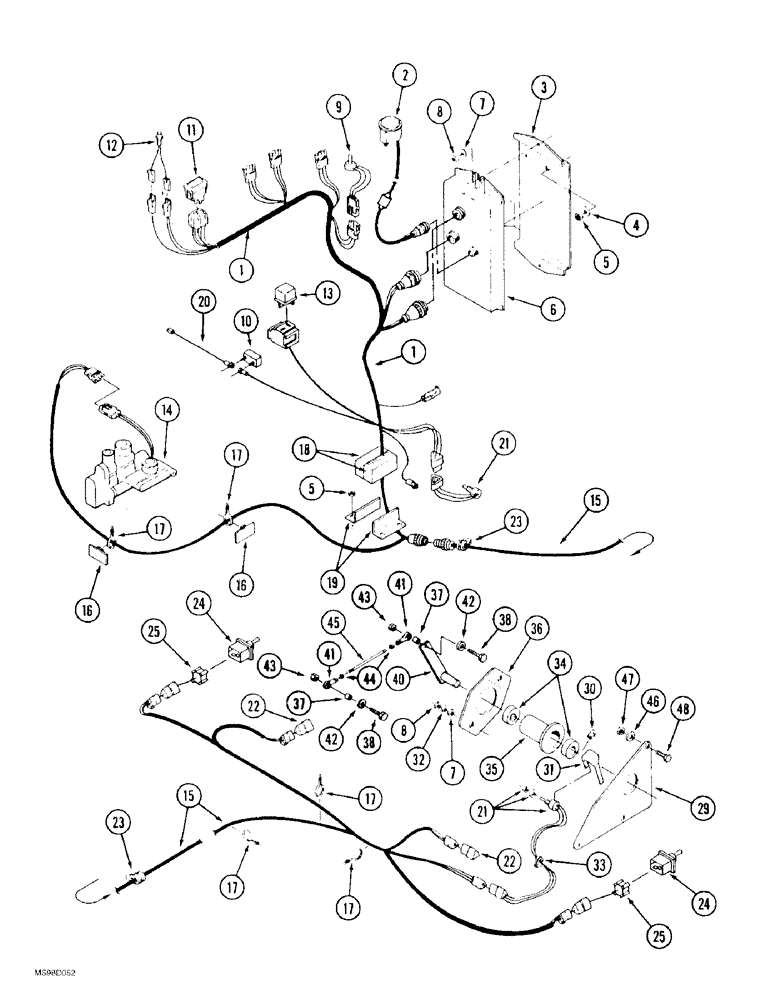

Запчасти Case IH 9350 (4-72) - THREE POINT HITCH HARNESSES, PRIOR TO P.I.N. JEE0069665 (04) - ELECTRICAL SYSTEMS

1

60-7000T2

HARNESS

- electronic depth control

1шт.

2

60-7222T1

GAUGE ASSY.

GAUGE - display, seven segment, replaces 60-7015T1 gauge

1шт.

3

60-6120T1

LARGE PLATE

PLATE - mounting, controller

1шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

6

232836A3

CONTROL

LER - three point hitch, electronic, replaces 60-7014T1 controller

1шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

9

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical 10,000 Ohm, 8V

1шт.

10

22-809

BREAKER

- circuit, 5 ampere

1шт.

11

60-7018T1

IGNITION SWITCH

SWITCH - rocker, hitch actuating, replaces 1964753C1

1шт.

12

1964672C1

LIGHT

- indicator, amber, 14 volt

1шт.

13

1983394C2

RELAY

- mini, 12 volt, three point hitch

1шт.

14

50-3321T91

VALVE

ASSEMBLY - control, three point hitch, parts list Figure 8-48

1шт.

15

60-6999T2

HARNESS

- rear frame

1шт.

16

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

18

60-6066T1

FOAM

SEAL - foam

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

20

60-7037T1

HARNESS

CABLE - power

1шт.

21

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Raise and Lower 1000 Ohm, 8V

2шт.

22

60-6317T1

CONNECTOR, ELEC

PLUG - connector

2шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

60-7019T1

IGNITION SWITCH

SWITCH ASSEMBLY - toggle, no longer available, order component parts separately, Includes: Ref. 24 and 25

2шт.

24

60-7039T1

IGNITION SWITCH

SWITCH - toggle

1шт.

25

60-7167T1

HARNESS

- switch, three point hitch

1шт.

60-7011T91

HOUSING ASSY.

Potentiometer, Includes: Ref. 29 - 45

1шт.

29

60-6189T1

LARGE PLATE

PLATE - mounting

1шт.

30

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

31

60-6186T1

SUPPORT

Mount, Potentiometer

1шт.

32

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

2шт.

33

31-2475

GROMMET

- wire protection

1шт.

34

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

35

60-6167T3

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

36

60-6169T2

RETAINER

Housing

1шт.

37

90-7749T1

SPACER

Actuator Rod

2шт.

38

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

2шт.

40

60-6179T1

LEVER

- actuating, replaces 60-7159T1 lever

1шт.

41

H433283

BALL JOINT

JOINT - ball

2шт.

42

495-31022

WASHER,#10

2шт.

43

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

44

225-14210

NUT,#10-32

2шт.

45

60-6175T1

TRUSS ROD

ROD - actuating

1шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

47

425-106

NUT,3/8"-16, Cl 5

3шт.

48

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.
