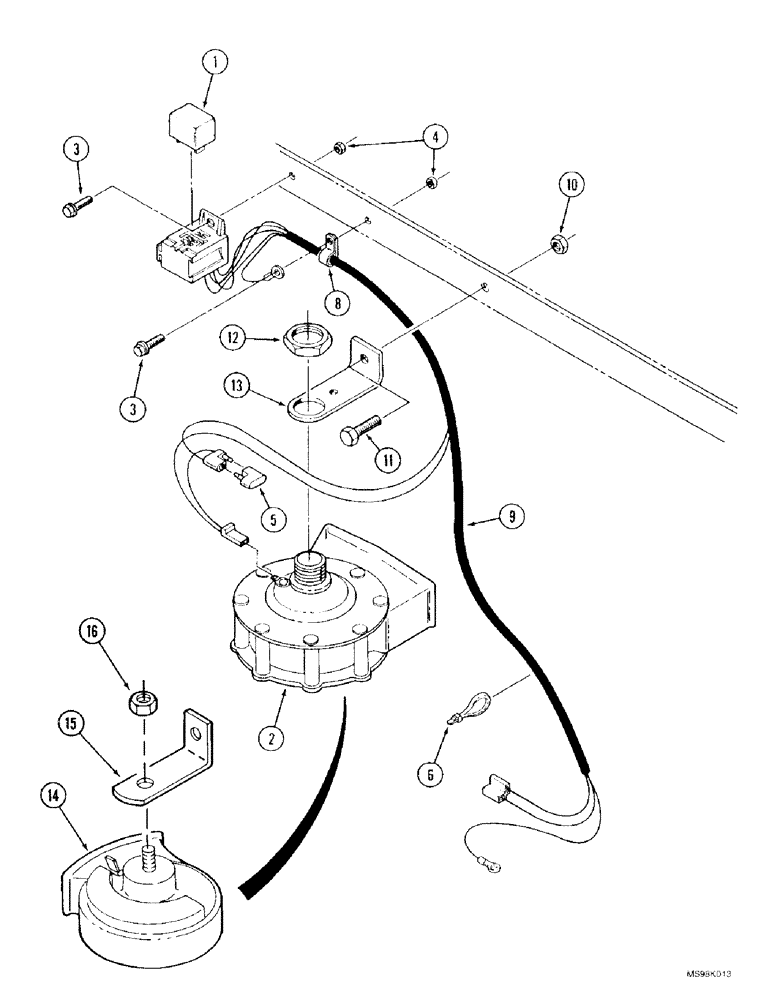

Запчасти Case IH 9350 (4-70) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

1983394C2

RELAY

- mini, 12 volt, sealed

1шт.

Part of horn kit P/N 35-1752T92

1шт.

2

R45962

HORN

- "F" Note, 12 volt, warning, replaced by 60-7242T1 horn

1шт.

3

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, hex slotted washer head, No. 10 NC x 3/4 inch

2шт.

Part of horn kit P/N 35-1752T92

1шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, Keps

2шт.

Part of horn kit P/N 35-1752T92

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

Part of horn kit P/N 35-1752T92

1шт.

8

32-69

CLAMP

- harness

1шт.

9

60-7241T1

HARNESS

- horn, replaces 60-6290T1 harness

1шт.

Part of horn kit P/N 35-1752T92

1шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

Part of horn kit P/N 35-1752T92

1шт.

11

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

Part of horn kit P/N 35-1752T92

1шт.

12

L30866

LOCK NUT

- hex, special

1шт.

13

L73799

BRACKET

- mounting, horn

1шт.

14

60-7242T1

HORN

- 12 volt, warning, replaces R45962 horn, Includes: Ref. 15 and 16

1шт.

Part of horn kit P/N 35-1752T92

1шт.

15

NSS

NOT SOLD SEPARAT

BRACKET - mounting, horn

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - hex, special

1шт.

35-1752T92

HORN

KIT - horn, Includes: Refs. 1, 3, 4, 6, 9-11, 14 and (1) 22-738 diode, (1) 282-44712 screw, (1) 515-2395 clamp and (1) 495-11028 washer, not shown

1шт.
