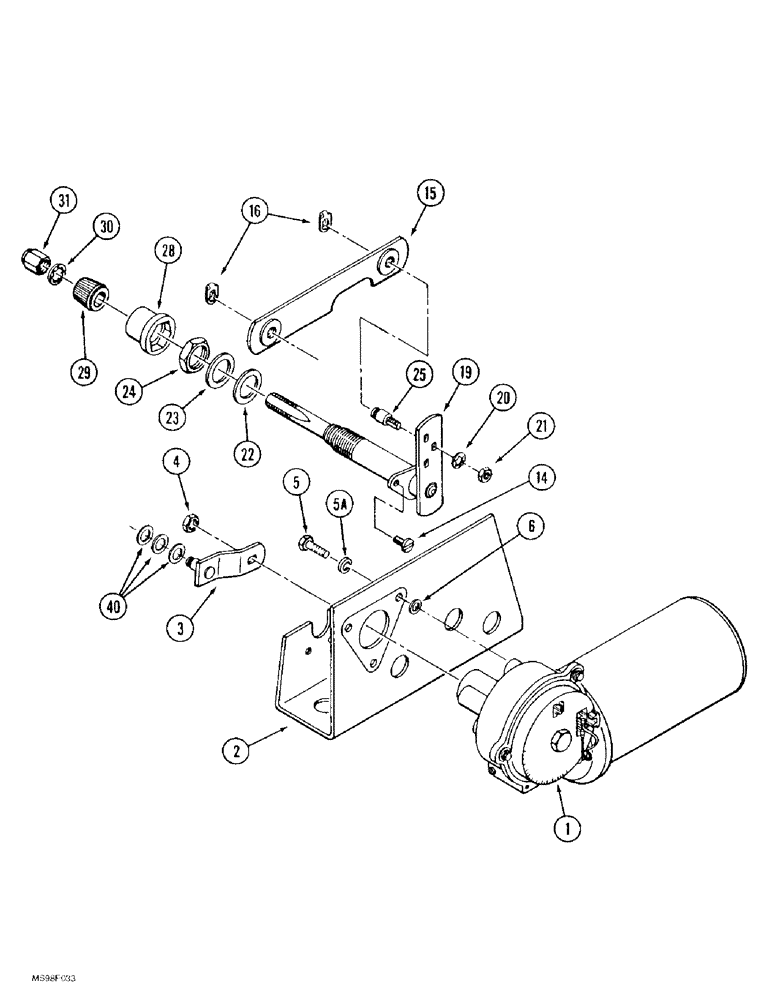

Запчасти Case IH 9350 (4-64) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS (04) - ELECTRICAL SYSTEMS

60-6577T91

DRIVE

ASSEMBLY - wiper, no longer available, order component parts separately, Includes: Ref. 1 - 40

1шт.

1

60-6586T2

MOTOR - wiper drive

1шт.

2

D72850

BRACKET

- mounting, replaces 60-6633T1 bracket

1шт.

3

60-7187T1

LEVER

- drive, replaces 60-6626T1 lever

1шт.

4

143267A1

LOCK NUT

- special, retaining, replaces 60-6632T1 nut

1шт.

5

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch, replaces 60-6631T1 bolt

3шт.

5a

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

495-81102

WASHER,.266" x 1/2" x .060"

- flat, 17/64 x 1/2 x 3/64 inch

3шт.

14

2-6870T1

SCREW

- machine, pan head, special

1шт.

15

D71427

LINK,85.85mm L

- connecting

1шт.

16

D71414

CLIP

RETAINER - spring clip

2шт.

2-6869T91

SHAFT ASSY.

DRIVE ASSEMBLY - shaft and pivot arm, Includes: Ref. 19 - 31

1шт.

19

NSS

NOT SOLD SEPARAT

SHAFT - wiper drive

1шт.

20

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

1шт.

21

425-114

NUT,1/4"-28, G5

1шт.

22

D71417

SPECIAL WASHER

WASHER - special, flat

1шт.

23

N6750

WASHER

- flat

1шт.

24

60-3497T1

NUT

- hex, jam

1шт.

25

NSS

NOT SOLD SEPARAT

ARM - pivot

1шт.

28

D71420

CAP

- shaft, rubber

1шт.

29

1267556C1

BUTTON

NUT - knurled drive

1шт.

30

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

1шт.

31

60-6635T1

NUT

- special

1шт.

40

A22431

WASHER

- special, quantity of 1 if equipped with side wiper

3шт.
