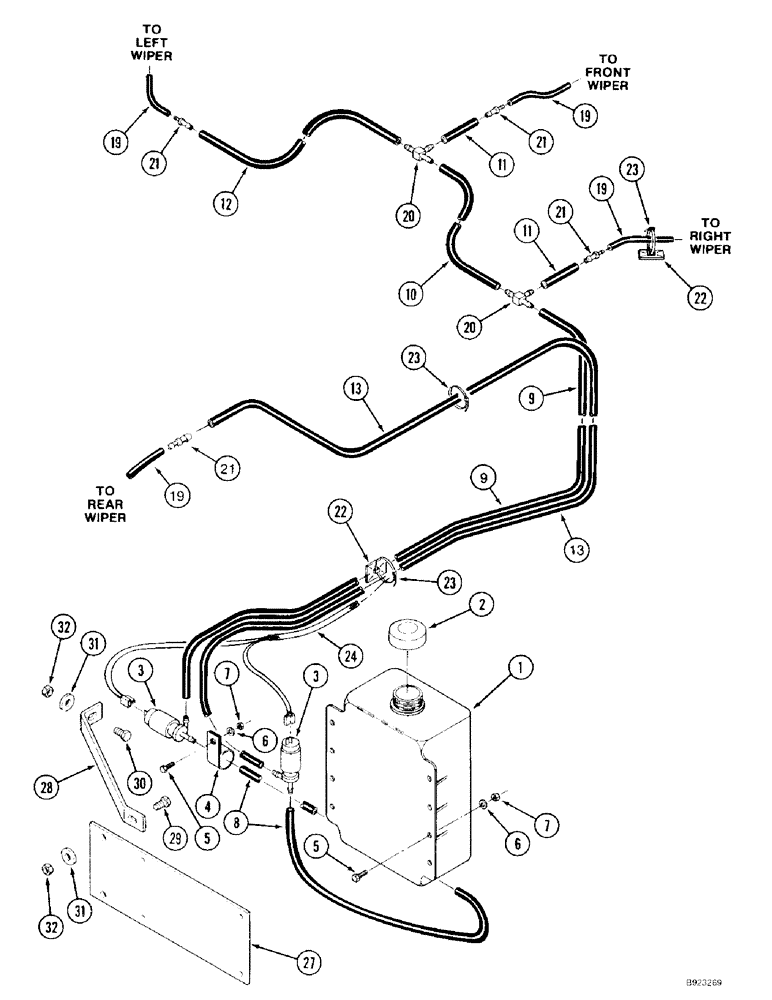

Запчасти Case IH 9350 (4-62) - WINDOW WASHERS, IF EQUIPPED (04) - ELECTRICAL SYSTEMS

35-1926T91

KIT - wiper, side and rear window with washer, order from Machinery Price List, Includes: Ref. 1 - 24

1шт.

Wiper kit also includes the parts shown on Figures 4-58 and 4-60.

1шт.

1

60-6524T1

RESERVOIR

TANK ASSEMBLY - washer fluid, Includes: Ref. 2

1шт.

2

60-4241T1

FILLER CAP

CAP - tank

1шт.

3

60-3183T1

PUMP, WATER

PUMP - washer fluid

2шт.

4

31-2361

MOUNTING CLIP

CLAMP - P-type, pump

1шт.

5

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

5шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

5шт.

8

31-2422

HOSE,4.77 mm ID x 254.00 mm

; Order 4-1056, and Cut to Required Length; See Below 4.77 mm ID x 254.00 mm

2шт.

9

31-2370

HOSE,4.7752 mm ID x 3302.00 mm

Order 4-1056, Bulk Hose, and Cut to Required Length; See Below 4.7752 mm ID x 3302.00 mm

1шт.

10

31-2866

HOSE,4.77 mm ID x 609.60 mm

; Order 4-1056, and Cut to required Length; See Below 4.77 mm ID x 609.60 mm

1шт.

11

31-2367

HOSE

- 51 mm (2 inch) long, cut from 4-1056 bulk hose, see below

2шт.

12

31-2867

HOSE,4.77 mm ID x 304.80 mm

; Order 4-1056, and Cut to Required Length; See Below 4.77 mm ID x 304.80 mm

1шт.

13

31-2936

HOSE,4.77 mm ID x 4775.20 mm

; Order 4-1056, and Cut to Required Length; See Below 4.77 mm ID x 4775.20 mm

1шт.

19

31-2608

TUBE,10.00"

HOSE, ; Order 31-2607T1, and Cut to Required Length; See Below 10.00"

4шт.

20

31-2363

TEE

- nylon, 3/16 inch

2шт.

21

31-2364

FITTING

CONNECTOR - nylon, 3/16 x 7/64 inch

4шт.

22

22-823

MOUNT

MOUNT - adhesive back, strap

3шт.

23

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

24

60-7076T1

HARNESS

- front frame

1шт.

27

70-6339T1

COVER

PLATE - washer reservoir mounting

1шт.

28

70-6332T2

SUPPORT

BRACE - washer

1шт.

29

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

30

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

31

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

5шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

4-1056

HOSE

- bulk, 5 (3/16) ID x 6096 mm (240 inch) long

1шт.

31-2607

HOSE,0.11" ID

1шт.
