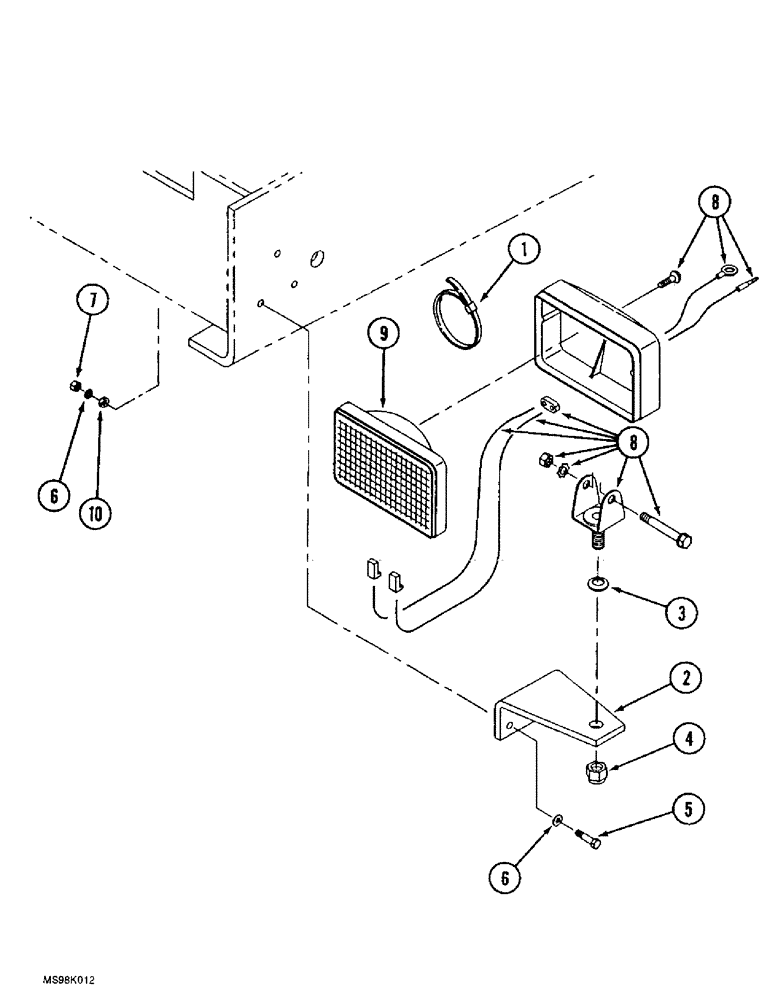

Запчасти Case IH 9350 (4-52) - FRONT FRAME WORK LAMPS (04) - ELECTRICAL SYSTEMS

35-1961T91

LIGHT ASSY.

KIT - front frame work lamps, no longer available, order component parts separately, Includes: Ref. 1 - 10

1шт.

1

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

2

60-4336T1

SUPPORT

BRACKET - mounting, cab to flood lamp

2шт.

3

D37049

WASHER

- lock, 1/2 inch

2шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

5

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

4шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

8шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - work, replaces 20-1730T92 lamp, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

9

20-1822T1

LAMP BASE

LENS - sealed beam

1шт.

10

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.
